Detailed Specifications

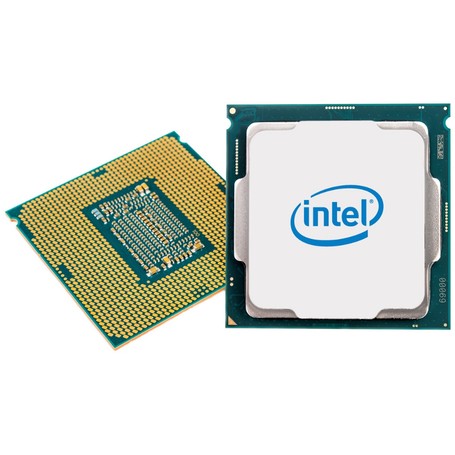

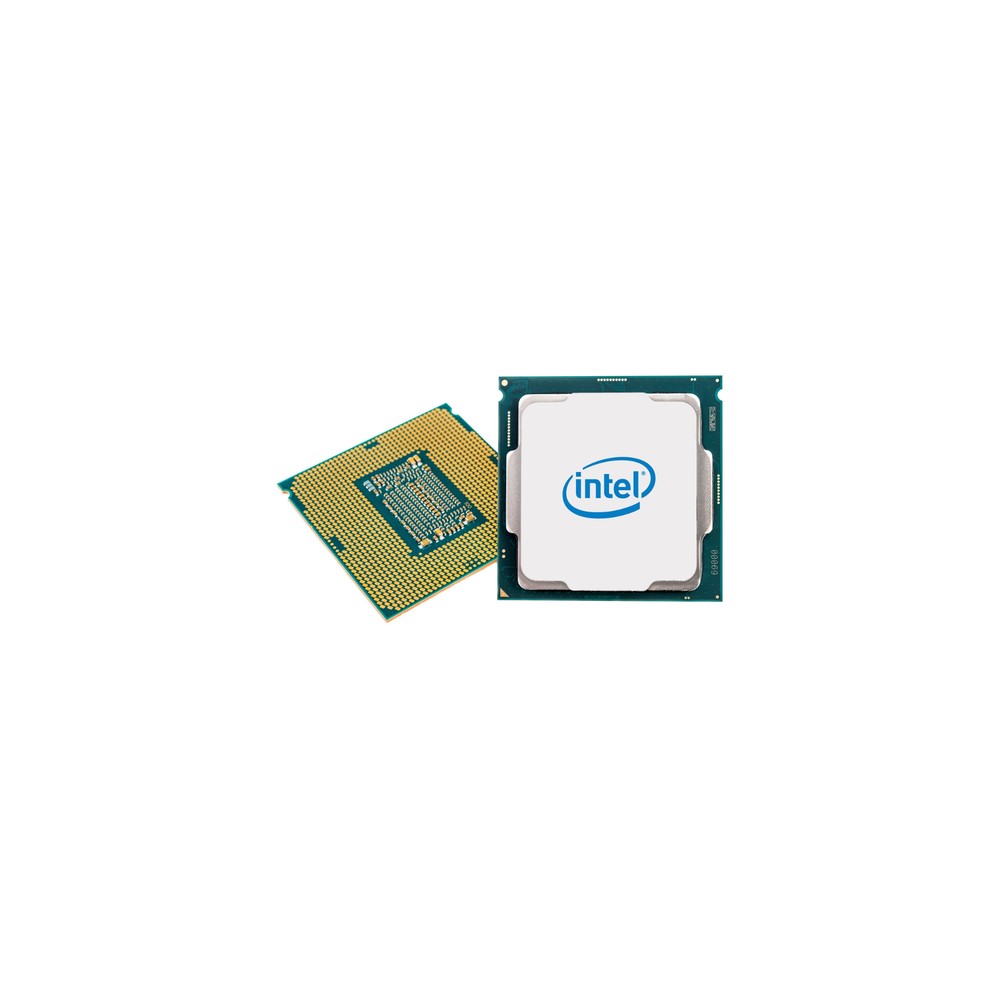

Intel SRH78 Desktop Processor
Overview :
The Intel SRH78 is the specific production-specification code (S-Spec) for the Q0 stepping of the 10th Generation Intel Core i5-10400 desktop processor. Engineered for large-scale enterprise workstation deployments, main-line corporate fleets, and standard retail client computing systems, this processor handles daily multitasking requirements reliably. It provides hardware integration groups and corporate procurement specialists with a predictable, cost-controlled engine built for commercial workspace layouts.
Fabricated on a refined 14nm lithography path using the Comet Lake-S microarchitecture, this processor features 6 physical cores and 12 simultaneous threads via Hyper-Threading.The chip runs at a 2.90GHz baseline clock speed and utilizes Intel Turbo Boost Technology 2.0 to hit an operational max velocity of 4.30GHz. Supported by a 12MB Intel Smart Cache and an 8 GT/s Direct Media Interface (DMI3), the underlying architecture helps mitigate data pipeline execution delays during local multi-application rendering sequences.
The component interfaces with standard FCLGA1200 sockets across compatible Intel 400 and 500-series platform controller hubs.It features a built-in dual-channel memory controller that manages up to 128GB of non-ECC DDR4 system memory running at native transfer speeds up to 2666MHz. For display tasks, on-die Intel UHD Graphics 630 silicon delivers up to an 1.10GHz dynamic turbo frequency to power three independent 4K workstation displays natively without an added discrete graphics card. Do not deploy this client processor in enterprise server arrays that require high-bandwidth PCIe 4.0 data paths or error-correcting (ECC) memory architectures.
Key Features :
Hexa-core configuration with 12 logical processing paths speeds up daily multitasking.
4.30GHz maximum boost frequency manages intense application spikes smoothly.
On-die Intel UHD Graphics 630 natively runs three independent 4K workstation screens.
Integrated 12MB Smart Cache layer minimizes low-level core processing delays.
65-watt low thermal profile allows integration inside quiet, space-saving chassis.
Specifications :
| Specification Field | Technical Data |
| Brand | Intel |
| Part Number | SRH78 |
| Product Type | Desktop Processor |
| Processor Number | i5-10400 |
| Core Stepping | Q0 |
| Microarchitecture | Comet Lake |
| Total Physical Cores | 6 |
| Total Execution Threads | 12 |
| Baseline Clock Speed | 2.90 GHz |
| Max Turbo Speed | 4.30 GHz |
| Cache Architecture | 12 MB Intel Smart Cache |
| Thermal Design Power (TDP) | 65 Watts |
| Interface Socket | FCLGA1200 |
| Integrated Graphics Engine | Intel UHD Graphics 630 |
| Graphics Base / Turbo Frequency | 350 MHz / 1.10 GHz |
| Memory Support | Dual-Channel DDR4-2666 |
| Max Memory Capacity | 128 GB |
