Detailed Specifications

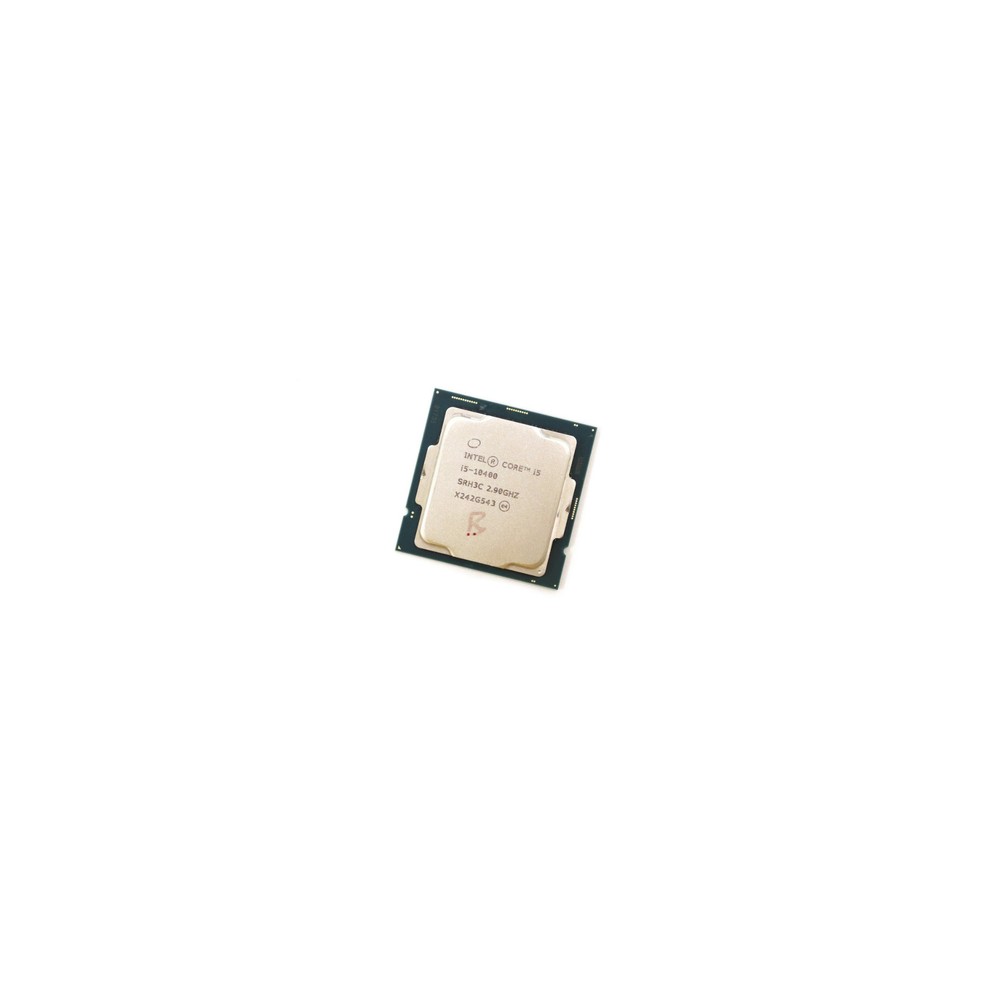

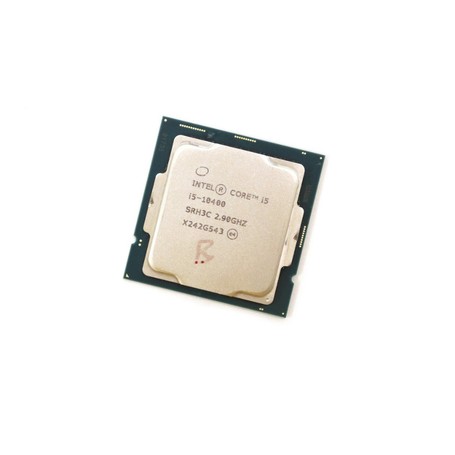

Intel SRH3C Desktop Processor
Overview :
The Intel SRH3C is the retail production-specification code (S-Spec) for the 10th Generation Intel Core i5-10400 desktop processor. Engineered for high-volume corporate fleets, mid-tier commercial workstations, and main-line business computing assemblies, this chip drives reliable multitasking performance across daily office productivity suites. It gives IT infrastructure administrators and corporate procurement specialists a balanced, cost-controlled engine for standard office computing setups.
Fabricated on a refined 14nm lithography process utilizing the Comet Lake-S microarchitecture, the processor operates at a baseline clock rate of 2.90GHz and utilizes Intel Turbo Boost Technology 2.0 to hit a peak execution speed of 4.30GHz.Built with 6 physical cores and 12 logical processing paths via Hyper-Threading, the CPU leverages 12MB of Intel Smart Cache to smooth over pipeline memory access latency.The onboard memory sub-controller establishes a dual-channel interface supporting up to 128GB of non-ECC DDR4 system memory running at speeds up to 2666MHz.
This desktop component mounts into standard FCLGA1200 expansion slots on compatible Intel 400 and 500-series motherboard platform controller hubs. Unlike specialized graphics-disabled models, this processor includes on-die Intel UHD Graphics 630 silicon operating up to an 1.10GHz dynamic frequency, enabling immediate multi-monitor video configurations for up to three independent 4K desktop screens without requiring discrete graphics cards. Do not deploy this client processor in enterprise server nodes that require high-bandwidth PCI Express 4.0 storage links or native ECC error validation tracking.
Key Features :
Hexa-core configuration with 12 computational threads speeds up daily multi-tasking.
4.30GHz maximum boost frequency manages intense execution tasks smoothly.
On-chip Intel UHD Graphics 630 natively runs three independent 4K outputs.
Integrated 12MB Smart Cache memory array reduces core processing latency.
65-watt thermal configuration maintains minimal power draw in office cubes.
Specifications :
| Specification Field | Technical Data |
| Brand | Intel |
| Part Number | SRH3C |
| Product Type | Desktop Processor |
| Processor Number | i5-10400 |
| Product Collection | 10th Generation Intel Core i5 Processors |
| Microarchitecture | Comet Lake |
| Total Cores | 6 |
| Total Threads | 12 |
| Base Clock Frequency | 2.90 GHz |
| Max Turbo Frequency | 4.30 GHz |
| Cache Architecture | 12 MB Intel Smart Cache |
| Thermal Design Power (TDP) | 65 Watts |
| Interface Socket | FCLGA1200 |
| Integrated Graphics Engine | Intel UHD Graphics 630 |
| Memory Support | Dual-Channel DDR4-2666 |
| Max Memory Capacity | 128 GB |
| Bus Interconnect Speed | 8 GT/s |
