Detailed Specifications

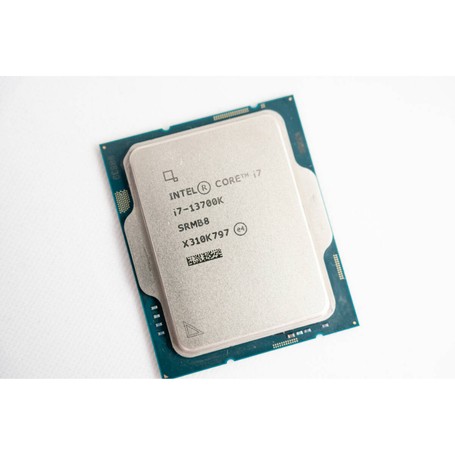

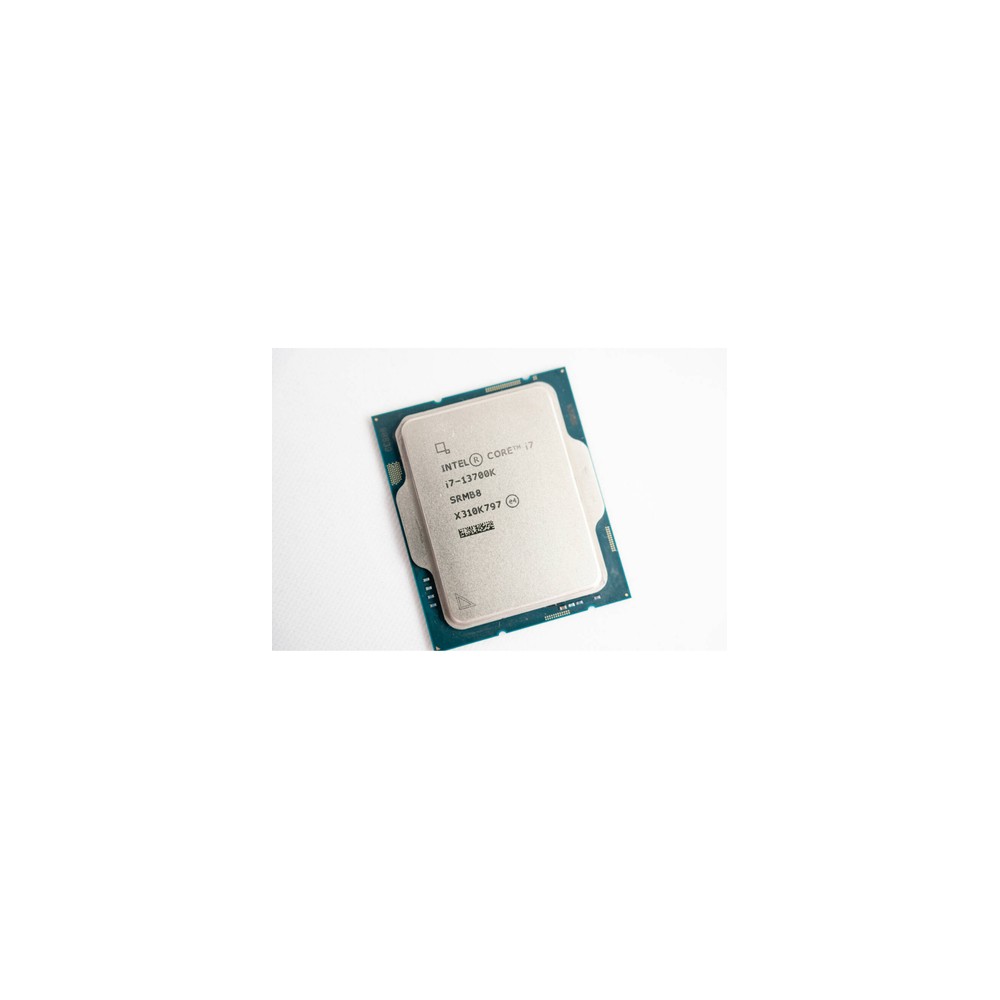

Intel SRMB8 Desktop Processor
Overview :
The Intel SRMB8 is the production-spec code (S-Spec) for the 13th Generation Intel Core i7-13700K desktop processor. Engineered for high-tier enterprise workstations, content creation systems, and demanding compute platforms, this processor balances raw single-threaded performance with dense multi-threaded efficiency. It provides system builders and hardware procurement teams with an elite processing engine capable of running parallelized compilation tools, 3D rendering engines, and heavy analytical suites.
Built on the 10nm execution process utilizing Intel's hybrid architecture (Raptor Lake-S), the processor splits computing tasks across 16 physical cores and 24 threads.This breakdown features 8 performance cores (P-cores) starting at a 3.40GHz base clock with a peak velocity of 5.40GHz, combined with 8 efficiency cores (E-cores) running a 2.50GHz baseline.Supported by a 30MB Intel Smart Cache and a 24MB L2 cache tier, the architecture dramatically speeds up memory access loops during deep database modeling or software testing simulations.
The component seats securely into standard FCLGA1700 expansion slots on compatible Intel 600 and 700-series motherboard controller hubs.The onboard memory subsystem handles up to 128GB of dual-channel memory, auto-negotiating speeds up to DDR4-3200 or high-bandwidth DDR5-5600 modules while integrating up to 20 PCIe 5.0 and 4.0 system lanes. Intel hardware defenses are managed via platform Boot Guard, OS Guard, and secure virtualization protocols (VT-x and VT-d). Do not deploy this un-locked processor without a heavy-duty cooling configuration, as its execution boundaries draw a maximum turbo power budget of 253 watts under peak workloads.
Key Features :
Hybrid 16-core architecture runs 24 execution threads for dense multitasking.
5.40GHz maximum turbo speed drives elite throughput under heavy rendering loops.
Dual-memory controller handles both DDR4 and high-bandwidth DDR5 modules.
20 available PCIe system lanes accelerate next-gen NVMe and GPU hardware.
Integrated UHD Graphics 770 silicon operates up to 4 video outputs natively.
Specifications :
| Specification Field | Technical Data |
| Brand | Intel |
| Part Number | SRMB8 |
| Product Type | Desktop Processor |
| Processor Number | Core i7-13700K |
| Microarchitecture | Raptor Lake |
| Total Physical Cores | 16 (8 P-Cores + 8 E-Cores) |
| Total Execution Threads | 24 |
| P-Core Base / Max Turbo Frequency | 3.40 GHz / 5.40 GHz |
| E-Core Base / Max Turbo Frequency | 2.50 GHz / 4.20 GHz |
| Shared L3 Cache | 30 MB Intel Smart Cache |
| Total L2 Cache | 24 MB |
| Host Socket Interface | FCLGA1700 |
| Memory Support Types | DDR5-5600 / DDR4-3200 |
| Max Memory Capacity | 128 GB |
| Integrated Graphics Engine | Intel UHD Graphics 770 |
| Base / Turbo Power Draw | 125 Watts / 253 Watts Max |
