Detailed Specifications

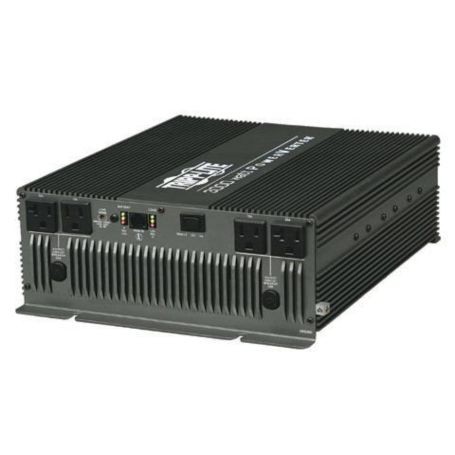

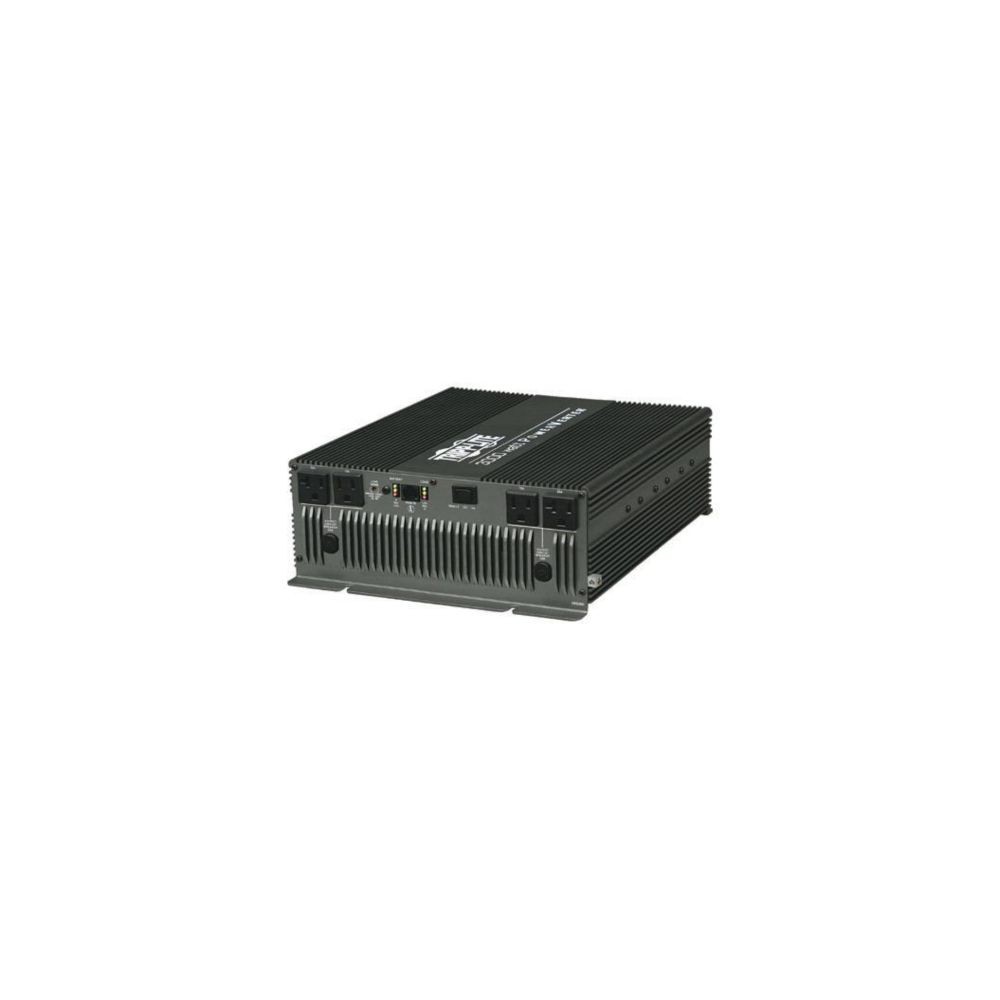

Eaton PV3000 3000W PowerVerter Compact Inverter
Overview
The Eaton PV3000, from the Tripp Lite by Eaton PowerVerter product line, is a 3000W compact DC-to-AC power inverter designed for utility and long-haul trucks, RVs, and marine applications. It converts 12V DC battery power into 120V AC power and provides four NEMA 5-15R AC outlets.
The inverter delivers 3000W of continuous output and 6000W of instantaneous peak output. It uses PWM sine-wave output regulation, automatic overload shutdown, two 20A output circuit breakers, and six 40A automotive input fuses. A Battery Saver low-voltage shutdown helps prevent excessive battery discharge.
The PV3000 includes remote-control capability and is intended for permanent installation on a horizontal surface using its mounting slots. At full continuous load, the manufacturer specifies a 12V DC source capable of supplying 286A.
Key Features
- Provides 3000W continuous and 6000W peak AC output from a 12V DC source
- Four NEMA 5-15R AC outlets provide 120V power for connected equipment
- Designed for utility/long-haul trucks, RVs, and marine applications
- Automatic overload protection with two 20A circuit breakers and six 40A automotive input fuses
- Includes Battery Saver low-voltage shutdown, load sensing, LED status indicators, and remote-control capability
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Product Line | Tripp Lite by Eaton PowerVerter |
| Part Number | PV3000 |
| Product Type | DC-to-AC Power Inverter |
| Intended Application | Utility/Long-Haul Truck; RV/Marine |
| Input Voltage | 12V DC |
| Output Voltage | 120V AC nominal |
| Continuous Output Power | 3000W |
| Peak Output Power | 6000W |
| Output Frequency | 60 Hz |
| Output Waveform | PWM sine wave |
| Output Voltage Regulation | 115V AC ±8V |
| Output Frequency Regulation | 60 Hz ±3 Hz |
| AC Outlets | 4 |
| Output Receptacles | NEMA 5-15R |
| Maximum Full-Load Input Current | 286A at 12V DC |
| No-Load Input Current | 2.6A at 12V DC |
| Input Connection | Four DC bolt-down terminals |
| Overload Protection | Automatic shutdown |
| Output Circuit Protection | Two built-in 20A circuit breakers |
| Input Protection | Six 40A automotive input fuses |
| Low-Voltage Shutdown | 10.5V DC or less |
| Cooling | Fan |
| Load Sensing | Yes, adjustable up to 150W |
| Remote Control | Yes |
| Mounting | Horizontal surface mounting slots |
| Construction | Aluminum / sheet metal |
| Relative Humidity | 0-95%, non-condensing |
| Unit Dimensions | 4 × 10.5 × 13.5 in (H × W × D) |
| Unit Weight | 13.2 lb |
| Shipping Dimensions | 5.5 × 16 × 12 in (H × W × D) |
| Shipping Weight | 15.6 lb |
| Warranty | 1-year limited warranty |
