Detailed Specifications
Overview

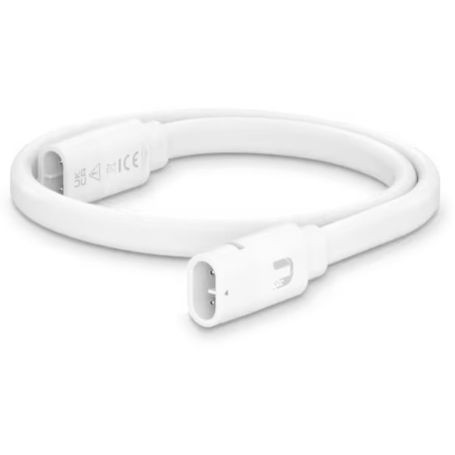

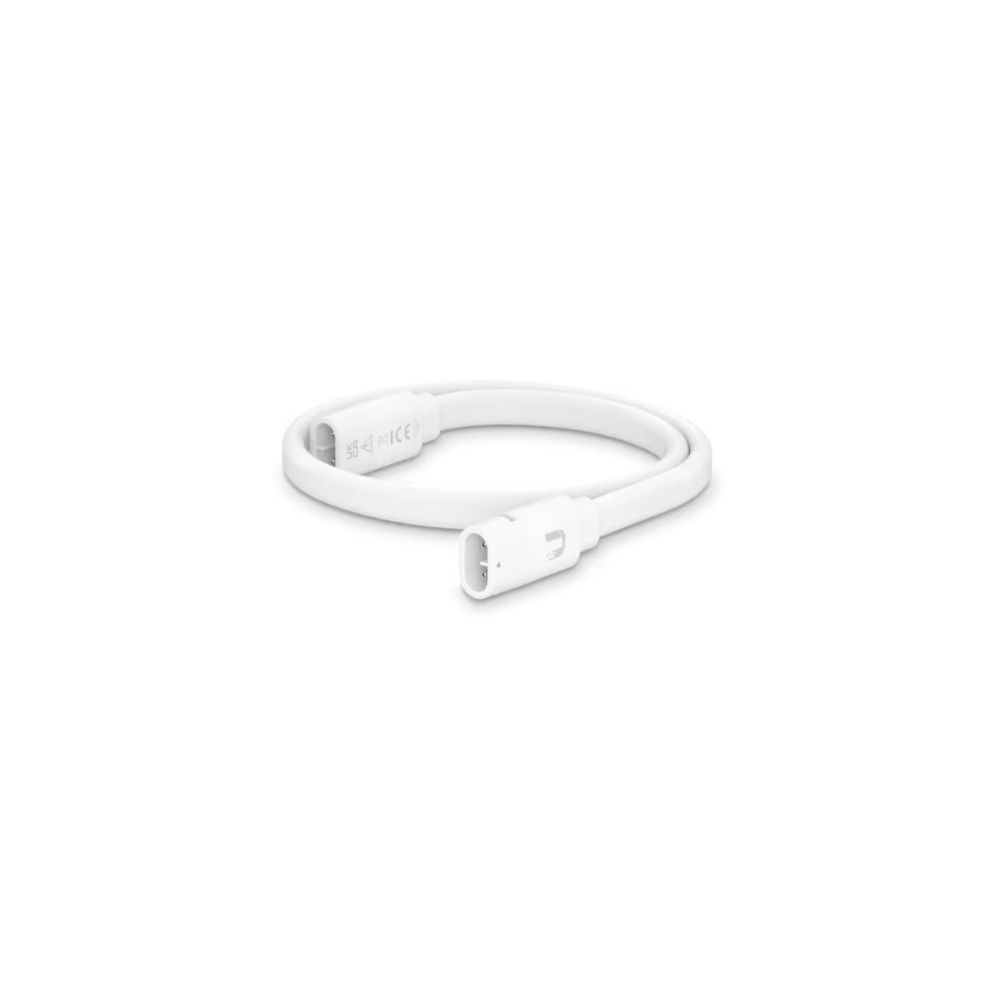

The Ubiquiti UACC-CABLE-PT-0.5M is a 0.5 m UISP Power TransPort Cable designed for DC power installations. It uses a Power TransPort connector and 12 AWG tinned stranded copper conductors housed in a thermoplastic elastomer (TPE) jacket.
Construction and Environmental Performance
The cable features an 11 x 6.5 mm jacket diameter and a VW-1 flame rating. Ubiquiti specifies an ambient operating temperature range of -40 to 80 °C (-40 to 176 °F). The UISP Power TransPort Cable is described by Ubiquiti as an all-weather, UV-resistant DC power cable designed for outdoor installations.
Key Features
- 0.5 m cable length for short DC power connections
- Power TransPort connector
- 12 AWG tinned stranded copper conductors
- Thermoplastic elastomer jacket with VW-1 flame rating
- Specified ambient operating range of -40 to 80 °C
Applications
The UACC-CABLE-PT-0.5M is intended for compatible UISP Power TransPort DC power installations where a short 0.5 m connection is suitable. Its compact length can help keep short power connections organized while retaining the construction specified for the UISP Power TransPort cable range.
DC Supplies Product Note
At 0.5 m, this is the shortest listed cable length in Ubiquiti's UISP Power TransPort range. Before ordering, confirm that the connected equipment uses the Power TransPort connection system and that a 0.5 m cable provides sufficient reach for the intended installation.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PT-0.5M |
| Product Type | UISP Power TransPort Cable |
| Cable Length | 0.5 m (1.64 ft) |
| Connector | Power TransPort |
| Conductor Wire Gauge | 12 AWG |
| Conductor Type | Tinned stranded copper |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Diameter | 11 x 6.5 mm |
| Flame Rating | VW-1 |
| Ambient Operating Temperature | -40 to 80 °C (-40 to 176 °F) |
| Color | White |
| Weight | 91 g (0.2 lb) |
| Outdoor Construction | All-weather, UV-resistant |
| NDAA Compliant | Yes |
FAQs
What is the cable length of the UACC-CABLE-PT-0.5M?
The cable is 0.5 m (1.64 ft) long.
What connector does the UACC-CABLE-PT-0.5M use?
It uses a Power TransPort connector.
What conductor is used in this cable?
The cable uses 12 AWG tinned stranded copper conductors.
Can this cable be used for outdoor installations?
Yes. Ubiquiti describes the UISP Power TransPort Cable as an all-weather, UV-resistant DC power cable designed for outdoor installations.
What temperature range is specified for operation?
The specified ambient operating temperature range is -40 to 80 °C (-40 to 176 °F).
