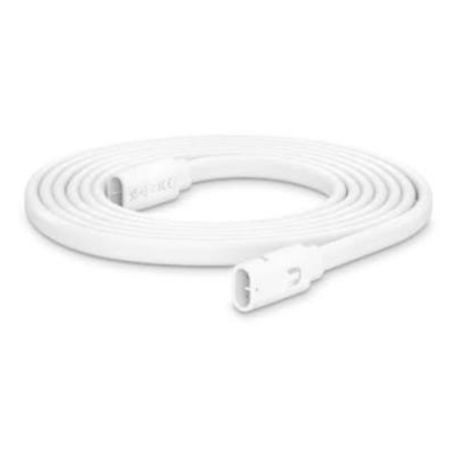

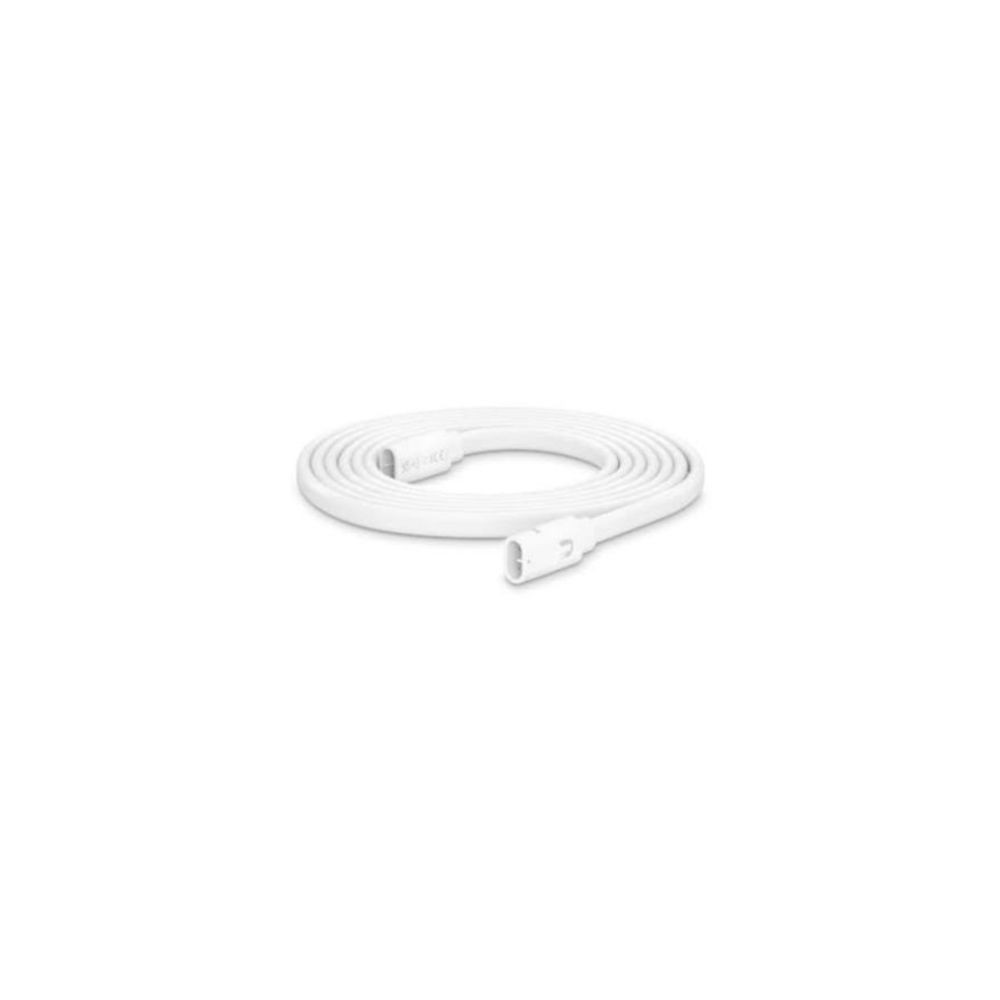

The Ubiquiti UACC-CABLE-PT-3M is a 3 m UISP Power TransPort cable designed for outdoor DC power connections. It combines 12 AWG tin-stranded copper conductors with a thermoplastic elastomer jacket and Ubiquiti Power TransPort connectors.
Overview
This cable belongs to Ubiquiti's UISP Power TransPort family and provides a dedicated power connection for compatible equipment using the Power TransPort interface. The 3 m length is suited to installations requiring a moderate cable run between the power source and connected equipment.
Technical Information
The UACC-CABLE-PT-3M uses 12 AWG tin-stranded copper and has a 11 × 6.5 mm jacket diameter. Its TPE jacket has a VW-1 flame rating and is designed for outdoor use across an ambient operating temperature range of -40 to 80°C.
Outdoor Construction
Ubiquiti specifies the Power TransPort cable as an all-weather, UV-resistant DC power cable for outdoor installations. The TPE jacket provides the cable construction specified for these environmental conditions while maintaining a dedicated Power TransPort connection.
Key Features
- 3 m cable length
- Ubiquiti Power TransPort connectors
- 12 AWG tin-stranded copper conductor
- Thermoplastic elastomer jacket
- VW-1 flame rating and -40 to 80°C operating temperature
Applications
The cable is intended for outdoor UISP deployments requiring a 3 m DC power connection to compatible Power TransPort equipment. It can be used where the equipment layout calls for a longer connection than the shorter 0.5 m or 1.5 m variants.
DC Supplies Product Note
The 3 m version is one of several available Power TransPort cable lengths. Selecting the appropriate length helps accommodate the physical routing distance between compatible Power TransPort connections without unnecessarily extending the cable run.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PT-3M |
| Product Type | Outdoor DC Power Cable |
| Product Family | UISP Power TransPort Cable |
| Cable Length | 3 m (9.84 ft) |
| Connector | Power TransPort |
| Conductor Wire Gauge | 12 AWG |
| Conductor Type | Tin-stranded copper |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Color | White |
| Jacket Diameter | 11 × 6.5 mm |
| Environment | Outdoor |
| Flame Rating | VW-1 |
| Ambient Operating Temperature | -40 to 80°C (-40 to 176°F) |
| NDAA Compliant | Yes |
FAQs
What is the UACC-CABLE-PT-3M used for?
It provides a DC power connection for compatible Ubiquiti equipment using the Power TransPort interface.
How long is the UACC-CABLE-PT-3M?
The cable is 3 m (9.84 ft) long.
Is this cable suitable for outdoor installations?
Yes. Ubiquiti describes the Power TransPort cable as an all-weather, UV-resistant DC power cable designed for outdoor installations.
What conductor does the cable use?
It uses a 12 AWG tin-stranded copper conductor.
What connector does it use?
The cable uses Ubiquiti Power TransPort connectors for compatible Power TransPort interfaces.
