Detailed Specifications
Overview

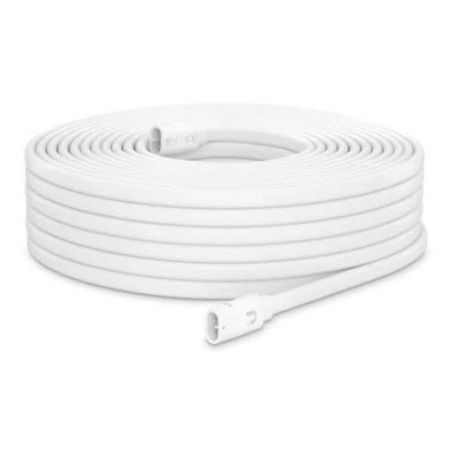

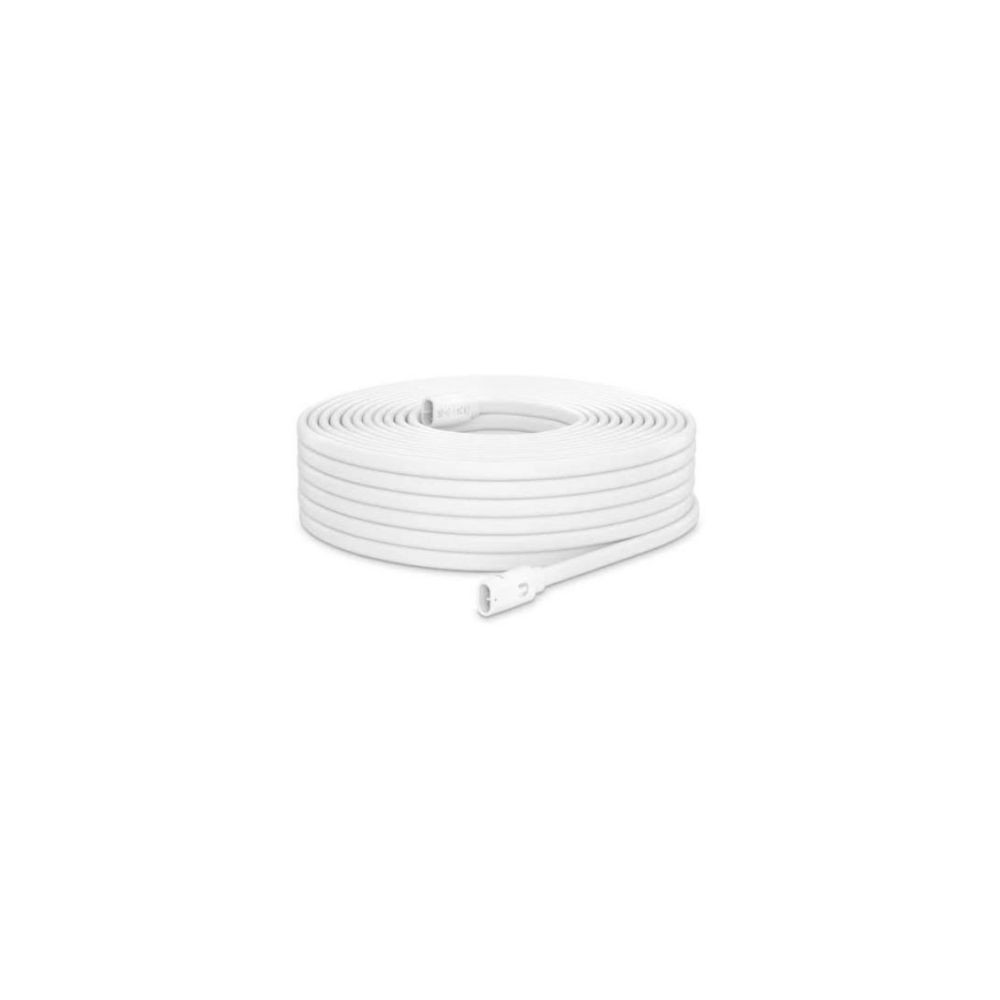

The Ubiquiti UACC-CABLE-PT-50M is a 50 m UISP Power TransPort Cable designed for outdoor DC power installations. It uses Ubiquiti's Power TransPort connector, 12 AWG tinned stranded copper conductors, and a thermoplastic elastomer jacket.
Construction
The cable has a specified jacket diameter of 11 x 6.5 mm and a VW-1 flame rating. Ubiquiti specifies an ambient operating temperature range of -40 to 80 °C (-40 to 176 °F). The cable is designed for all-weather, UV-resistant outdoor installations.
Key Features
- 50 m cable length
- Power TransPort connector
- 12 AWG tinned stranded copper conductor
- Thermoplastic elastomer jacket
- VW-1 flame rating
Applications
The UACC-CABLE-PT-50M is intended for compatible UISP Power TransPort DC power installations where a 50 m cable length is required for outdoor deployment.
DC Supplies Product Note
The 50 m version is the longest listed length in the UACC-CABLE-PT range. When planning an installation, verify that the connected equipment uses the Power TransPort interface and that the cable length is appropriate for the intended DC power deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-CABLE-PT-50M |
| Product Type | UISP Power TransPort Cable |
| Cable Length | 50 m (164 ft) |
| Connector | Power TransPort |
| Conductor Wire Gauge | 12 AWG |
| Conductor Type | Tinned stranded copper |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Jacket Diameter | 11 x 6.5 mm |
| Flame Rating | VW-1 |
| Operating Environment | Outdoor |
| Ambient Operating Temperature | -40 to 80 °C (-40 to 176 °F) |
| Color | White |
| Weight | 6,140 g (13.54 lb) |
| NDAA Compliant | Yes |
FAQs
What is the cable length?
The UACC-CABLE-PT-50M is 50 m (164 ft) long.
What connector does this cable use?
It uses a Ubiquiti Power TransPort connector.
What conductor does it use?
The cable uses a 12 AWG tinned stranded copper conductor.
Is the cable designed for outdoor use?
Yes. Ubiquiti describes the UISP Power TransPort Cable as an all-weather, UV-resistant DC power cable designed for outdoor installations.
What is the operating temperature range?
The specified ambient operating temperature range is -40 to 80 °C (-40 to 176 °F).
