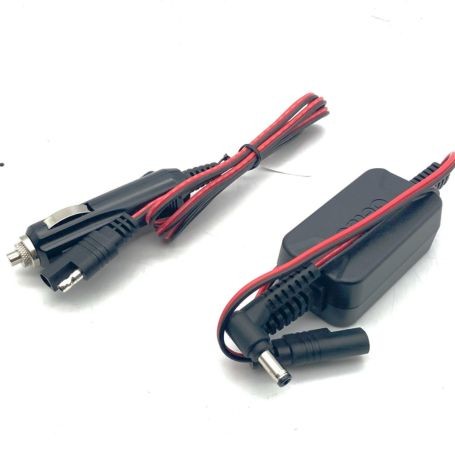

The Havis LPS-199 is a 65W non-isolated DC power supply designed for compatible Havis DS-GTC-1300 series docking stations. With an 11–32V DC input range and a 19.5V DC output rated at 3.3A, it provides a dedicated power solution for supported Getac rugged tablet docking installations.

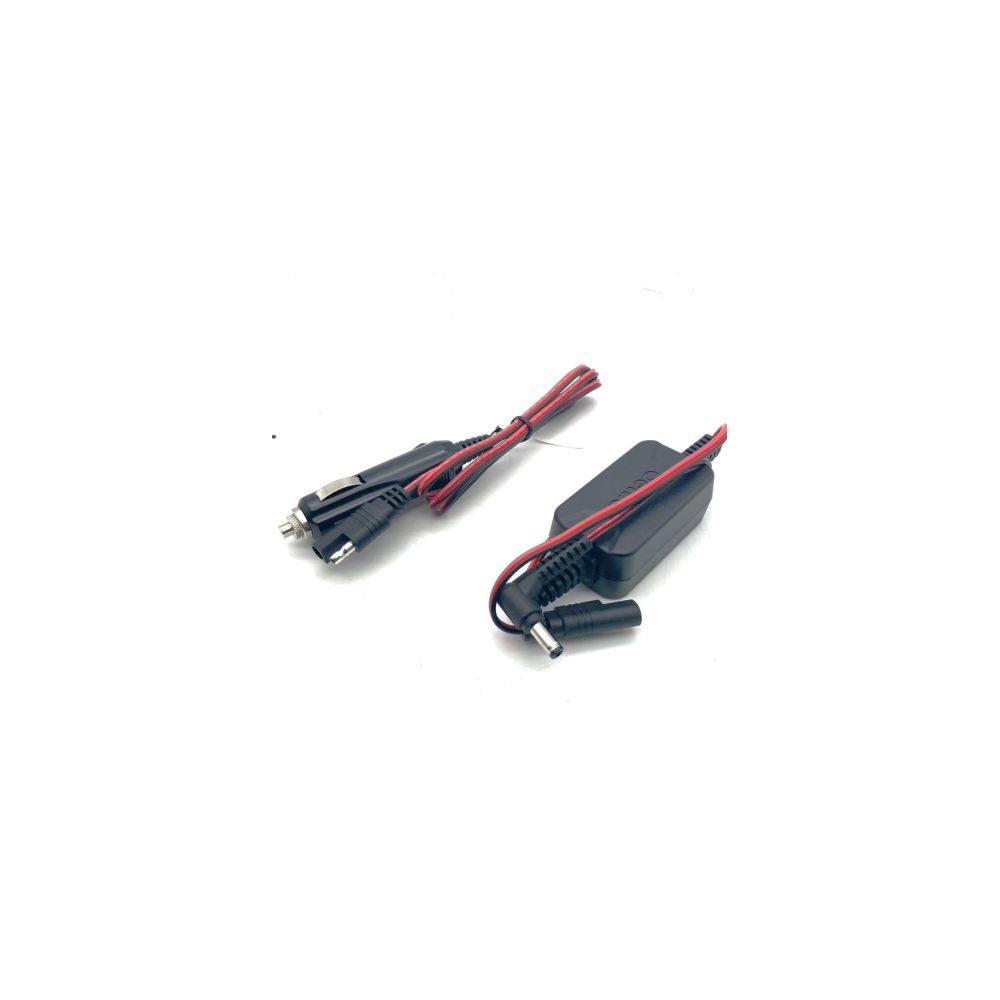

The unit features a hardwired 48-inch input cable with a cigarette-lighter plug and a hardwired 10-inch output cable with a straight 2.5 × 5.5mm connector. This integrated cable configuration is designed for compatible vehicle power systems and docking station connections.
Key Features
- 65W power rating: Designed for compatible Havis DS-GTC-1300 series docking stations.
- Wide DC input range: Accepts 11–32V DC input for supported vehicle power installations.
- 19.5V DC output: Provides a rated output current of 3.3A.
- Hardwired input cable: Includes an approximately 48-inch input cable with a cigarette-lighter plug and SAE inline connection.
- Compact output connection: Includes a hardwired 10-inch output cable with a straight 2.5 × 5.5mm connector.
Compatibility
The Havis LPS-199 is designed for compatible Havis DS-GTC-1300 series docking stations, including docking configurations intended for the Getac ZX10 rugged tablet.
Confirm the exact docking station model and its power requirements before ordering. The LPS-199 is intended to power a compatible docking station, not to connect directly to a tablet without verifying the device's electrical requirements.
Technical Specifications
| Manufacturer | Havis |
|---|
| Model Number | LPS-199 |
|---|
| Product Type | Non-isolated DC power supply |
|---|
| Power Rating | 65W |
|---|
| Input Voltage | 11–32V DC |
|---|
| Output Voltage | 19.5V DC |
|---|
| Output Current | 3.3A |
|---|
| Input Cable | Hardwired cable, approximately 48 inches, with cigarette-lighter plug and SAE inline connection |
|---|
| Output Cable | Hardwired 10-inch cable with straight 2.5 × 5.5mm connector |
|---|
| Compatible Docking Stations | Havis DS-GTC-1300 Series |
|---|
| Compatible Tablet Family | Getac ZX10, when used with a compatible docking station |
|---|
| Gross Weight | 0.5 lb |
|---|
Frequently Asked Questions
1. What is the Havis LPS-199 used for?
The LPS-199 is a 65W DC power supply designed to power compatible Havis DS-GTC-1300 series docking stations.
2. What input voltage does the LPS-199 support?
It supports an input range of 11–32V DC. The connected power source must remain within this range.
3. What is the output voltage and current?
The power supply delivers 19.5V DC output at a rated current of 3.3A, with a power rating of 65W.
4. Which docking stations are compatible?
The LPS-199 is designed for compatible Havis DS-GTC-1300 series docking stations. Verify the exact dock model before purchasing.
5. What connectors and cables are included?
The power supply has a hardwired input cable with a cigarette-lighter plug and a hardwired output cable with a straight 2.5 × 5.5mm connector.
6. Is this power supply isolated?
No. The LPS-199 is a non-isolated DC power supply. Confirm that this type of supply meets the requirements of the intended installation.
Product Summary
The Havis LPS-199 65W Non-Isolated Getac DC Power Supply is designed for compatible DS-GTC-1300 series docking stations. It features an 11–32V DC input range, 19.5V DC output at 3.3A, an integrated cigarette-lighter input cable, and a hardwired 2.5 × 5.5mm output connector.
