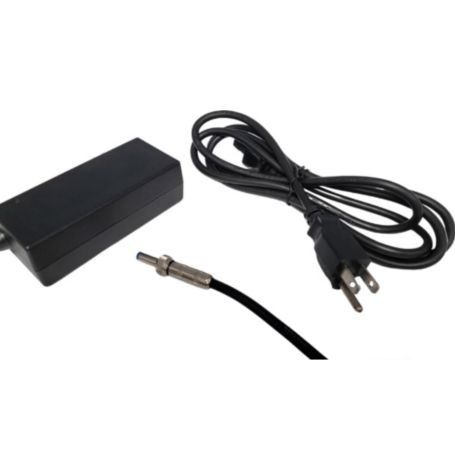

The Havis LPS-198 is a 120W AC power supply designed for compatible Havis DS-DELL-430 series docking stations. It accepts a wide 100–264V AC input range and provides 20V DC output at 6A, making it suitable for supported docking station installations.

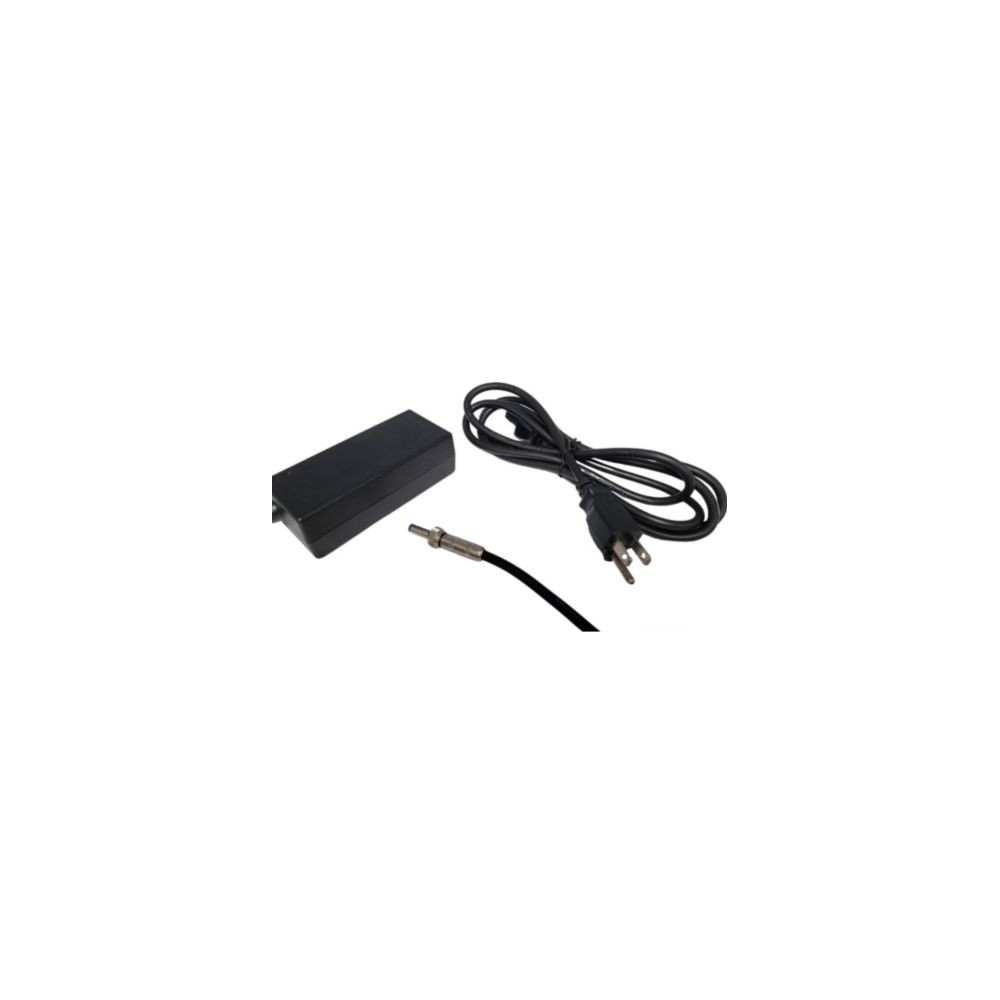

The power supply includes a hardwired 72-inch output cable with a straight threaded Switchcraft connector and a detachable 72-inch AC input cable with a three-prong US NEMA 5-15P plug. This cable configuration provides the connections required to power a compatible Havis docking station from an appropriate AC outlet.
Key Features
- 120W power rating: Provides power for compatible Havis DS-DELL-430 series docking stations.
- Wide AC input range: Accepts 100–264V AC input for supported power environments.
- 20V DC output: Delivers a rated output current of 6A.
- Hardwired output cable: Includes a 72-inch output cable with a straight threaded Switchcraft connector.
- Detachable AC input cable: Includes a 72-inch input cable with a three-prong US NEMA 5-15P plug.
Compatibility
The Havis LPS-198 is designed for compatible Havis DS-DELL-430 series docking stations.
Compatible computer families listed by Havis include selected Dell rugged notebook models, such as the Latitude 5430, 7330, 5420, 5424, and 7424. Compatibility depends on the specific docking station configuration, so confirm the dock model before ordering.
Important: The LPS-198 connects to a compatible Havis docking station. It is not intended to connect directly to a tablet or notebook.
Technical Specifications
| Manufacturer | Havis |
|---|
| Model Number | LPS-198 |
|---|
| Product Type | AC power supply |
|---|
| Power Rating | 120W |
|---|
| AC Input Voltage | 100–264V AC |
|---|
| DC Output Voltage | 20V DC |
|---|
| Output Current | 6A |
|---|
| Input Frequency | 50–60Hz |
|---|
| Input Cable | Detachable 72-inch cable with three-prong US NEMA 5-15P plug |
|---|
| Output Cable | Hardwired 72-inch cable with straight threaded Switchcraft connector |
|---|
| Compatible Docking Stations | Havis DS-DELL-430 Series |
|---|
| Gross Weight | 1.25 lb |
|---|
Frequently Asked Questions
1. What is the Havis LPS-198 used for?
The LPS-198 is a 120W AC-to-DC power supply designed to power compatible Havis DS-DELL-430 series docking stations.
2. What AC input voltage does it support?
The power supply accepts 100–264V AC input. Ensure the AC source and plug configuration are suitable for the installation.
3. What is the DC output rating?
The LPS-198 provides 20V DC output at 6A, with a rated power capacity of 120W.
4. Which docking stations are compatible?
It is designed for compatible Havis DS-DELL-430 series docking stations. Verify the exact docking station model before purchasing.
5. Which cables are included?
The power supply includes a hardwired 72-inch output cable with a straight threaded Switchcraft connector and a detachable 72-inch AC input cable with a US NEMA 5-15P plug.
6. Can I connect the LPS-198 directly to a Dell notebook?
No. This power supply is intended to connect to a compatible Havis docking station rather than directly to the computer.
Product Summary
The Havis LPS-198 120W AC Power Supply is designed for compatible DS-DELL-430 series docking stations. It features 100–264V AC input, 20V DC output at 6A, a hardwired 72-inch Switchcraft output cable, and a detachable 72-inch US AC input cable.
