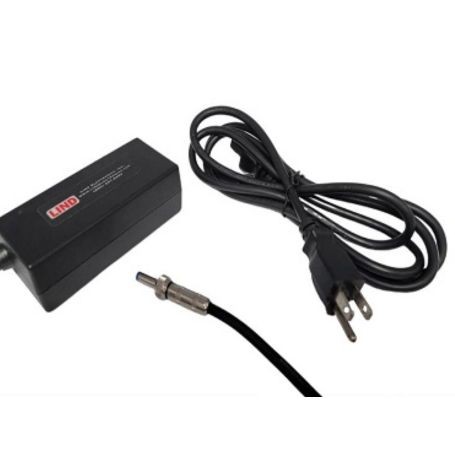

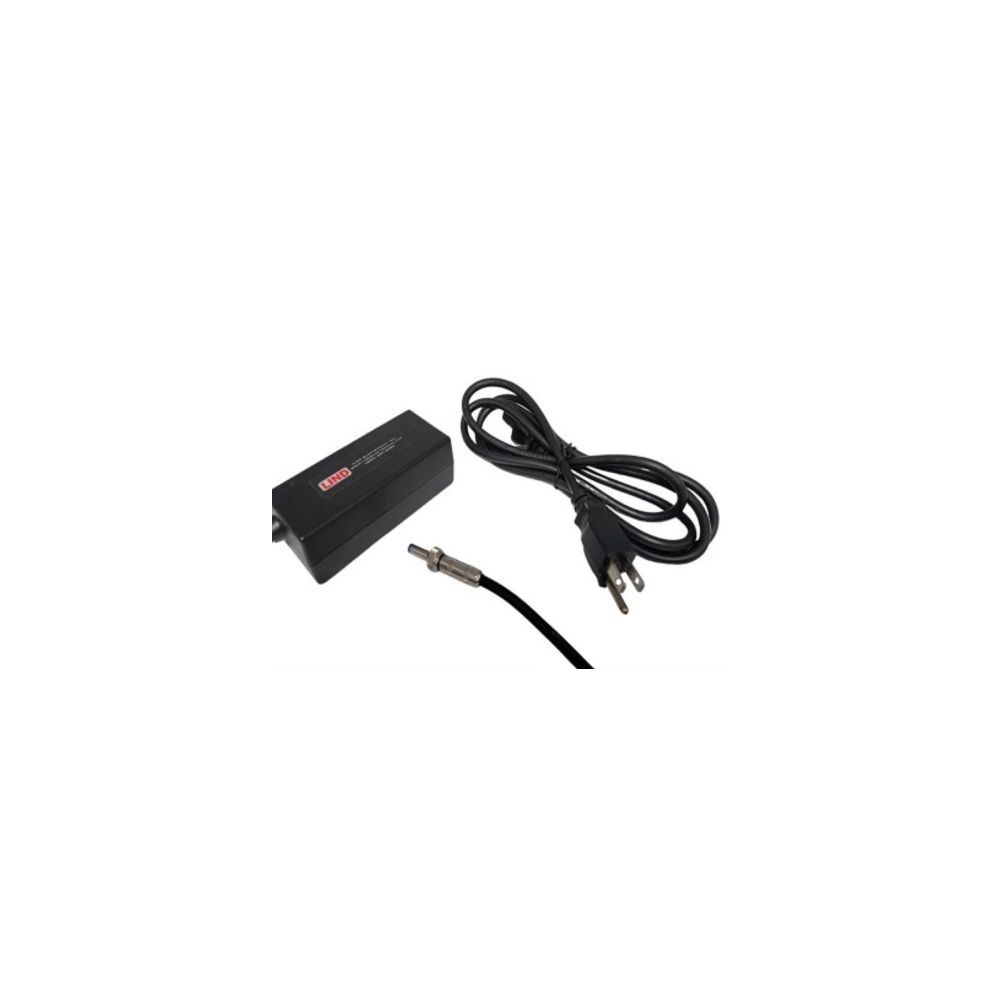

The Havis LPS-197 is a 120W AC power supply designed for compatible Havis DS-DELL-430 series docking stations. With a wide 100–264V AC input range and a 20V DC output rated at 5A, it provides power for supported docking station installations.
The power supply includes a hardwired 72-inch output cable with a threaded Switchcraft connector and a detachable 72-inch AC input cable with a three-prong US NEMA 5-15P plug. This cable configuration supports connection between a compatible AC outlet and the designated Havis docking station.
Key Features
- 120W power rating: Designed for compatible Havis DS-DELL-430 series docking stations.
- Wide AC input range: Accepts 100–264V AC input.
- 20V DC output: Provides a rated output current of 5A.
- Hardwired output cable: Includes a 72-inch cable with a threaded Switchcraft connector.
- Detachable AC input cable: Includes a 72-inch cable with a three-prong US NEMA 5-15P plug.
Compatibility
The Havis LPS-197 is designed for compatible Havis DS-DELL-430 series docking stations.
These docking stations support selected compatible Dell notebook configurations. Verify the exact docking station model and computer compatibility before ordering.
Important: The LPS-197 is intended to connect to a compatible Havis docking station. It is not designed to connect directly to the tablet or notebook. Confirm the docking station's power requirements before use.
Technical Specifications
| Manufacturer | Havis |
|---|
| Model Number | LPS-197 |
|---|
| Product Type | AC power supply |
|---|
| Power Rating | 120W |
|---|
| AC Input Voltage | 100–264V AC |
|---|
| DC Output Voltage | 20V DC |
|---|
| Output Current | 5A |
|---|
| Input Cable | Detachable 72-inch cable with three-prong US NEMA 5-15P plug |
|---|
| Output Cable | Hardwired 72-inch cable with threaded Switchcraft connector |
|---|
| Compatible Docking Stations | Havis DS-DELL-430 Series |
|---|
| Gross Weight | Approximately 0.5 lb |
|---|
Frequently Asked Questions
1. What is the Havis LPS-197 used for?
The LPS-197 supplies AC-to-DC power to compatible Havis DS-DELL-430 series docking stations.
2. What input voltage does the LPS-197 support?
It accepts 100–264V AC input, allowing use with compatible AC power systems within this voltage range.
3. What is the output voltage and current?
The power supply provides 20V DC output at 5A, with a maximum rated power of 120W.
4. Which docking stations are compatible?
The LPS-197 is designed for compatible Havis DS-DELL-430 series docking stations. Confirm the exact dock model before purchasing.
5. Which cables are included?
The unit includes a hardwired 72-inch output cable with a threaded Switchcraft connector and a detachable 72-inch AC input cable with a US NEMA 5-15P plug.
6. Can this power supply connect directly to a Dell notebook?
No. The LPS-197 is intended for use with a compatible Havis docking station rather than direct connection to a notebook.
Product Summary
The Havis LPS-197 120W AC Power Supply is designed for compatible DS-DELL-430 series docking stations. It features 100–264V AC input, 20V DC output at 5A, a hardwired 72-inch output cable with a threaded Switchcraft connector, and a detachable 72-inch US AC input cable.
