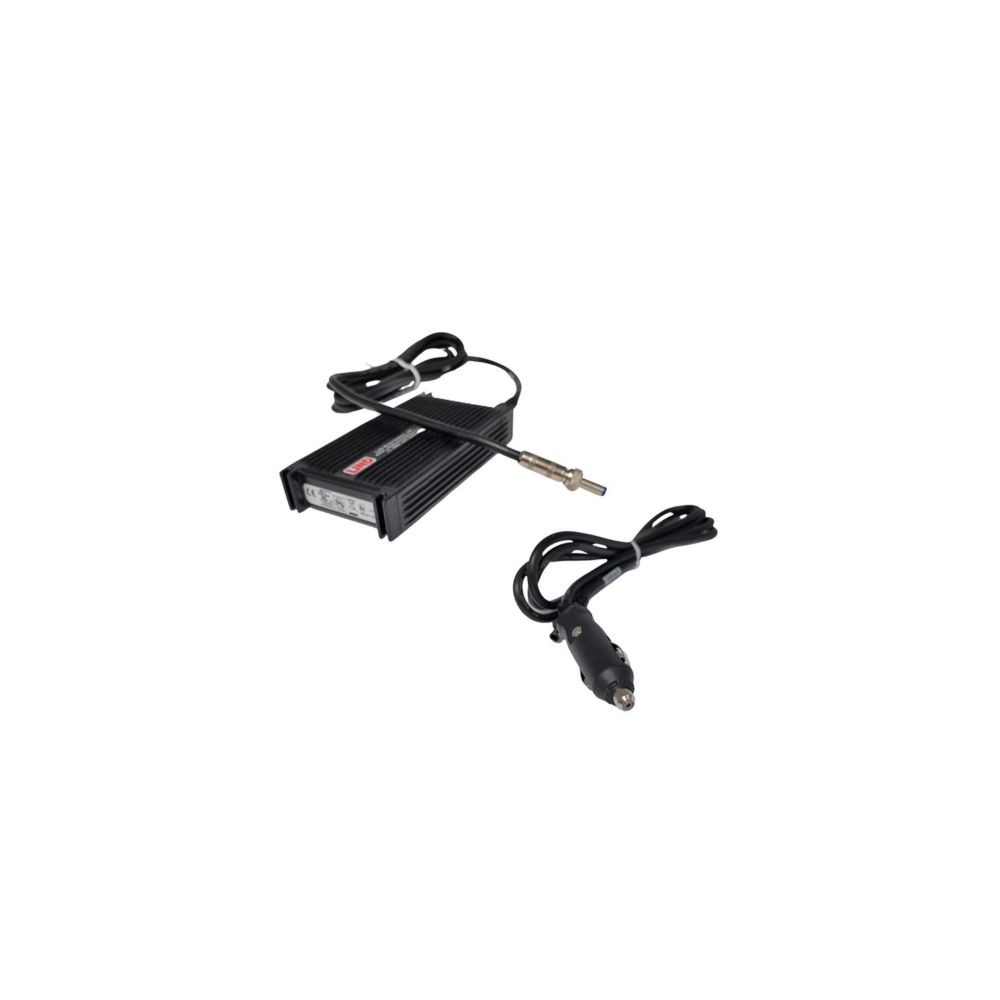

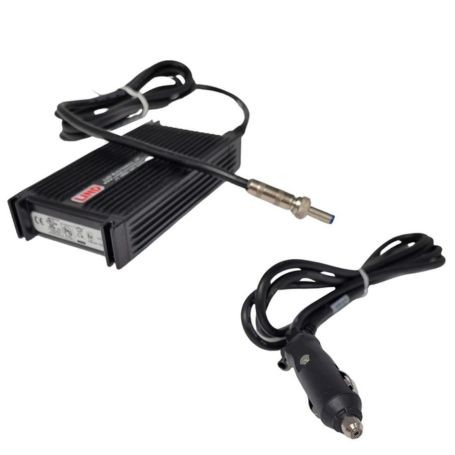

The Havis LPS-196 is a 120W non-isolated Lind DC power supply designed for compatible Havis DS-DELL-430 series docking stations. It accepts a 12–16V DC input and provides 19.5V DC output at 6.2A to support compatible docking station installations.
The power supply includes a detachable 72-inch input cable with a cigarette-lighter adapter and a 72-inch output cable with a straight threaded Switchcraft connector. This cable arrangement supports convenient connection to a compatible vehicle power source and docking station.
Key Features
- 120W power rating: Designed to supply compatible Havis DS-DELL-430 series docking stations.
- 12–16V DC input: Intended for compatible vehicle DC power systems operating within the specified input range.
- 19.5V DC output: Provides an output rated at 6.2A.
- Detachable input cable: Includes a 72-inch cable with a cigarette-lighter adapter.
- Threaded output connection: Includes a 72-inch output cable with a straight threaded Switchcraft connector.
Compatibility
The Havis LPS-196 is designed for compatible Havis DS-DELL-430 series docking stations.
Before purchasing, confirm the exact docking station model and its power requirements. This power supply is designed for the compatible docking station, not for direct connection to a tablet or notebook.
Technical Specifications
| Manufacturer | Havis |
|---|
| Model Number | LPS-196 |
|---|
| Product Line | Lind |
|---|
| Product Type | Non-isolated DC power supply |
|---|
| Power Rating | 120W |
|---|
| Input Voltage | 12–16V DC |
|---|
| Output Voltage | 19.5V DC |
|---|
| Output Current | 6.2A |
|---|
| Input Cable | Detachable 72-inch cable with cigarette-lighter adapter |
|---|
| Output Cable | 72-inch cable with straight threaded Switchcraft connector |
|---|
| Compatible Docking Stations | Havis DS-DELL-430 Series |
|---|
Frequently Asked Questions
1. What is the Havis LPS-196 used for?
The LPS-196 is a 120W non-isolated DC power supply intended to power compatible Havis DS-DELL-430 series docking stations.
2. What input voltage does it support?
The specified input range is 12–16V DC. Use it only with a compatible power source operating within this range.
3. What is the output voltage?
The LPS-196 provides 19.5V DC output at a rated current of 6.2A, with a 120W power rating.
4. Which docking stations are compatible?
The LPS-196 is designed for compatible Havis DS-DELL-430 series docking stations. Check the exact dock model before ordering.
5. What cables are included?
The package includes a detachable 72-inch input cable with a cigarette-lighter adapter and a 72-inch output cable with a straight threaded Switchcraft connector.
6. Can this power supply connect directly to a Dell computer?
The LPS-196 is intended to connect to a compatible Havis docking station rather than directly to the computer. Confirm the docking station and power requirements before use.
Product Summary
The Havis LPS-196 120W Non-Isolated Lind DC Power Supply is designed for compatible DS-DELL-430 series docking stations. It features 12–16V DC input, 19.5V DC output at 6.2A, a detachable cigarette-lighter input cable, and a 72-inch output cable with a straight threaded Switchcraft connector.
