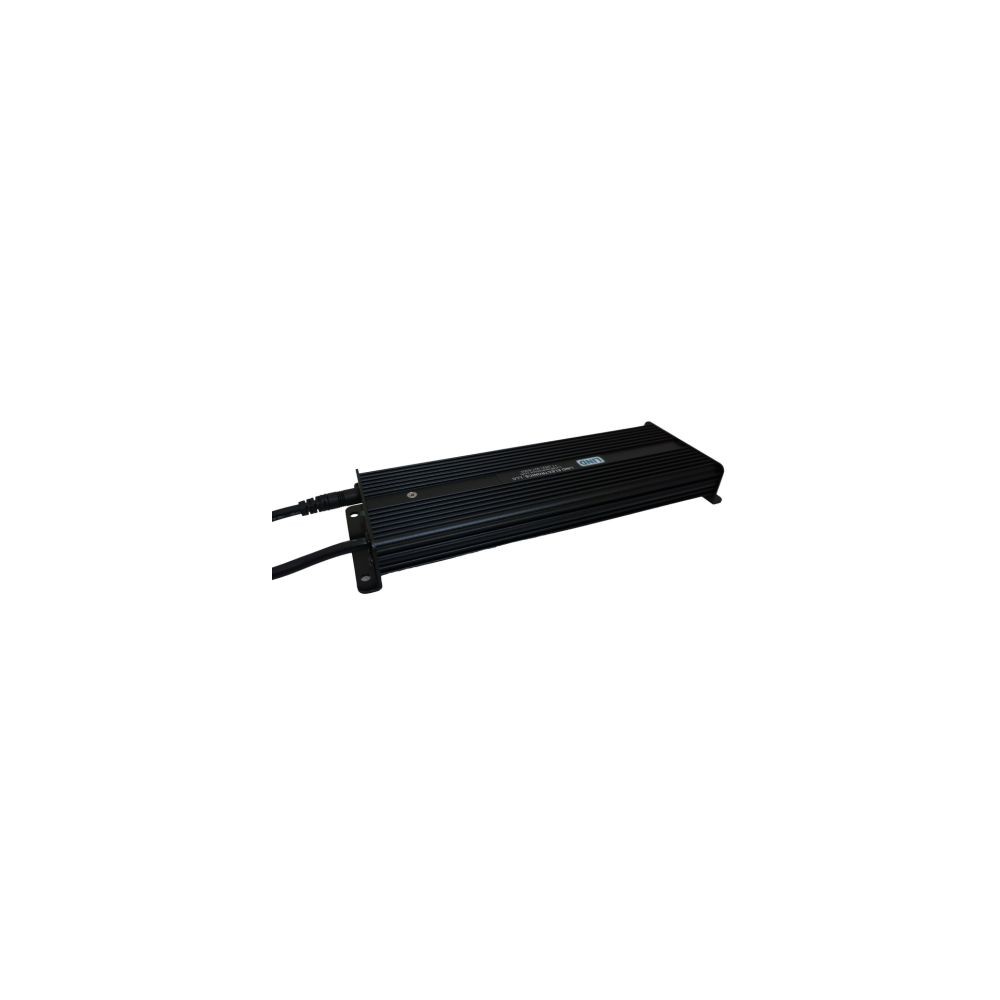

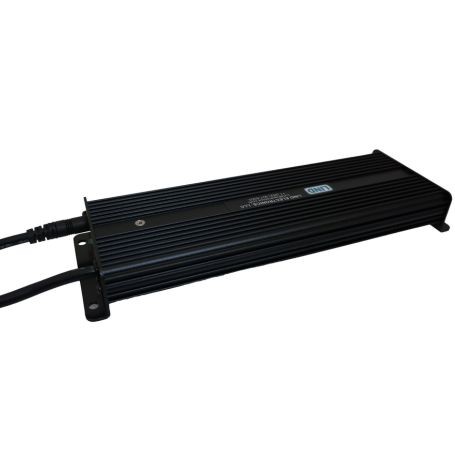

The Havis LPS-195 is a 96W isolated Lind DC power supply designed for compatible Havis DS-TAB-400 series docking stations. Its 20–60V DC input range supports suitable higher-voltage electrical systems, including compatible forklift power systems.
The LPS-195 delivers 24V DC output at 4A and includes a hardwired 72-inch input cable with bare-wire leads. A detachable 36-inch output cable with a straight 2.5 × 5.5mm connector provides the connection to a compatible docking station.
Key Features
- 96W power rating: Designed to power compatible Havis DS-TAB-400 series docking stations.
- 20–60V DC input: Supports compatible higher-voltage DC power systems, including suitable forklift installations.
- 24V DC output: Provides a rated output of 4A for compatible docking applications.
- Hardwired input cable: Includes a 72-inch input cable with bare-wire leads.
- Detachable output cable: Includes a 36-inch cable with a straight 2.5 × 5.5mm connector for supported docking stations.
Compatibility
The Havis LPS-195 is designed for compatible Havis DS-TAB-400 series docking stations.
Before ordering, confirm the exact docking station model and ensure that the installation requires a 24V DC supply with a 20–60V DC input source and a compatible straight 2.5 × 5.5mm output connector.
Important: This power supply is intended to connect to a compatible Havis docking station. Do not assume it can power a tablet or another device directly without verifying the device's electrical and connector requirements.
Technical Specifications
| Manufacturer | Havis |
|---|
| Model Number | LPS-195 |
|---|
| Product Type | Isolated Lind DC power supply |
|---|
| Power Rating | 96W |
|---|
| Input Voltage | 20–60V DC |
|---|
| Output Voltage | 24V DC |
|---|
| Output Current | 4A |
|---|
| Input Cable | 72-inch hardwired cable with bare-wire leads |
|---|
| Output Cable | 36-inch detachable cable with straight 2.5 × 5.5mm connector |
|---|
| Compatible Docking Station | Havis DS-TAB-400 Series |
|---|
| Gross Weight | 1 lb |
|---|
Frequently Asked Questions
1. What is the Havis LPS-195 used for?
The LPS-195 is a 96W isolated DC power supply designed to power compatible Havis DS-TAB-400 series docking stations.
2. What input voltage does the LPS-195 support?
It supports a DC input range of 20–60V, making it suitable for compatible higher-voltage vehicle and forklift power systems.
3. What is the output voltage and current?
The LPS-195 provides 24V DC output at a rated current of 4A, for a total power rating of 96W.
4. What connector does the output cable use?
The detachable 36-inch output cable has a straight 2.5 × 5.5mm connector. Confirm that the intended docking station accepts this connector.
5. Which docking stations are compatible?
The LPS-195 is designed for compatible Havis DS-TAB-400 series docking stations. Verify the exact docking station model before purchase.
6. What cables are included?
The unit includes a hardwired 72-inch input cable with bare-wire leads and a detachable 36-inch output cable with a straight 2.5 × 5.5mm connector.
Product Summary
The Havis LPS-195 96W Isolated Lind DC Power Supply is designed for compatible DS-TAB-400 series docking stations. With a 20–60V DC input range, 24V DC output at 4A, a hardwired bare-wire input cable, and a detachable 36-inch output cable, it provides a dedicated power solution for supported forklift and mobile-computing installations.
