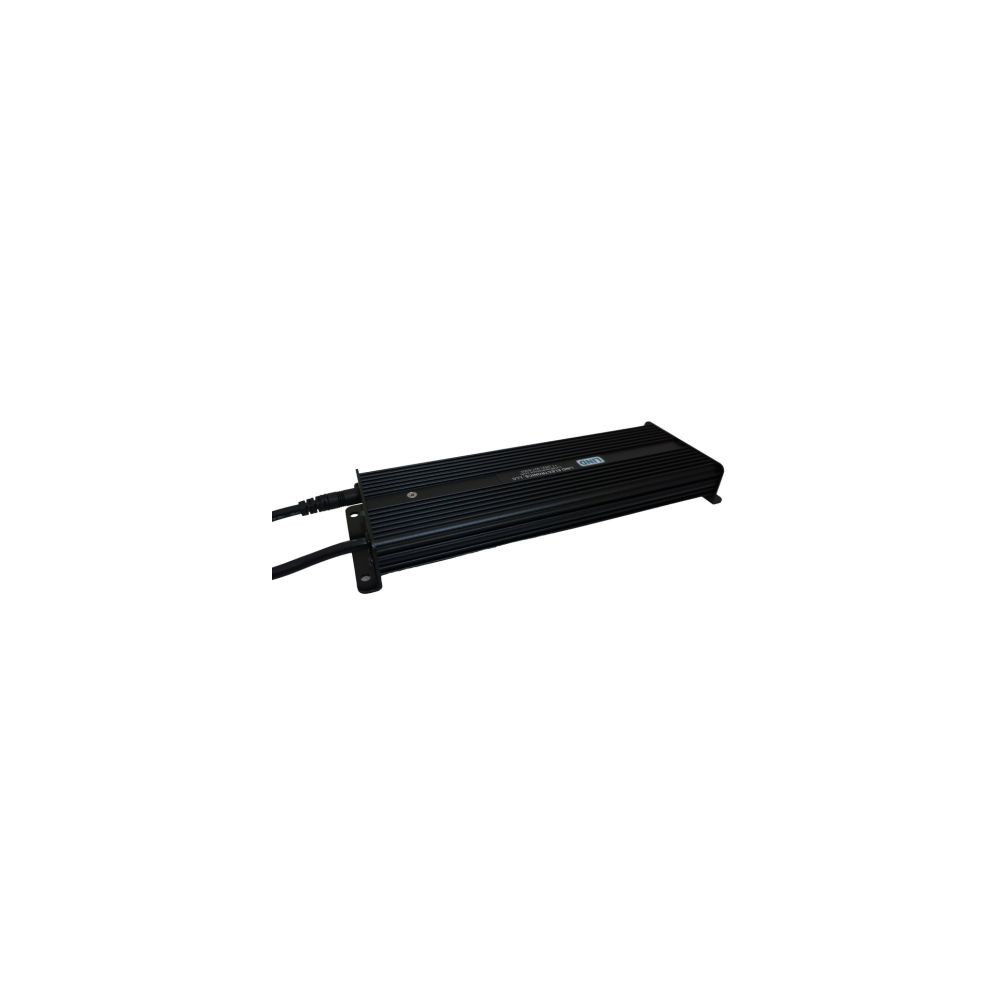

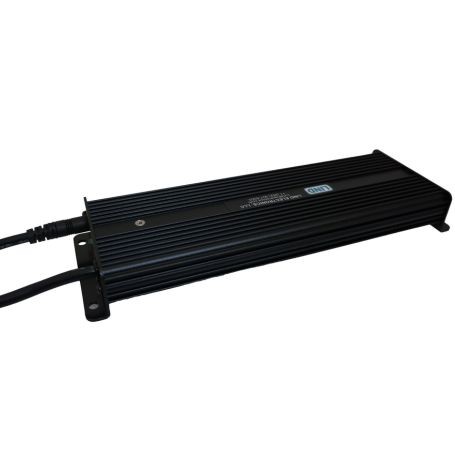

The Havis LPS-194 is a 96W isolated Lind DC power supply designed for compatible Havis DS-TAB-400 series docking stations. It accepts a 12–32V DC input and supplies 24V DC output for supported docking applications.
Designed for installations that require a dedicated DC power source, the LPS-194 features a straight 2.5 × 5.5mm output connector. Its isolated power design separates the input and output circuits, making it suitable for compatible vehicle and mobile-computing power configurations.
Key Features
- 96W power rating: Designed to power compatible Havis docking station installations.
- 12–32V DC input: Supports compatible DC power sources operating within the specified input range.
- 24V DC output: Provides the output voltage required by supported docking configurations.
- Isolated power design: Provides electrical isolation between the input and output circuits.
- Straight barrel connector: Uses a 2.5 × 5.5mm output connector for compatible docking stations.
Compatibility
The Havis LPS-194 is designed for compatible Havis DS-TAB-400 series docking stations.
Before purchasing, confirm that the specific docking station requires a 24V DC power supply and accepts the straight 2.5 × 5.5mm connector. Compatibility should be verified against the exact docking station model and its electrical requirements.
Important: This power supply is intended for compatible docking station installations. Do not assume that it can connect directly to a tablet or another device without confirming the device's voltage, current, and connector requirements.
Technical Specifications
| Manufacturer | Havis |
|---|
| Model Number | LPS-194 |
|---|
| Product Type | Isolated Lind DC power supply |
|---|
| Power Rating | 96W |
|---|
| Input Voltage | 12–32V DC |
|---|
| Output Voltage | 24V DC |
|---|
| Output Connector | Straight 2.5 × 5.5mm barrel connector |
|---|
| Compatible Docking Station Family | Havis DS-TAB-400 Series |
|---|
| Isolation | Isolated power supply design |
|---|
Frequently Asked Questions
1. What is the Havis LPS-194 used for?
The LPS-194 is a 96W isolated DC power supply designed for compatible Havis DS-TAB-400 series docking stations.
2. What input voltage does the LPS-194 support?
It supports a DC input range of 12–32V. The connected power source must operate within this range.
3. What is the output voltage?
The LPS-194 provides 24V DC output, with a rated power capacity of 96W.
4. Which connector does this power supply use?
It uses a straight 2.5 × 5.5mm barrel connector. Confirm the connector requirements of the intended docking station before ordering.
5. Which Havis docking stations are compatible?
The LPS-194 is intended for compatible Havis DS-TAB-400 series docking stations. Check the exact docking station model and power specifications to confirm compatibility.
6. Is the LPS-194 suitable for every 12V or 24V device?
No. Input voltage compatibility alone does not guarantee that a device can use this power supply. The device must also support the 24V DC output and the connector and power requirements of the LPS-194.
Product Summary
The Havis LPS-194 96W Isolated Lind DC Power Supply is designed for compatible DS-TAB-400 series docking stations. With a 12–32V DC input range, 24V DC output, isolated power design, and straight 2.5 × 5.5mm connector, it provides a dedicated DC power solution for supported docking installations.
