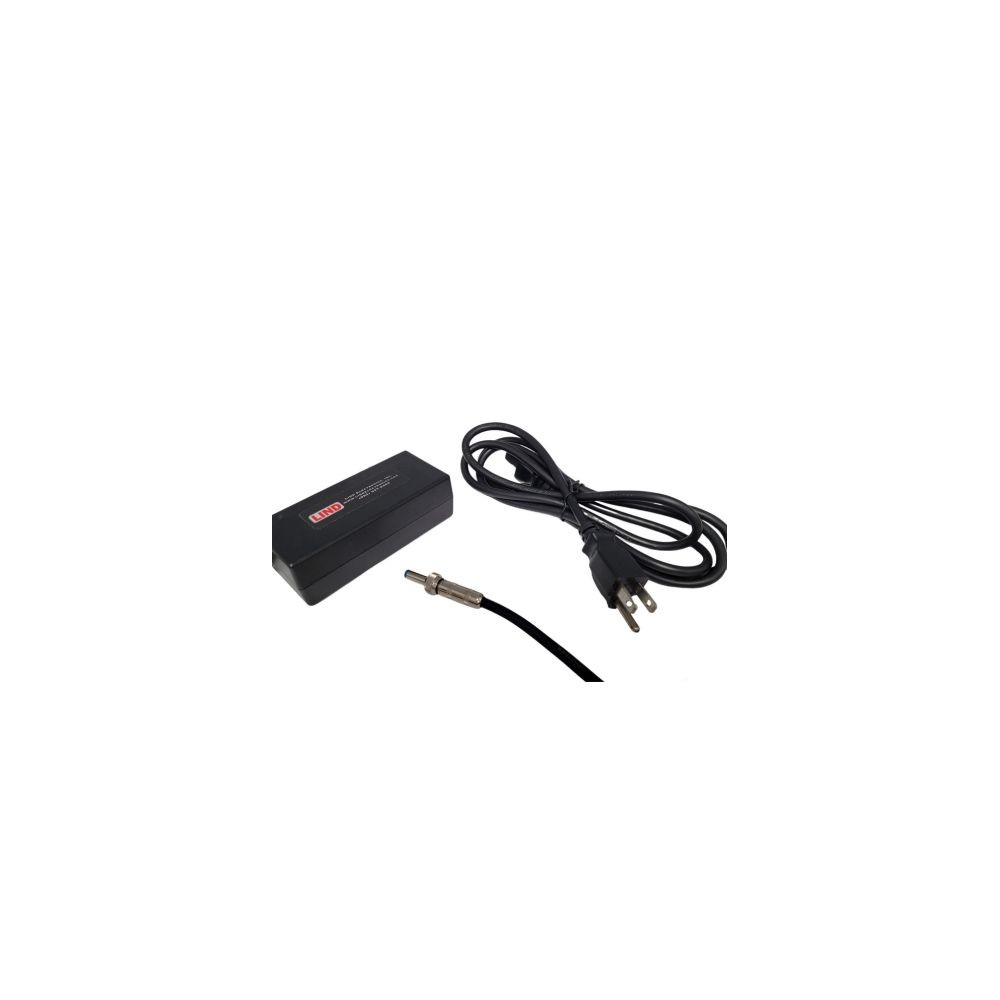

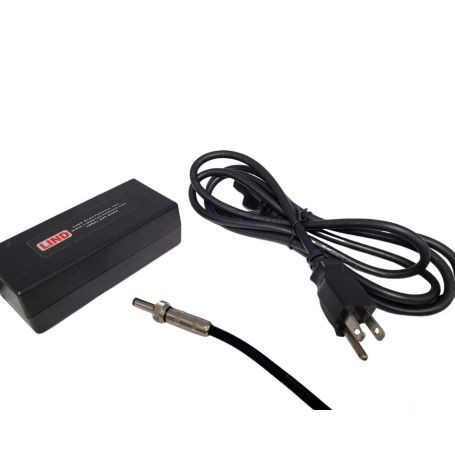

The Havis LPS-192 is a 120W US AC power supply designed for compatible Havis DS-ZEB-400 and DS-ZEB-500 series docking stations. With a wide 100–264V AC input range and a regulated 12V DC output rated at up to 10A, it provides a dedicated power solution for compatible mobile computing installations.
This power supply includes a hardwired 72-inch output cable with a straight threaded Switchcraft connector and a detachable 72-inch AC input cable fitted with a three-prong US NEMA 5-15P plug. Its cable configuration supports connection between an appropriate AC outlet and a compatible Havis docking station.
Key Features
- 120W power rating: Designed to power compatible Havis docking station installations.
- Wide AC input range: Accepts 100–264V AC input for supported electrical environments.
- 12V DC output: Provides a rated output current of 10A.
- Hardwired output cable: Includes a 72-inch output cable with a straight threaded Switchcraft connector.
- Detachable US AC cable: Includes a 72-inch input cable with a three-prong NEMA 5-15P plug.
Compatibility
The Havis LPS-192 is designed for compatible docking stations in these Havis product families:
- Havis DS-ZEB-400 Series
- Havis DS-ZEB-500 Series
These docking station families include models designed for selected Zebra rugged tablets, such as the Zebra ET80, ET85, ET60, and ET65. Verify the exact docking station model and its power requirements before ordering.
Important: The LPS-192 connects to a compatible Havis docking station and is not intended to connect directly to the tablet.
Technical Specifications
| Manufacturer | Havis |
|---|
| Model Number | LPS-192 |
|---|
| Product Type | US AC power supply |
|---|
| Power Rating | 120W |
|---|
| AC Input Voltage | 100–264V AC |
|---|
| DC Output Voltage | 12V DC |
|---|
| Output Current | 10A |
|---|
| AC Input Cable | Detachable 72-inch cable with three-prong US NEMA 5-15P plug |
|---|
| Output Cable | Hardwired 72-inch cable with straight threaded Switchcraft connector |
|---|
| Compatible Docking Stations | Havis DS-ZEB-400 and DS-ZEB-500 Series |
|---|
| Gross Weight | 0.75 lb |
|---|
Frequently Asked Questions
1. What is the Havis LPS-192 used for?
The LPS-192 supplies power to compatible Havis DS-ZEB-400 and DS-ZEB-500 series docking stations using an AC power outlet.
2. What is the input voltage range?
The power supply accepts 100–264V AC input, subject to the electrical requirements of the installation.
3. What is the DC output rating?
The LPS-192 provides 12V DC output at a rated current of 10A, corresponding to a 120W power rating.
4. Which docking stations are compatible?
It is designed for compatible Havis DS-ZEB-400 and DS-ZEB-500 series docking stations. Confirm the specific docking station model before purchasing.
5. Which cables are included?
The power supply includes a hardwired 72-inch output cable with a straight threaded Switchcraft connector and a detachable 72-inch AC input cable with a US NEMA 5-15P plug.
6. Can this power supply connect directly to a Zebra tablet?
No. The LPS-192 is designed to connect to a compatible Havis docking station rather than directly to the tablet.
Product Summary
The Havis LPS-192 120W US AC Power Supply provides 100–264V AC input and 12V DC output at 10A for compatible Havis DS-ZEB-400 and DS-ZEB-500 series docking stations. Its hardwired 72-inch output cable and detachable 72-inch US AC input cable provide the connections required for supported docking installations.
