The Havis LPS-187 is an isolated DC power supply designed for compatible Havis docking stations installed in vehicles with a 20–60V DC electrical system. With a 90W rated output, it is suitable for supported material-handling and forklift installations using compatible Dell docking solutions.

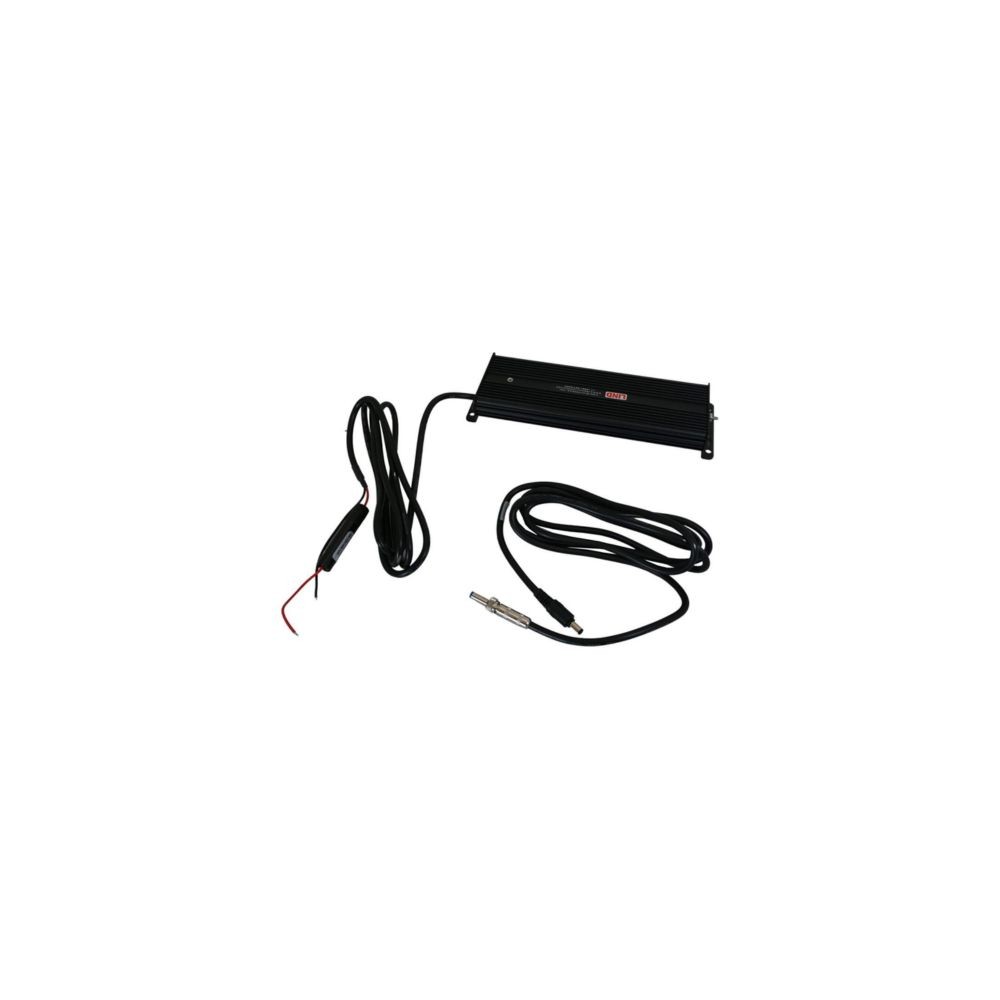

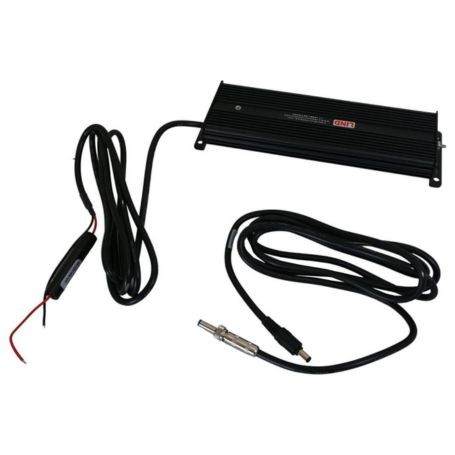

The power supply features an integrated 72-inch input cable with bare-wire leads for connection to an appropriate vehicle power source, such as a ChargeGuard system. A removable 72-inch output cable with a straight threaded Switchcraft connector connects the supply to the compatible Havis docking station. Mounting hardware is included.
Key Features
- 90W rated output: Provides power for compatible Havis docking station configurations.
- Isolated power design: Intended for supported vehicle installations requiring an isolated DC supply.
- 20–60V DC input range: Supports compatible higher-voltage vehicle electrical systems, including selected forklifts.
- Threaded output connector: Includes a removable 72-inch output cable with a straight threaded Switchcraft connector.
- Vehicle installation kit: Includes an integrated 72-inch bare-wire input cable and mounting hardware.
Compatibility
The Havis LPS-187 is specified for compatible Havis docking stations in the following series:
- DS-DELL-430 Series
- DS-DELL-900 and DS-DELL-1100 Series
- PKG-DELL-1000 and PKG-DELL-1200 Series
- PKG-DELL-1010 and PKG-DELL-1210 Series
Supported computer configurations include selected Dell rugged devices, such as the Dell Pro Rugged 14-inch and 13-inch computers, Dell Latitude 7230 Rugged Extreme Tablet, and Dell Latitude 7030 Rugged Extreme Tablet, when used with a compatible docking station.
Compatibility note: This power supply is designed to connect to a compatible Havis docking station, not directly to a tablet or computer. Confirm the docking station model and the vehicle's DC input voltage before ordering.
Technical Specifications
| Brand | Havis |
|---|
| Manufacturer Part Number | LPS-187 |
|---|
| Power Supply Brand | LIND |
|---|
| Product Type | Isolated DC power supply |
|---|
| Rated Output Power | 90W |
|---|
| Input Voltage Range | 20–60V DC |
|---|
| Output Current | 4.5A |
|---|
| Input Cable | 72 inches, integrated, with bare-wire leads |
|---|
| Output Cable | 72 inches, removable |
|---|
| Output Connector | Straight threaded Switchcraft connector |
|---|
| Dimensions | 9.25 × 3.0 × 1.12 inches |
|---|
| Mounting Hardware | Included |
|---|
| Compatible Docking Stations | DS-DELL-430, DS-DELL-900/1100, PKG-DELL-1000/1200, and PKG-DELL-1010/1210 Series |
|---|
Frequently Asked Questions
1. What is the Havis LPS-187 used for?
The LPS-187 supplies isolated DC power to compatible Havis docking stations installed in supported vehicle configurations.
2. What input voltage does the LPS-187 support?
It supports an input voltage range of 20–60V DC, intended for compatible higher-voltage vehicle systems.
3. What is the rated output power?
The LPS-187 is rated at 90W, with a specified output current of 4.5A.
4. Which docking stations are compatible?
Compatible series include DS-DELL-430, DS-DELL-900/1100, PKG-DELL-1000/1200, and PKG-DELL-1010/1210. Verify the exact model before purchase.
5. What is included in the kit?
The kit includes the LIND power supply, an integrated 72-inch bare-wire input cable, a removable 72-inch output cable with a straight threaded Switchcraft connector, and mounting hardware.
