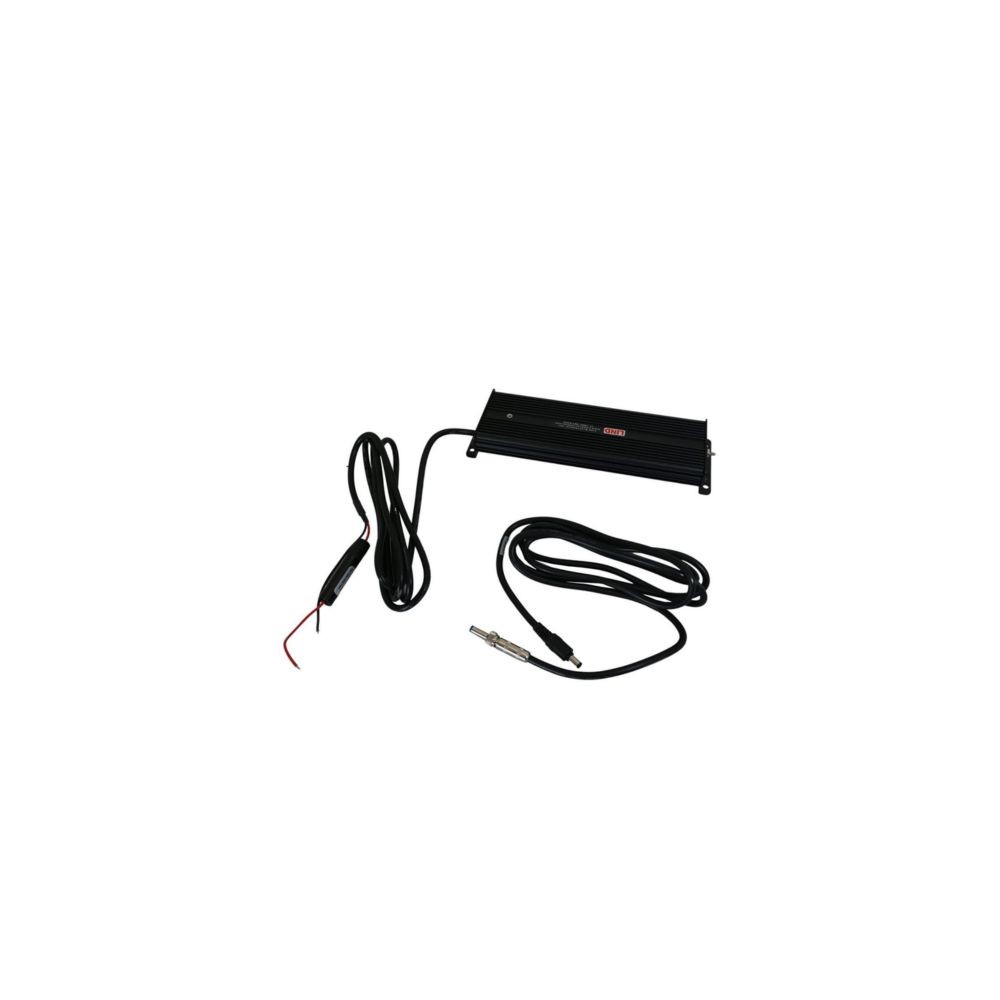

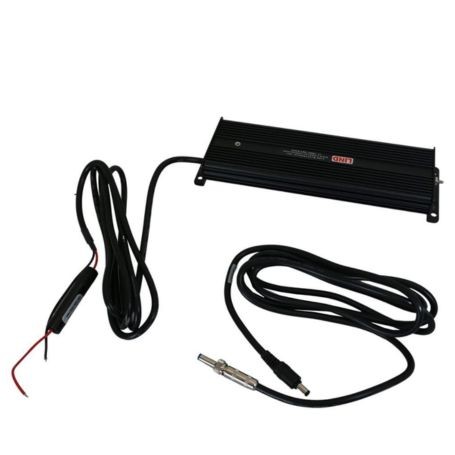

The Havis LPS-186 is a 100W isolated DC power supply designed for compatible Havis docking stations used with selected Dell rugged tablets. It accepts a vehicle DC input voltage of 12–32V and provides a 20V DC output for supported docking configurations.
The isolated power design supports installations where electrical isolation is required. The unit features an integrated input cable with bare-wire leads for connection to a suitable vehicle power source, such as a ChargeGuard system. A removable output cable with a straight threaded Switchcraft connector connects the supply to a compatible Havis docking station.
Key Features
- 100W power rating: Provides power for compatible Havis docking stations.
- Isolated DC power: Designed for vehicle installations requiring an isolated power supply.
- 12–32V DC input: Supports a broad DC input range for compatible vehicle electrical systems.
- Threaded Switchcraft connector: Includes a removable output cable with a straight threaded connector for supported docking stations.
- Vehicle installation components: Includes an integrated bare-wire input cable and mounting hardware.
Compatibility
The Havis LPS-186 is specified for compatible docking stations in these series:
- Havis DS-DELL-900 Series
- Havis DS-DELL-1100 Series
- Havis PKG-DELL-1000 Series
- Havis PKG-DELL-1200 Series
Supported device configurations include selected Dell rugged tablets, such as the Dell Latitude 7230 Rugged Extreme Tablet and Dell Pro Rugged 10 (7030) Tablet, when used with a compatible docking station.
Compatibility note: This power supply is intended to connect to a compatible Havis docking station, not directly to the tablet. Verify the exact docking station model and its power requirements before ordering.
Technical Specifications
| Brand | Havis |
|---|
| Manufacturer Part Number | LPS-186 |
|---|
| Product Type | Isolated DC power supply |
|---|
| Rated Output Power | 100W |
|---|
| Input Voltage Range | 12–32V DC |
|---|
| Output Voltage | 20V DC |
|---|
| Input Cable | Integrated cable with bare-wire leads |
|---|
| Output Cable | Removable, 72 inches |
|---|
| Output Connector | Straight threaded Switchcraft connector |
|---|
| Mounting Hardware | Included |
|---|
| Compatible Docking Stations | DS-DELL-900, DS-DELL-1100, PKG-DELL-1000 and PKG-DELL-1200 Series |
|---|
Frequently Asked Questions
1. What is the Havis LPS-186 used for?
The LPS-186 supplies isolated DC power to compatible Havis docking stations in vehicle-based installations.
2. What input voltage does the LPS-186 support?
It accepts 12–32V DC input.
3. What is the output power rating?
The LPS-186 is rated at 100W and provides a 20V DC output.
4. Which docking stations are compatible?
It is specified for compatible DS-DELL-900, DS-DELL-1100, PKG-DELL-1000 and PKG-DELL-1200 Series docking stations. Confirm the exact model before purchasing.
5. What is included with the power supply?
The kit includes the 100W isolated power supply, an integrated bare-wire input cable, a removable output cable with a straight threaded Switchcraft connector, and mounting hardware.
