Detailed Specifications

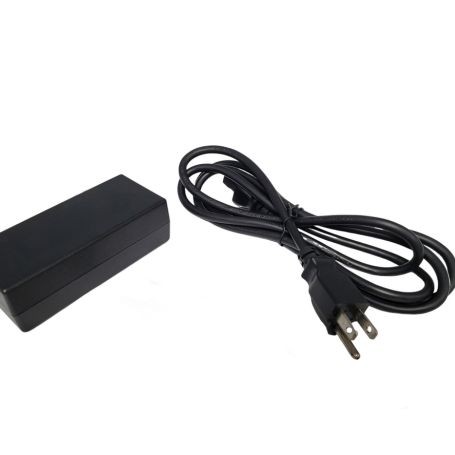

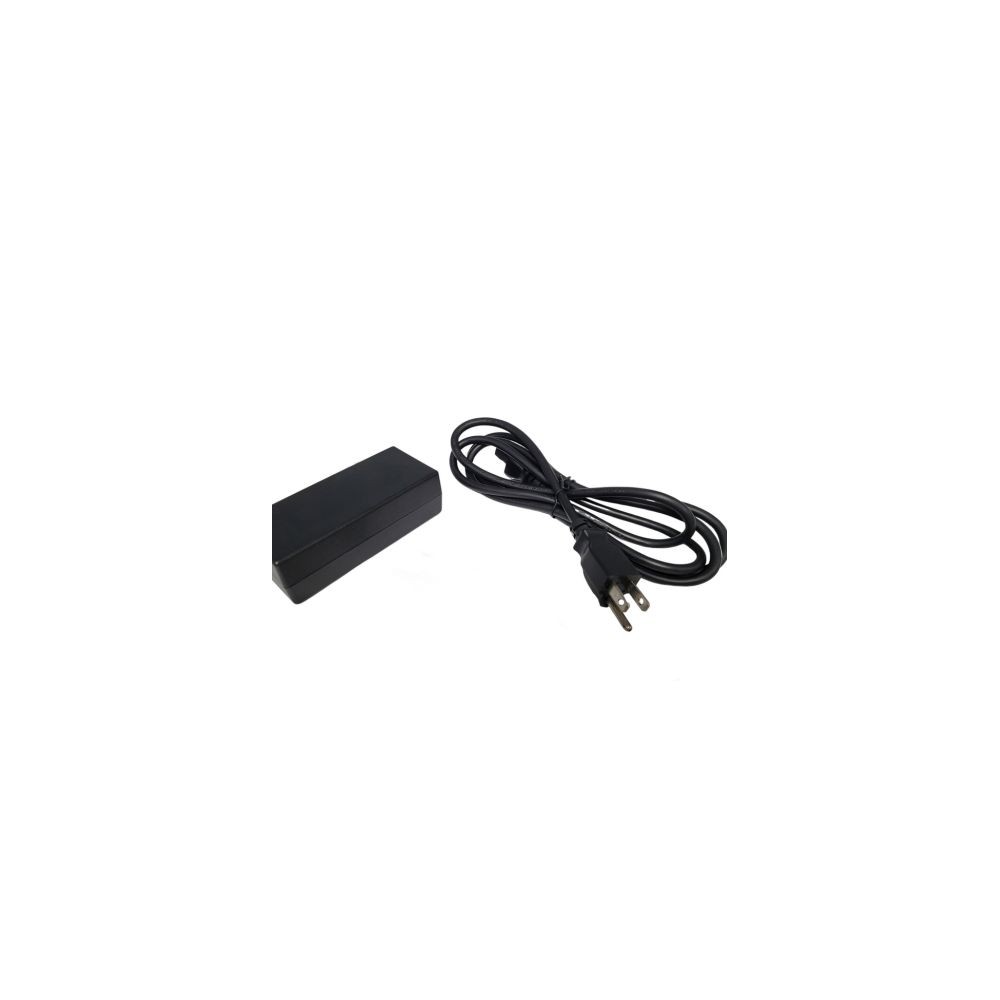

The Havis LPS-183 is a 120W AC power supply designed specifically for compatible Havis DS-TAB-400 Series docking stations. It converts AC input power into a regulated 24V DC output to power the supported docking station.
The power supply accepts 100–240V AC input and provides up to 5A of output current. Its hardwired 60-inch output cable features a straight 2.5 × 5.5mm connector, while the detachable 72-inch input cable uses a three-prong US NEMA 5-15P plug.
Key Features
- 120W power rating: Supplies power to compatible Havis DS-TAB-400 Series docking stations.
- Wide AC input range: Supports 100–240V AC input.
- 24V DC output: Delivers 24V DC at up to 5A.
- Straight barrel connector: Features a hardwired 60-inch output cable with a 2.5 × 5.5mm connector.
- Detachable AC input cable: Includes a 72-inch input cable with a US NEMA 5-15P three-prong plug.
Compatibility
The Havis LPS-183 is designed for compatible Havis DS-TAB-400 Series docking stations.
Important compatibility note: This power supply connects to a compatible docking station and is not intended to connect directly to the tablet. Confirm the exact docking station model and power connector requirements before ordering.
Technical Specifications
| Brand | Havis |
|---|
| Manufacturer Part Number | LPS-183 |
|---|
| Product Type | AC power supply |
|---|
| Rated Output Power | 120W |
|---|
| Input Voltage | 100–240V AC |
|---|
| Output Voltage | 24V DC |
|---|
| Output Current | 5A |
|---|
| Output Cable Length | 60 inches, hardwired |
|---|
| Output Connector | Straight 2.5 × 5.5mm barrel connector |
|---|
| AC Input Cable Length | 72 inches, detachable |
|---|
| AC Plug Type | US NEMA 5-15P, three-prong plug |
|---|
| Compatible Docking Stations | Havis DS-TAB-400 Series |
|---|
| Gross Weight | 2.5 lb |
|---|
Frequently Asked Questions
1. What is the Havis LPS-183 used for?
The LPS-183 supplies AC-to-DC power to compatible Havis DS-TAB-400 Series docking stations.
2. What is the output voltage and current?
It provides 24V DC at up to 5A, with a rated output power of 120W.
3. Which docking stations are compatible?
The LPS-183 is specified for compatible Havis DS-TAB-400 Series docking stations. Verify the exact dock model before purchasing.
4. What type of output connector does it use?
It uses a straight 2.5 × 5.5mm barrel connector on a hardwired 60-inch output cable.
5. Can the LPS-183 connect directly to a tablet?
No. It is designed to connect to a compatible Havis docking station rather than directly to the tablet.
