Detailed Specifications

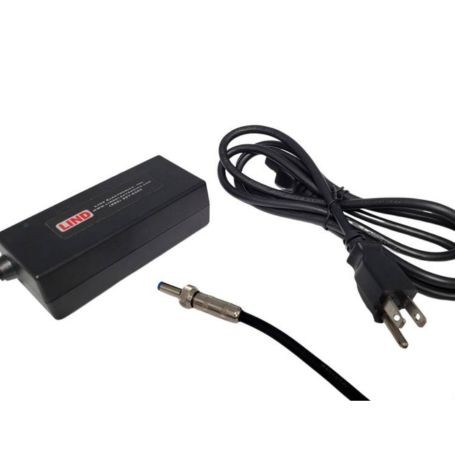

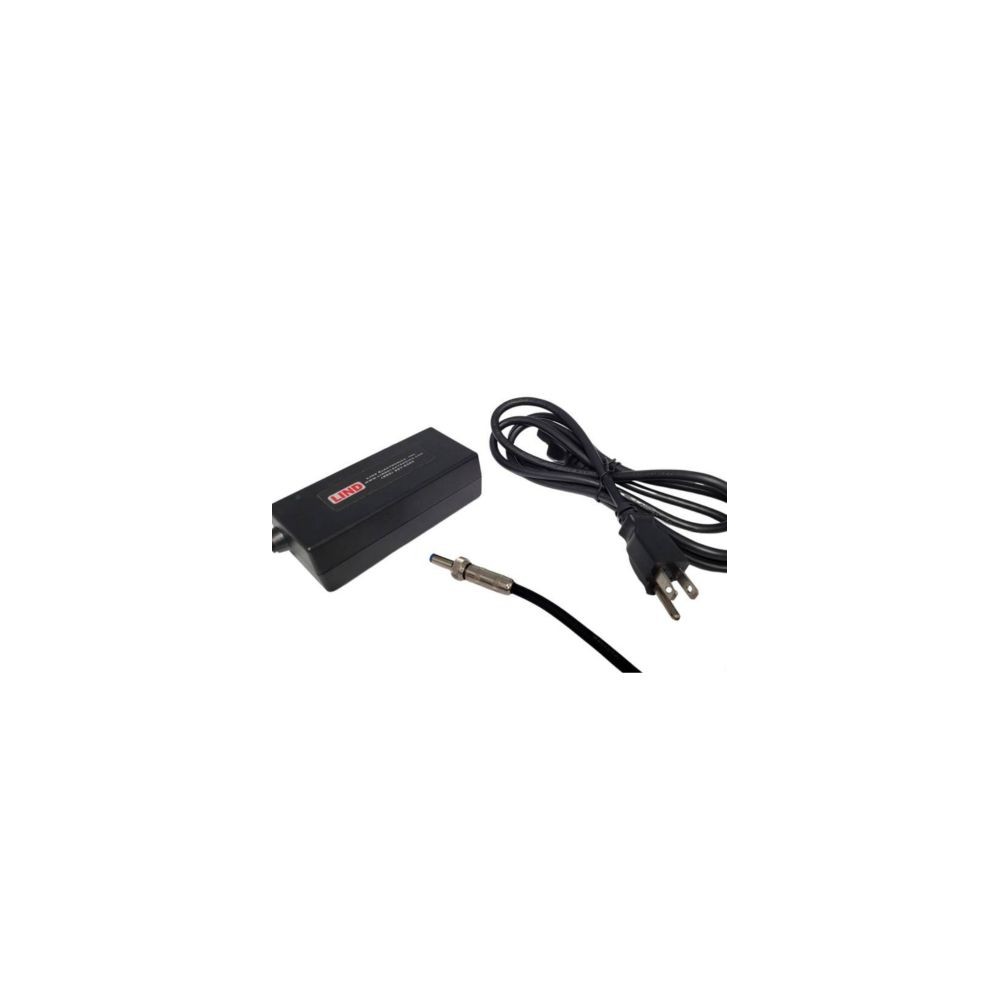

The Havis LPS-181 is a 90W AC power supply designed for compatible Havis docking stations in the DS-DELL-900 and DS-DELL-1100 Series. It converts standard AC power into a 20V DC output to power the supported docking station.
The LPS-181 accepts a wide AC input range of 100–264V and supplies up to 4.5A at 20V DC. Its hardwired 72-inch output cable features a straight threaded Switchcraft connector, while the detachable 72-inch input cable uses a three-prong US NEMA 5-15P plug.
Key Features
- 90W power output: Supplies power to compatible Havis docking stations.
- Wide AC input range: Supports 100–264V AC input.
- 20V DC output: Delivers 20V DC at 4.5A.
- Secure threaded connector: Features a hardwired 72-inch output cable with a straight threaded Switchcraft connector.
- Detachable AC cable: Includes a 72-inch input cable with a US NEMA 5-15P three-prong plug.
Compatibility
The Havis LPS-181 is designed for use with these compatible Havis docking station series:
- Havis DS-DELL-900 Series
- Havis DS-DELL-1100 Series
Important: This power supply connects to a compatible Havis docking station. It is not intended to connect directly to the tablet or computer. Confirm the exact docking station model and connector requirements before ordering.
Technical Specifications
| Brand | Havis |
|---|
| Manufacturer Part Number | LPS-181 |
|---|
| Product Type | AC power supply |
|---|
| Power Rating | 90W |
|---|
| Input Voltage | 100–264V AC |
|---|
| Output Voltage | 20V DC |
|---|
| Output Current | 4.5A |
|---|
| Output Cable | 72 inches, hardwired |
|---|
| Output Connector | Straight threaded Switchcraft connector |
|---|
| AC Input Cable | 72 inches, detachable |
|---|
| AC Plug Type | US NEMA 5-15P, three-prong plug |
|---|
| Compatible Docking Stations | Havis DS-DELL-900 and DS-DELL-1100 Series |
|---|
Frequently Asked Questions
1. What is the Havis LPS-181 used for?
The LPS-181 provides AC-to-DC power for compatible Havis DS-DELL-900 and DS-DELL-1100 Series docking stations.
2. What is the output rating of the LPS-181?
It provides 20V DC at 4.5A, for a rated output power of 90W.
3. Which docking stations are compatible with this power supply?
It is specified for compatible Havis DS-DELL-900 and DS-DELL-1100 Series docking stations. Check the exact dock model before purchasing.
4. What type of output connector does it use?
The power supply has a hardwired 72-inch output cable with a straight threaded Switchcraft connector.
5. Can the LPS-181 connect directly to a tablet or computer?
No. It is designed to connect to a compatible Havis docking station rather than directly to the tablet or computer.
