Detailed Specifications

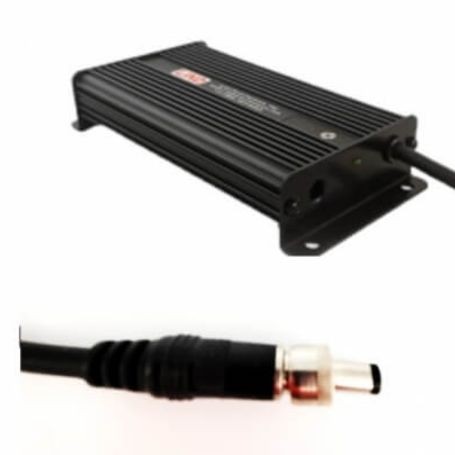

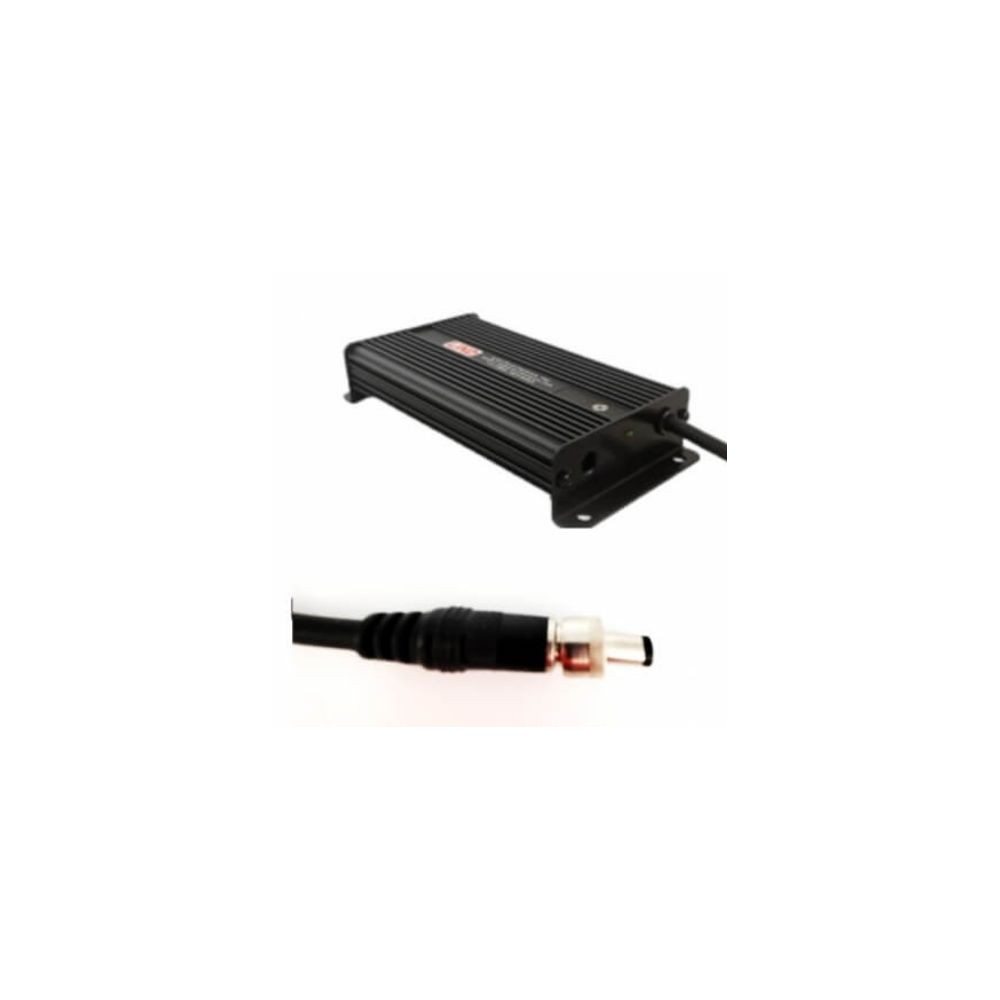

The Havis LPS-174 is a 60W isolated DC power supply designed for compatible Havis Zebra docking station configurations. It accepts a 10–32V DC input and delivers a 12V DC output at up to 5A.
The LPS-174 kit includes an integrated 72-inch bare-wire input cable, a removable 72-inch output cable with a threaded Switchcraft connector, and mounting hardware. The bare-wire input supports connection to a suitable power source in installations designed for this power supply.
Key Features
- 60W power rating: Supplies up to 60 watts for compatible docking station configurations.
- Isolated DC design: Provides isolated power conversion for supported installations.
- 10–32V DC input: Supports a broad DC input voltage range.
- 12V DC output: Delivers up to 5A output current.
- 72-inch input and output cables: Includes an integrated bare-wire input cable and a removable output cable.
- Threaded Switchcraft connector: Provides the specified output connection for compatible Havis Zebra docks.
- Mounting hardware included: Supplied with hardware for the intended installation.
Technical Specifications
| Brand | Havis |
|---|
| Model | LPS-174 |
|---|
| Product Type | Isolated DC power supply |
|---|
| Rated Output Power | 60W |
|---|
| Input Voltage Range | 10–32V DC |
|---|
| Output Voltage | 12V DC |
|---|
| Output Current | 5A |
|---|
| Input Cable | 72-inch integrated cable with bare-wire leads |
|---|
| Output Cable | 72-inch removable cable |
|---|
| Output Connector | Threaded Switchcraft connector |
|---|
| Compatible Docking Stations | Selected Havis DS-ZEB-100, DS-ZEB-200 and DS-ZEB-300 Series docking stations |
|---|
| Dimensions | 6.0 × 3.0 × 1.14 inches |
|---|
| Included Accessories | Integrated input cable, removable output cable and mounting hardware |
|---|
Compatibility Notes
Havis lists the LPS-174 for compatible Zebra docking stations in the DS-ZEB-100, DS-ZEB-200 and DS-ZEB-300 families. The manufacturer specifically describes the threaded output cable for supported docking stations without an internal isolated power supply. Check the complete docking station model and its power configuration before ordering.
Frequently Asked Questions
1. What is the Havis LPS-174?
The Havis LPS-174 is a 60W isolated DC power supply for compatible Havis Zebra docking stations.
2. What input voltage does it support?
It supports a DC input range of 10–32V.
3. What are the output specifications?
The power supply provides 12V DC output at 5A, with a rated power of 60W.
4. How long are the cables?
The kit includes a 72-inch integrated bare-wire input cable and a removable 72-inch output cable.
5. What type of output connector does it use?
The output cable uses a threaded Switchcraft connector designed for compatible Havis Zebra docking stations.
6. Does the kit include mounting hardware?
Yes. Mounting hardware is included with the power supply kit.
