Detailed Specifications

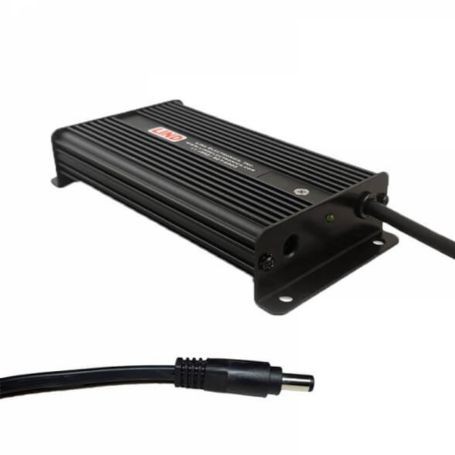

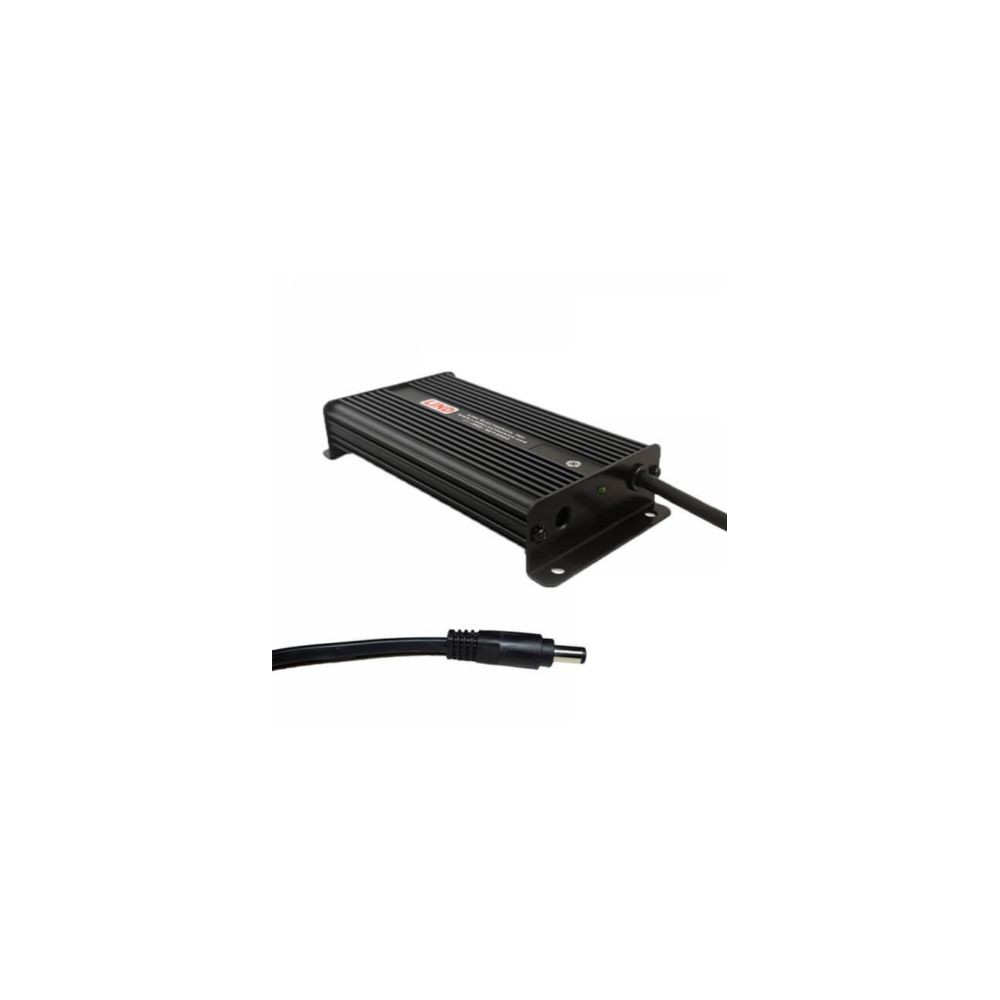

The Havis LPS-171 is a 60W isolated DC power supply designed for compatible Havis DS-TAB-100 and DS-APP-1X0 docking stations. It accepts a 20–60V DC input and delivers a 12V DC output at up to 5A.
The LPS-171 features an integrated bare-wire input cable and a removable output cable with a straight molded 2.5 × 5.5mm barrel connector. Its wide input range supports compatible docking installations that require power from higher-voltage DC systems.
Key Features
- 60W power rating: Supplies up to 60 watts for compatible Havis docking stations.
- Isolated power design: Provides an isolated DC power solution for supported installations.
- Wide DC input range: Accepts 20–60V DC input.
- 12V DC output: Provides output at up to 5A.
- Integrated input cable: Includes a bare-wire input cable for the intended installation.
- Removable output cable: Features a straight molded 2.5 × 5.5mm barrel connector.
Technical Specifications
| Brand | Havis |
|---|
| Model | LPS-171 |
|---|
| Product Type | Isolated DC power supply |
|---|
| Rated Power | 60W |
|---|
| Input Voltage | 20–60V DC |
|---|
| Output Voltage | 12V DC |
|---|
| Output Current | 5A |
|---|
| Input Cable | Integrated bare-wire cable |
|---|
| Output Cable | Removable output cable |
|---|
| Output Connector | Straight molded 2.5 × 5.5mm barrel connector |
|---|
| Compatible Docking Stations | Havis DS-TAB-100 Series and DS-APP-1X0 Series |
|---|
| Dimensions | 6.00 × 3.00 × 1.25 inches (152 × 76 × 32mm) |
|---|
| Gross Weight | 2 lb |
|---|
Compatibility Notes
The LPS-171 is listed for compatible Havis DS-TAB-100 and DS-APP-1X0 docking stations. Before ordering, confirm the exact docking station model, required input voltage, and output connector specifications. Do not assume compatibility with other devices based only on a similar-looking connector.
Frequently Asked Questions
1. What is the Havis LPS-171?
The Havis LPS-171 is a 60W isolated DC power supply for compatible Havis tablet docking stations.
2. What input voltage does it support?
It accepts a DC input voltage range of 20–60V.
3. What are its output specifications?
It provides 12V DC output at 5A, with a rated power of 60W.
4. What output connector does it use?
The removable output cable has a straight molded 2.5 × 5.5mm barrel connector.
5. Which docking stations are compatible?
Havis lists the DS-TAB-100 and DS-APP-1X0 docking station families as compatible.
6. Does the power supply include cables?
Yes. It features an integrated bare-wire input cable and a removable output cable.
