Detailed Specifications

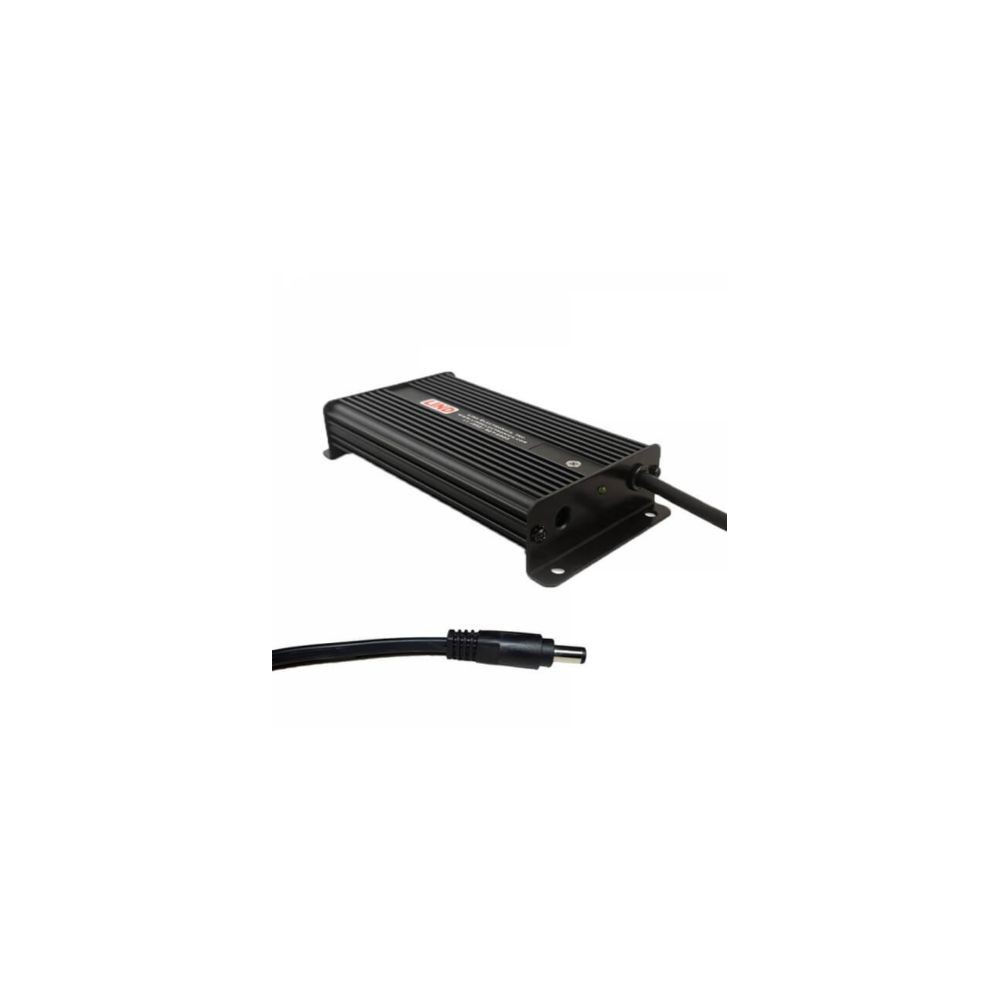

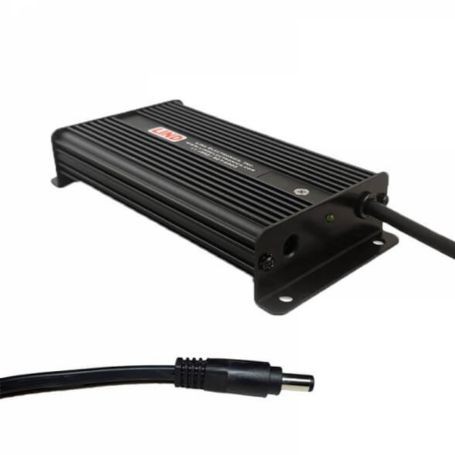

The Havis LPS-170 is a 60W isolated DC power supply designed for compatible Havis DS-TAB-100 Series and DS-APP-1X0 docking stations. It accepts a 12–32V DC input and delivers a 12V DC output at up to 5A.
This power supply features an integrated bare-wire input cable and a removable output cable with a straight molded 2.5 × 5.5mm barrel connector. Its isolated design makes it suitable for supported docking applications that require a wider DC input range.
Key Features
- 60W rated output: Provides up to 60 watts for compatible docking station configurations.
- Isolated power design: Designed for supported applications requiring electrical isolation.
- Wide DC input range: Accepts 12–32V DC input.
- 12V DC output: Delivers up to 5A output current.
- Integrated input cable: Includes a bare-wire input cable for the intended installation.
- Removable output cable: Features a straight molded 2.5 × 5.5mm barrel connector.
Technical Specifications
| Brand | Havis |
|---|
| Model | LPS-170 |
|---|
| Product Type | Isolated DC power supply |
|---|
| Rated Power | 60W |
|---|
| Input Voltage | 12–32V DC |
|---|
| Output Voltage | 12V DC |
|---|
| Maximum Output Current | 5A |
|---|
| Input Cable | Integrated bare-wire cable |
|---|
| Output Cable | Removable cable |
|---|
| Output Connector | Straight molded 2.5 × 5.5mm barrel connector |
|---|
| Compatible Docking Stations | Havis DS-TAB-100 Series and DS-APP-1X0 Series, subject to exact model compatibility |
|---|
| Dimensions | 6.00 × 3.00 × 1.25 inches (152 × 76 × 32mm) |
|---|
| Gross Weight | 2 lb |
|---|
Compatibility Notes
The LPS-170 is listed for compatible Havis DS-TAB-100 Series and DS-APP-1X0 Series docking stations. Before installation, verify the exact docking station model, required input range, and connector specifications. Do not assume compatibility with other devices simply because they use a similar barrel connector.
Frequently Asked Questions
1. What is the Havis LPS-170?
The Havis LPS-170 is a 60W isolated DC power supply designed for compatible Havis tablet docking stations.
2. What input voltage does it support?
It supports a DC input range of 12–32V.
3. What are the output specifications?
The power supply provides 12V DC output at up to 5A, with a rated power of 60W.
4. Which output connector does it use?
It uses a removable output cable with a straight molded 2.5 × 5.5mm barrel connector.
5. Which docking stations are compatible?
Havis lists compatible DS-TAB-100 Series and DS-APP-1X0 Series docking stations. Confirm the exact model before ordering.
6. Does it include an input cable?
Yes. The LPS-170 has an integrated bare-wire input cable and a removable output cable.
