Detailed Specifications

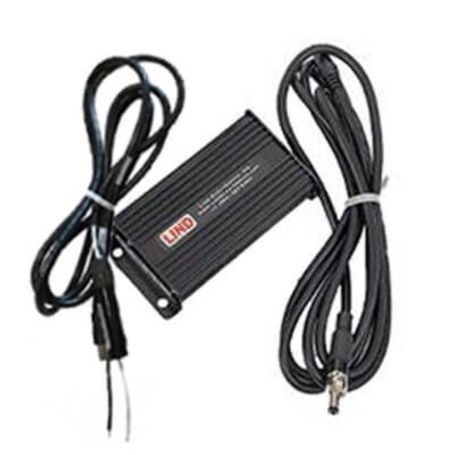

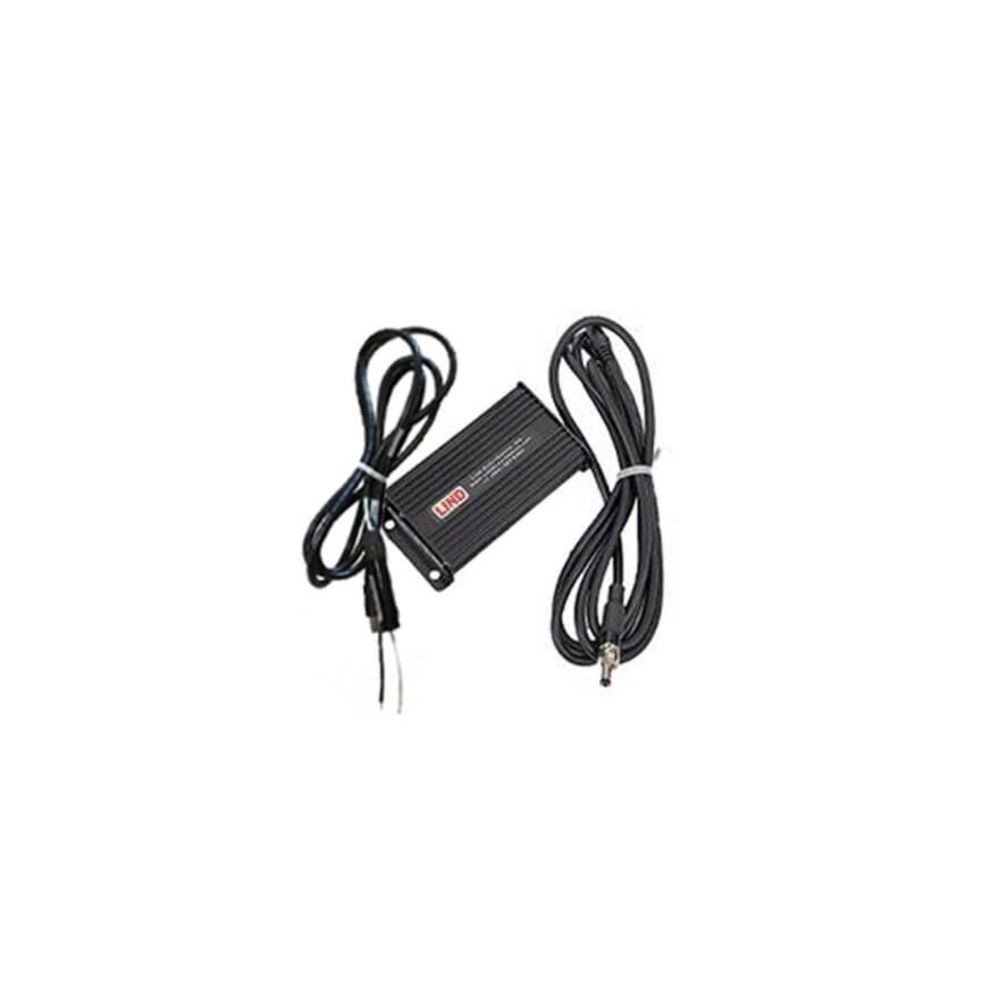

The Havis LPS-163 is a 24W non-isolated power supply designed for use with the Havis TSD-101 Touch Screen Display or a compatible USB-C hub. It accepts an 11–16V DC input and supplies 12V DC output at 2A, making it suitable for supported Havis equipment requiring these power specifications.
The LPS-163 includes a 72-inch fused bare-wire input cable, a 72-inch output cable with a straight threaded connector, and a hardware kit. Check the connector and electrical requirements of your specific device before installation.
Key Features
- 24W rated power: Designed to power compatible Havis equipment.
- 11–16V DC input: Supports the specified DC input voltage range.
- 12V DC output: Provides regulated power at 2A output current.
- Fused input cable: Includes a 72-inch bare-wire input cable with a fuse.
- Complete cable and hardware package: Includes a 72-inch output cable and hardware kit.
Technical Specifications
| Brand | Havis |
|---|
| Model | LPS-163 |
|---|
| Product Type | Non-isolated DC power supply |
|---|
| Rated Power | 24W |
|---|
| Input Voltage | 11–16V DC |
|---|
| Output Voltage | 12V DC |
|---|
| Input Current | 5A |
|---|
| Output Current | 2A |
|---|
| Input Cable | 72-inch fused bare-wire cable |
|---|
| Output Cable | 72 inches |
|---|
| Output Connector | Straight threaded connector |
|---|
| Compatible Equipment | Havis TSD-101 Touch Screen Display or compatible USB-C hub |
|---|
| Included Accessories | Fused bare-wire input cable, output cable, and hardware kit |
|---|
| Gross Weight | 2 lb |
|---|
Compatibility Notes
The LPS-163 is specified for a Havis TSD-101 Display or compatible USB-C hub. Verify that your equipment requires a 12V DC supply and supports the straight threaded output connector before connecting the power supply. Do not assume compatibility with other Havis displays or docking stations based solely on brand or connector appearance.
Frequently Asked Questions
1. What is the Havis LPS-163?
The Havis LPS-163 is a 24W non-isolated DC power supply for compatible Havis TSD-101 displays or USB-C hubs.
2. What input voltage does the LPS-163 support?
It supports an input range of 11–16V DC.
3. What are its output specifications?
The power supply provides 12V DC output at 2A, with a rated power of 24W.
4. How long are the included cables?
The package includes a 72-inch fused bare-wire input cable and a 72-inch output cable.
5. What connector does the output cable use?
The output cable uses a straight threaded connector.
6. What is included with the power supply?
The package includes the power supply, fused bare-wire input cable, output cable, and hardware kit.
