Detailed Specifications

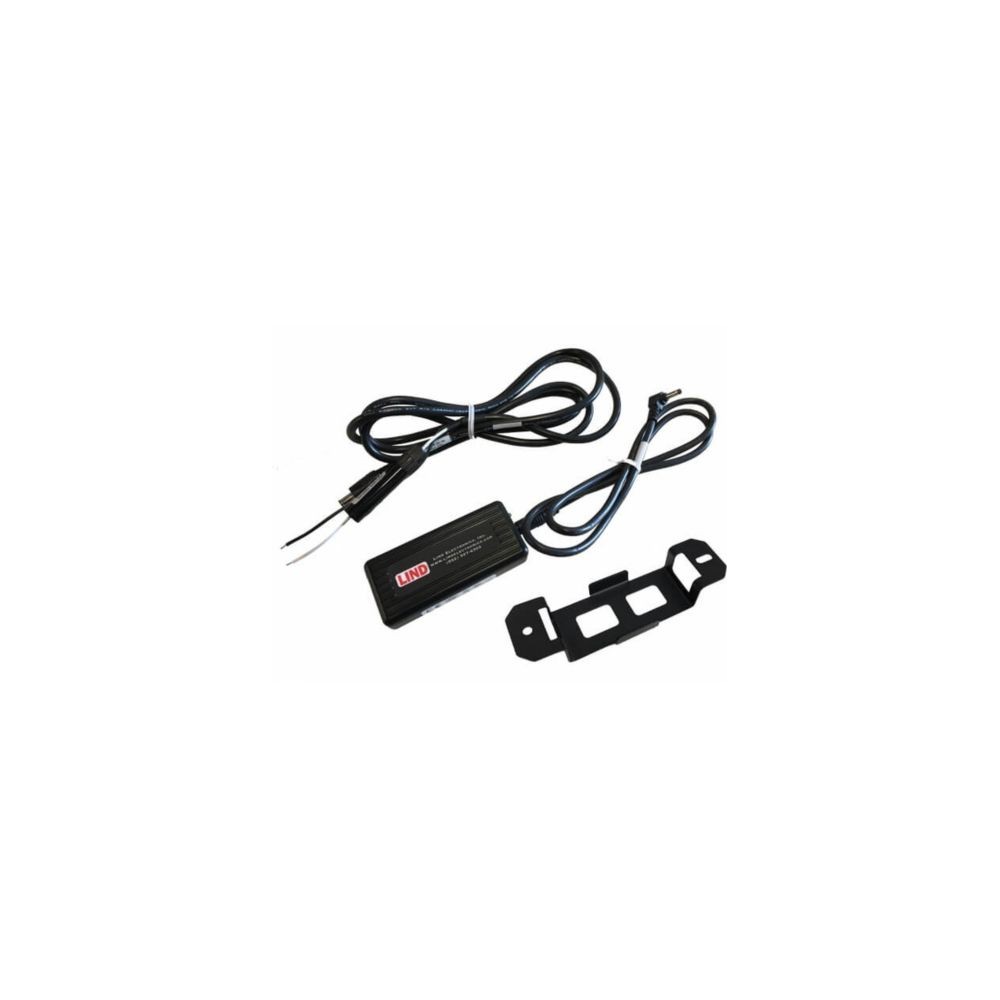

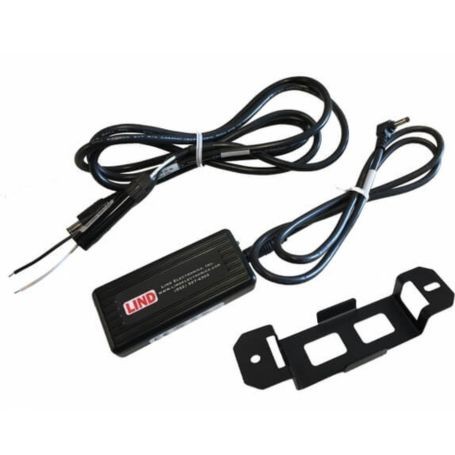

The Havis LPS-160 is a 10W non-isolated power supply designed for compatible Panasonic DS-PAN-1300 Series docking stations. It features a wide input voltage range and a right-angle barrel connector specific to supported Panasonic Toughbook L1 and S1 docking configurations.
This power supply is intended for use with compatible Havis docking hardware. Verify the exact docking station model and connector requirements before purchasing to ensure the correct power supply is selected.
Key Features
- 10W power rating: Designed for compatible Panasonic docking station configurations.
- Non-isolated design: A non-isolated power supply for its specified application.
- Wide input range: Designed to support a broad DC input voltage range; consult Havis documentation for exact electrical limits.
- Right-angle barrel connector: Uses a connector specified for the compatible Panasonic docking configuration.
- Model-specific compatibility: Listed for Havis DS-PAN-1300 Series docking stations.
Technical Specifications
| Brand | Havis |
|---|
| Model | LPS-160 |
|---|
| Product Type | Non-isolated power supply |
|---|
| Rated Power | 10W |
|---|
| Input Voltage | Wide-range DC input; exact limits should be confirmed in the manufacturer's documentation |
|---|
| Output Voltage and Current | Confirm from the official product specification before use |
|---|
| Output Connector | Model-specific right-angle barrel connector |
|---|
| Compatible Docking Stations | Havis DS-PAN-1300 Series |
|---|
| Associated Device Family | Panasonic Toughbook L1 and S1 configurations, where supported by the specific docking station |
|---|
Compatibility Notes
The LPS-160 is listed for compatible Havis DS-PAN-1300 Series docking stations. Product documentation describes a connector specific to the supported Panasonic configuration. Check the docking station part number and the manufacturer's electrical specifications before connecting the power supply.
Frequently Asked Questions
1. What is the Havis LPS-160?
The Havis LPS-160 is a 10W non-isolated power supply for compatible Panasonic docking station configurations.
2. Which docking stations is it designed for?
Havis lists the LPS-160 for the DS-PAN-1300 Series docking stations.
3. What type of connector does it use?
It uses a right-angle barrel connector specified for the compatible docking configuration.
4. Is it compatible with every Panasonic Toughbook dock?
No. Compatibility should be confirmed against the exact docking station model and connector requirements.
5. What is its output voltage?
The output voltage and current should be verified using the official Havis specification for LPS-160 before use.
6. What should be checked before ordering?
Confirm the docking station part number, connector type, and electrical requirements to ensure the LPS-160 is the correct replacement or accessory.
