Detailed Specifications

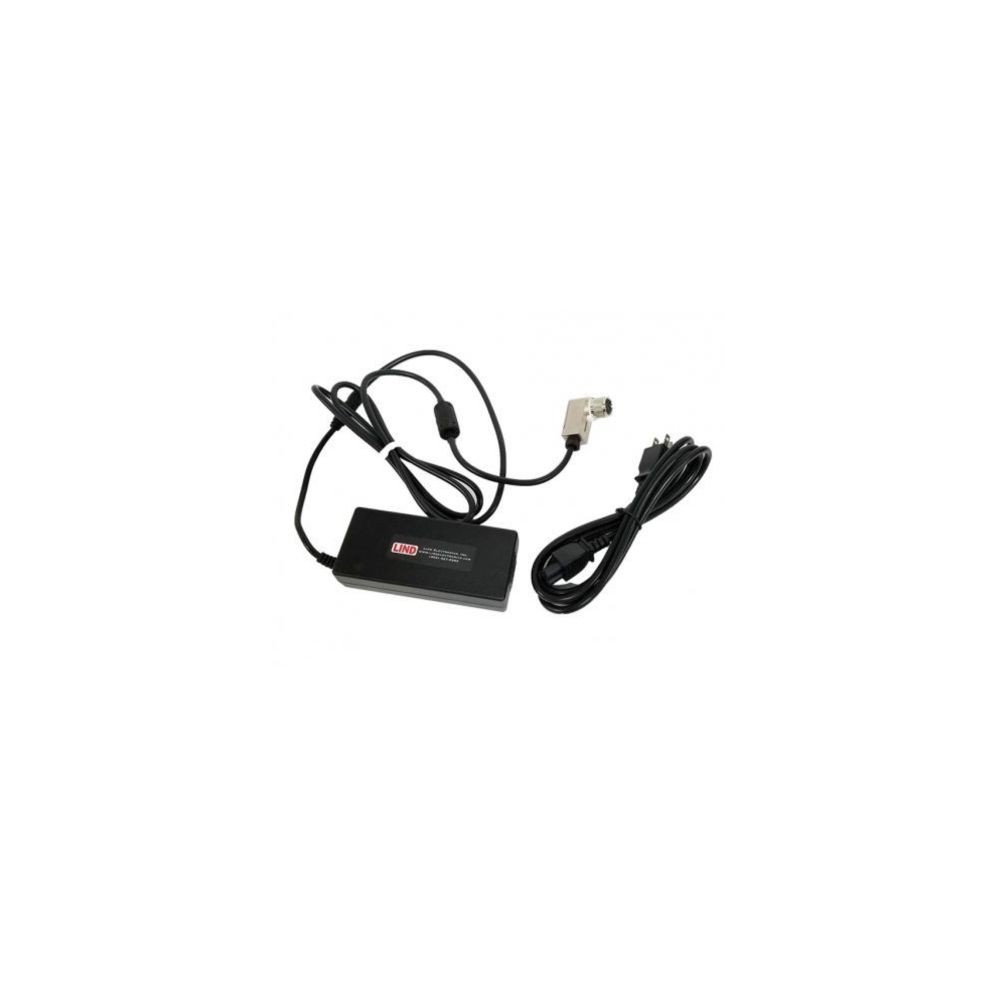

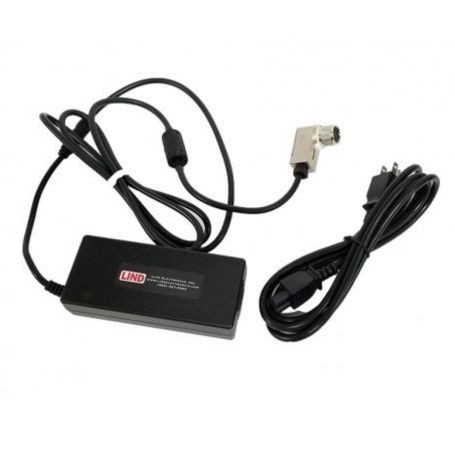

The Havis LPS-158 is a 90W AC power supply designed for Havis DS-DELL-700 Series docking stations. It delivers 16V DC output and includes a 72-inch output cable with the dock-specific Amphenol connector. The AC input cable is also 72 inches long and features a US NEMA 5-15P plug.
Designed for compatible Havis docking solutions, the LPS-158 supports Dell Latitude Rugged 12-inch tablets, including the Latitude 7212 and 7220, when used with the appropriate DS-DELL-700 Series docking station.
Key Features
- 90W power output: Provides power for compatible Havis docking station configurations.
- AC input: Supports an input voltage range of 110–240V AC.
- 16V DC output: Supplies the specified DC output voltage for the compatible docking station.
- 72-inch output cable: Includes an output cable with a dock-specific Amphenol connector.
- US AC plug: Includes a 72-inch AC input cable with a NEMA 5-15P plug.
Technical Specifications
| Brand | Havis |
|---|
| Model | LPS-158 |
|---|
| Product Type | AC Power Supply |
|---|
| Rated Power | 90W |
|---|
| AC Input Voltage | 110–240V AC |
|---|
| DC Output Voltage | 16V DC |
|---|
| Input Cable | 72 inches, with US NEMA 5-15P AC plug |
|---|
| Output Cable | 72 inches, with Amphenol connector |
|---|
| Compatible Docking Stations | Havis DS-DELL-700 Series |
|---|
| Compatible Computers | Dell Latitude Rugged 12-inch tablets, including models 7212 and 7220 |
|---|
| Gross Weight | 2 lb |
|---|
Compatibility Notes
The LPS-158 is specified for Havis DS-DELL-700 Series docking stations. Confirm that your docking station and computer model are compatible before ordering. This power supply should not be assumed to fit other docking station series based on connector appearance alone.
Frequently Asked Questions
1. What is the Havis LPS-158?
The Havis LPS-158 is a 90W AC power supply designed for Havis DS-DELL-700 Series docking stations.
2. What is the output voltage?
The specified DC output voltage is 16V.
3. Which docking stations are compatible?
The LPS-158 is listed for Havis DS-DELL-700 Series docking stations.
4. Which computers are listed as compatible?
Listed compatible computers include Dell Latitude Rugged 12-inch tablets, specifically the 7212 and 7220, when used with the appropriate docking station.
5. How long are the cables?
The power supply includes a 72-inch AC input cable and a 72-inch DC output cable with an Amphenol connector.
6. Does it include a US AC plug?
Yes. The input cable is specified with a US NEMA 5-15P AC plug.
