Detailed Specifications

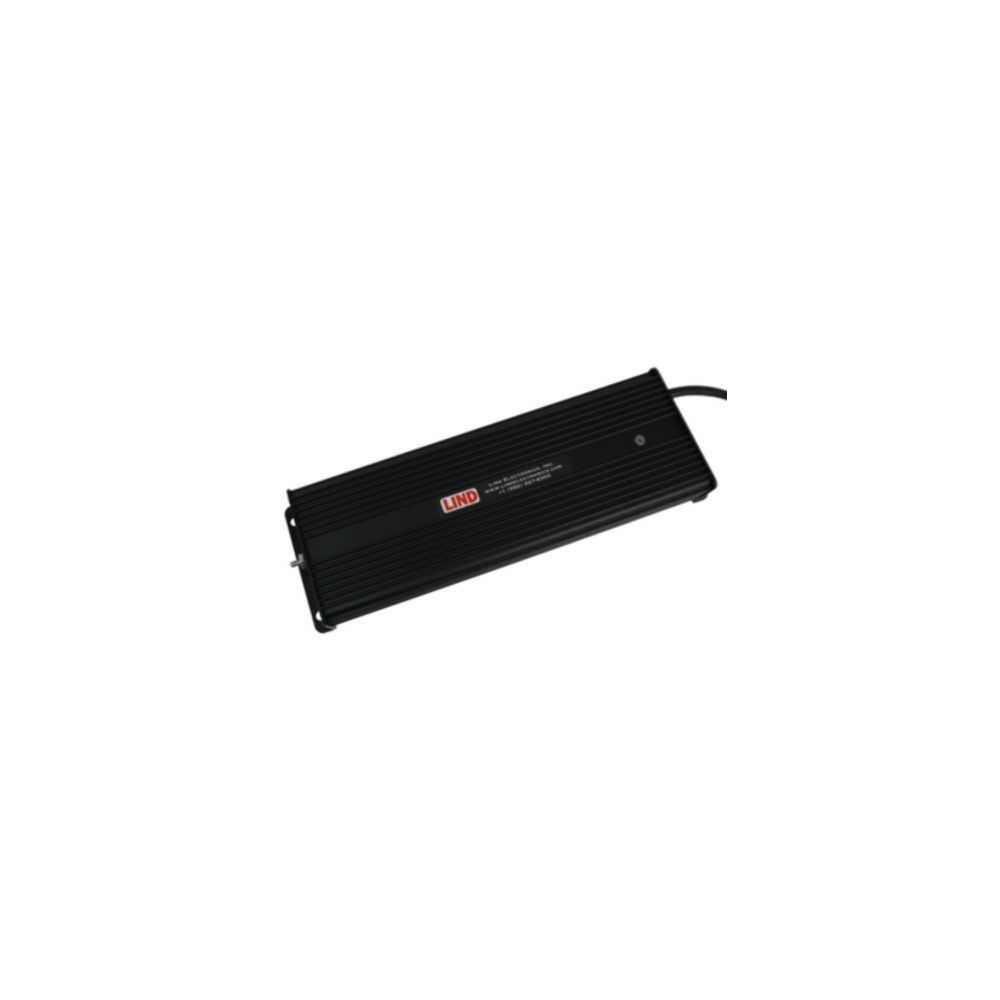

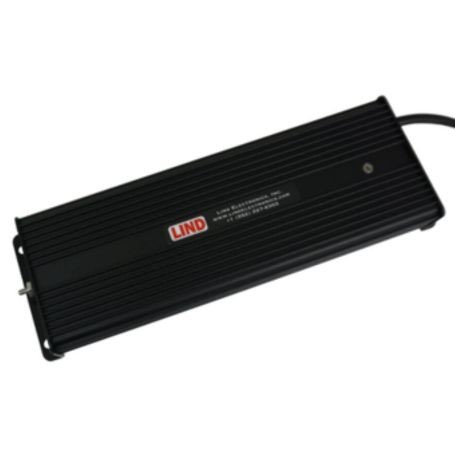

The Havis LPS-149 is a 120W isolated LIND DC power supply designed for compatible Havis Panasonic docking stations. Its 20–60V DC input range supports installations using higher-voltage DC power sources, making it suitable for supported vehicle-based computing systems.
The LPS-149 features a straight 2.5 × 5.5mm barrel connector for its output connection. Before installation, verify the docking station model, connector dimensions, and required output voltage to ensure the power supply is suitable for the intended equipment.
Key Features
- 120W power rating: Designed to power compatible Havis Panasonic docking station installations.
- Isolated DC power design: Provides an isolated power supply solution for supported systems.
- 20–60V DC input: Supports DC input sources within the specified voltage range.
- Straight barrel connector: Uses a 2.5 × 5.5mm output connector.
- DS-PAN series compatibility: Designed for compatible Havis Panasonic docking stations that require this power supply configuration.
Compatibility
Havis identifies the LPS-149 as a 120W isolated LIND DC power supply for DS-PAN series docking stations. Compatibility depends on the exact docking station model and its electrical and connector requirements.
Check the docking station's model number and power specifications before ordering. Do not assume that all DS-PAN series docking stations use the same input voltage or connector configuration.
Technical Specifications
| Brand | Havis |
|---|
| Part number | LPS-149 |
|---|
| Power supply type | Isolated LIND DC power supply |
|---|
| Power rating | 120W |
|---|
| Input voltage | 20–60V DC |
|---|
| Output connector | Straight 2.5 × 5.5mm barrel connector |
|---|
| Compatible docking station family | Compatible Havis DS-PAN series docking stations |
|---|
Frequently Asked Questions
1. What is the Havis LPS-149 used for?
The LPS-149 provides DC power for compatible Havis Panasonic DS-PAN series docking stations.
2. What input voltage does the LPS-149 support?
It supports a DC input range of 20–60V.
3. What is the power rating?
The LPS-149 is rated at 120W.
4. What type of output connector does it use?
It uses a straight 2.5 × 5.5mm barrel connector.
5. How can I check compatibility before purchasing?
Confirm the exact docking station model, its required input voltage, and the connector dimensions. Use the LPS-149 only with equipment that matches its specifications.
