Detailed Specifications

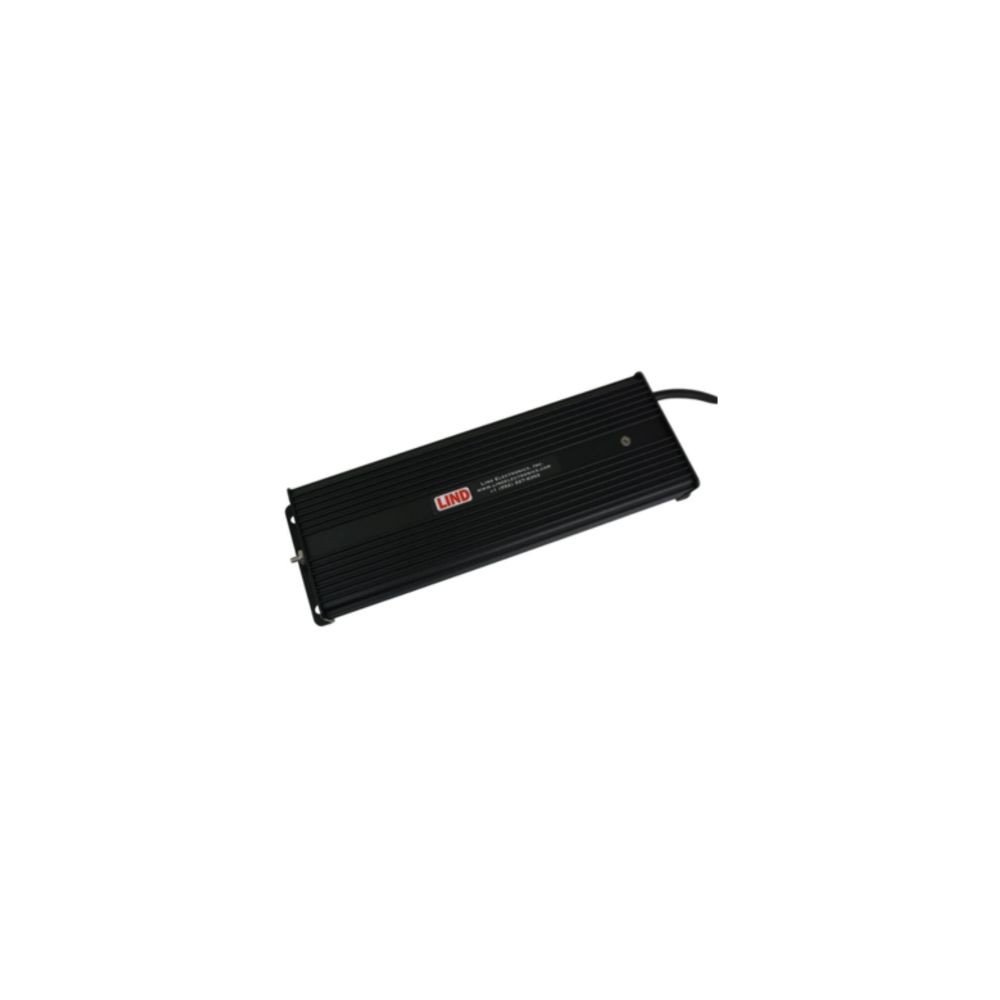

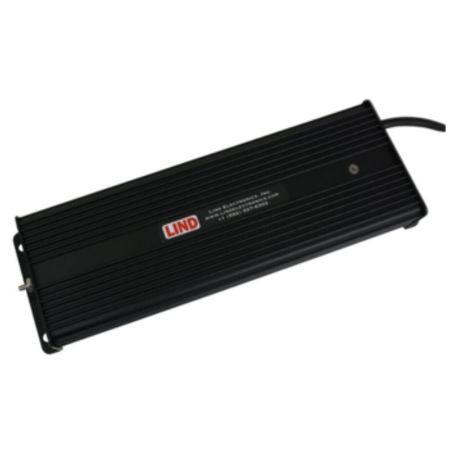

The Havis LPS-148 is a 120W isolated LIND DC power supply designed for compatible Havis docking stations in vehicle and industrial computing environments. It accepts a 12–32V DC input and provides a 15.6V DC output rated at up to 8A.
This power supply includes a 72-inch bare-wire input cable for hardwired DC installations and a detachable 36-inch output cable with a straight 2.5 × 5.5mm barrel connector. Confirm the docking station's required voltage and connector dimensions before installation.
Key Features
- 120W power rating: Provides power for compatible Havis Panasonic docking station installations.
- Isolated DC design: Uses an isolated LIND power supply architecture.
- 12–32V DC input: Supports DC power sources within the specified input range.
- 15.6V DC output: Provides up to 8A output current.
- Detachable output cable: Includes a 36-inch cable with a straight 2.5 × 5.5mm barrel connector and a 72-inch bare-wire input cable.
Compatibility
Havis identifies the LPS-148 as a power supply for compatible DS-PAN series docking stations. Listed compatible docking station families include the DS-PAN-720, DS-PAN-1010, DS-PAN-1110, and DS-PAN-1200 series.
Compatibility depends on the exact docking station model and its power connector requirements. Verify the connector size and required input power specifications before ordering. The 2.5 × 5.5mm output connector should only be used with equipment designed for that connector and voltage.
Technical Specifications
| Brand | Havis |
|---|
| Model | LPS-148 |
|---|
| Power supply type | Isolated LIND DC power supply |
|---|
| Power rating | 120W |
|---|
| Input voltage | 12–32V DC |
|---|
| Output voltage | 15.6V DC |
|---|
| Output current | Up to 8A |
|---|
| Output connector | Straight 2.5 × 5.5mm barrel connector |
|---|
| Input cable | 72 inches, bare-wire hardwired connection |
|---|
| Output cable | 36 inches, detachable |
|---|
| Compatible docking stations | Selected Havis DS-PAN-720, DS-PAN-1010, DS-PAN-1110, and DS-PAN-1200 series docking stations |
|---|
Frequently Asked Questions
1. What is the Havis LPS-148 used for?
The LPS-148 supplies DC power to compatible Havis Panasonic docking stations in vehicle and industrial computing installations.
2. What input voltage does the LPS-148 support?
It supports a DC input range of 12–32V.
3. What are the output specifications?
The power supply is rated at 120W and provides 15.6V DC at up to 8A.
4. What connector does the LPS-148 use?
It includes a straight 2.5 × 5.5mm barrel connector on its detachable 36-inch output cable.
5. What should I check before purchasing?
Confirm your docking station's exact model, required output voltage, connector dimensions, and available DC input voltage to ensure compatibility.
