Detailed Specifications
The Havis LPS-145 is a 90W non-isolated DC power supply designed for compatible Havis docking stations used with Dell rugged computers. It accepts a 12–32V DC input and provides a 20V DC output for supported vehicle-based computing installations.

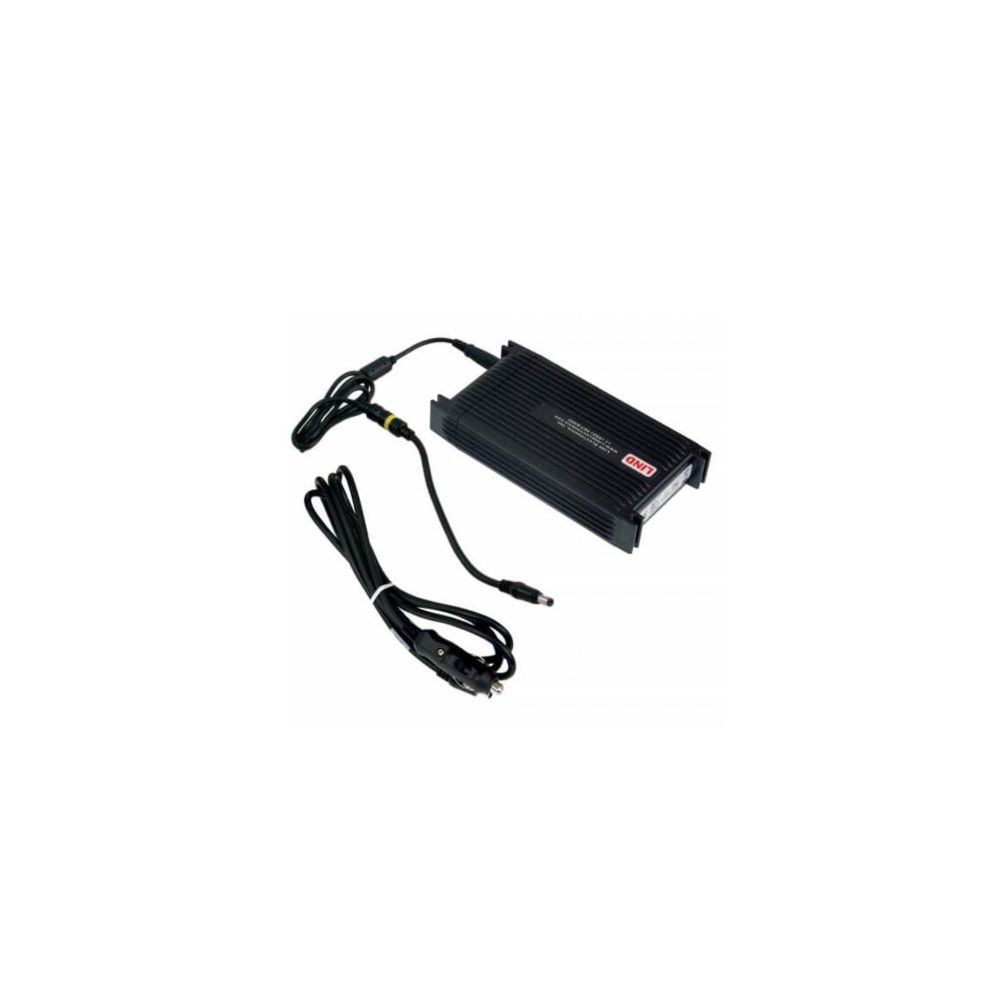

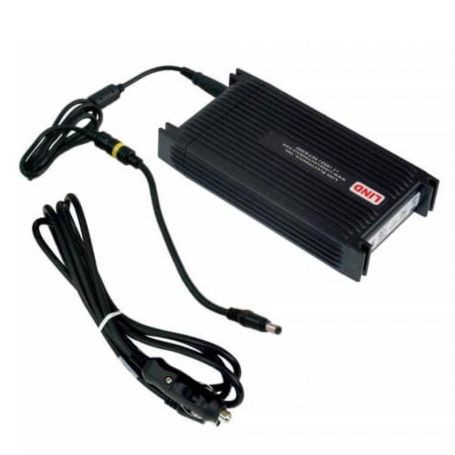

The kit includes a 72-inch input cable with a cigarette-lighter adapter, a 41-inch output cable with a straight Bondi connector and ferrite bead, and mounting hardware. The ferrite bead helps suppress electromagnetic interference in vehicle installations.
Key Features
- 90W power rating: Provides power for compatible Havis Dell docking stations.
- Wide DC input range: Accepts 12–32V DC input.
- 20V DC output: Designed for supported docking station power requirements.
- Ferrite-bead output cable: Helps suppress electromagnetic interference in vehicle installations.
- Installation accessories included: Includes a 72-inch cigarette-lighter input cable, a 41-inch output cable, and mounting hardware.
Compatibility
Havis identifies the LPS-145 as a power supply for compatible Dell docking stations. Manufacturer documentation has listed different docking station series across catalog revisions, so verify the exact dock model and connector before ordering.
The power supply is intended for compatible docking station installations and should not be assumed to connect directly to every Dell rugged computer. Confirm the required power specifications for the complete docking station setup.
Technical Specifications
| Brand | Havis |
|---|
| Part number | LPS-145 |
|---|
| Product type | Non-isolated DC power supply |
|---|
| Power rating | 90W |
|---|
| Input voltage | 12–32V DC |
|---|
| Output voltage | 20V DC |
|---|
| Input cable | 72 inches with cigarette-lighter adapter |
|---|
| Output cable | 41 inches with straight Bondi connector and ferrite bead |
|---|
| Mounting accessories | Mounting hardware included |
|---|
| Compatibility | Compatible Havis Dell docking stations; confirm the exact model against current manufacturer documentation |
|---|
Frequently Asked Questions
1. What is the Havis LPS-145 used for?
The LPS-145 supplies DC power to compatible Havis docking stations used with Dell rugged computers.
2. What input voltage does the LPS-145 support?
It supports a DC input range of 12–32V.
3. What is its output voltage and power rating?
The LPS-145 is rated at 90W and provides a 20V DC output.
4. What cables are included?
The kit includes a 72-inch input cable with a cigarette-lighter adapter and a 41-inch output cable with a straight Bondi connector and ferrite bead.
5. How do I confirm compatibility?
Check the docking station's model number, connector type, and required input power specifications before purchasing. If the exact model is unclear, confirm it with Havis or the docking station supplier.
