Detailed Specifications

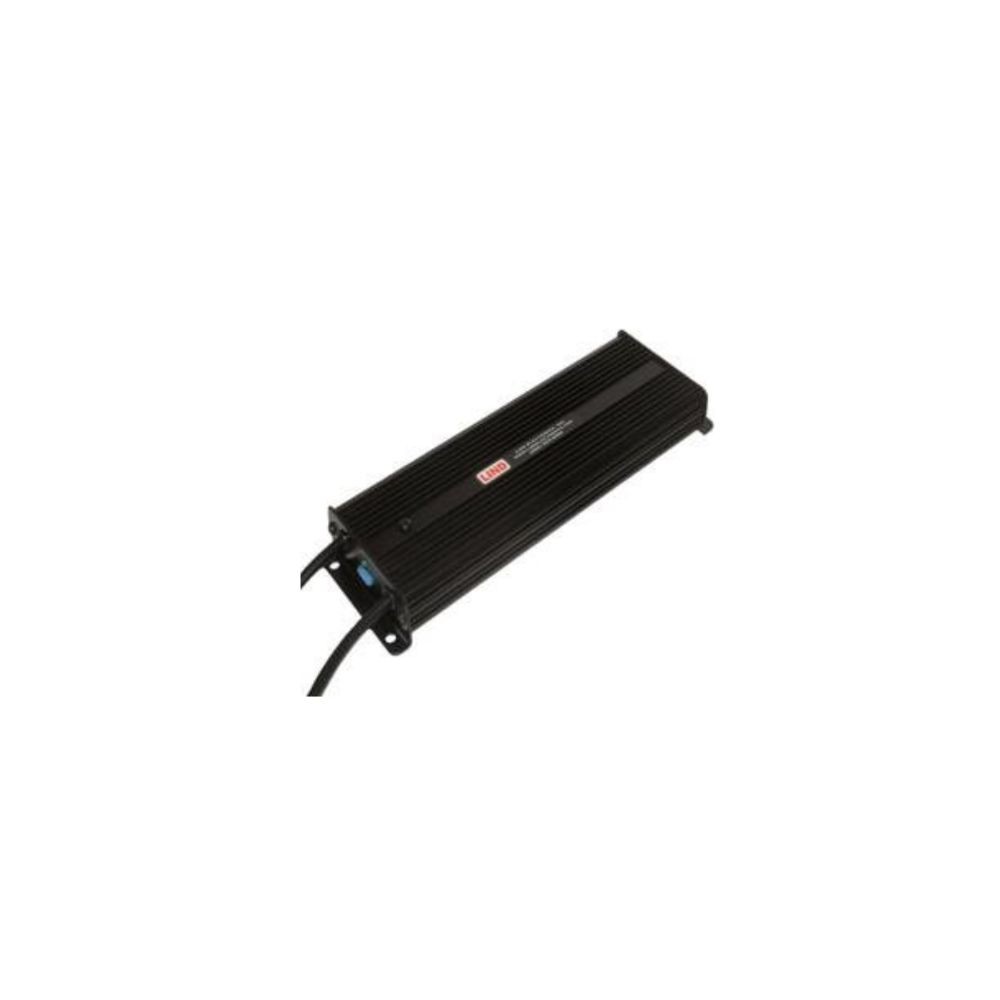

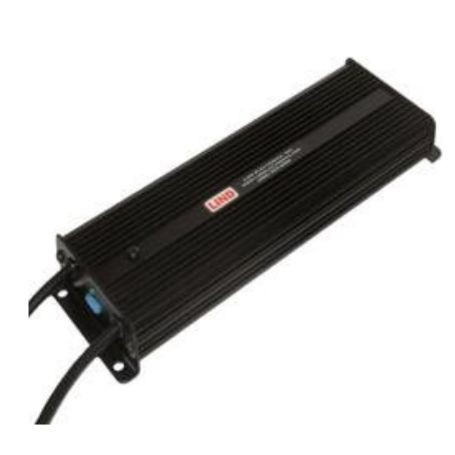

The Havis LPS-142 is an 85W isolated DC power supply designed for compatible Havis DS-DELL-700 series docking stations. It accepts a 12–32V DC input and provides a 15V DC output rated at 5.5A, making it suitable for supported vehicle-based computing installations.
The kit includes a 72-inch bare-wire input cable, a 144-inch output cable with a DS-DELL-700-specific connector, and mounting hardware. The output cable connects to the compatible docking station rather than directly to the tablet.
Key Features
- 85W power rating: Designed to power compatible DS-DELL-700 series docking stations.
- Isolated power design: Provides electrical isolation in supported DC power installations.
- 12–32V DC input: Supports power sources operating within the specified input range.
- 15V DC output: Delivers a rated output of 5.5A.
- Dock-specific connection: Includes a 144-inch output cable with the connector designed for the DS-DELL-700 series.
Compatibility
The Havis LPS-142 is designed for Havis DS-DELL-700 series docking stations. Havis lists compatibility with Dell Latitude Rugged 12-inch tablets, including the 7212 and 7220, when used with a compatible docking station.
Verify the exact docking station model, connector requirements, and available DC input voltage before ordering. The output cable is designed for the compatible dock and does not connect directly to the Dell tablet.
Technical Specifications
| Brand | Havis |
|---|
| Part number | LPS-142 |
|---|
| Product type | Isolated DC power supply |
|---|
| Power rating | 85W |
|---|
| Input voltage | 12–32V DC |
|---|
| Output voltage | 15V DC |
|---|
| Output current | 5.5A |
|---|
| Input cable | 72 inches, bare-wire input |
|---|
| Output cable | 144 inches, DS-DELL-700 series-specific connector |
|---|
| Compatible docking stations | Havis DS-DELL-700 series |
|---|
| Compatible computers | Dell Latitude Rugged 12-inch tablets, including models 7212 and 7220, when used with a compatible dock |
|---|
| Included accessories | Input cable, output cable, and mounting hardware |
|---|
Frequently Asked Questions
1. What is the Havis LPS-142 used for?
The LPS-142 supplies DC power to compatible Havis DS-DELL-700 series docking stations.
2. What input voltage does the LPS-142 support?
It accepts a DC input voltage between 12V and 32V.
3. What are its output specifications?
The LPS-142 is rated at 85W and provides 15V DC at 5.5A.
4. What cables are included?
The kit includes a 72-inch bare-wire input cable and a 144-inch output cable with a connector designed for the DS-DELL-700 series docking stations.
5. Can the output cable connect directly to a Dell tablet?
No. The output cable is intended for the compatible Havis docking station, not for direct connection to the tablet.
