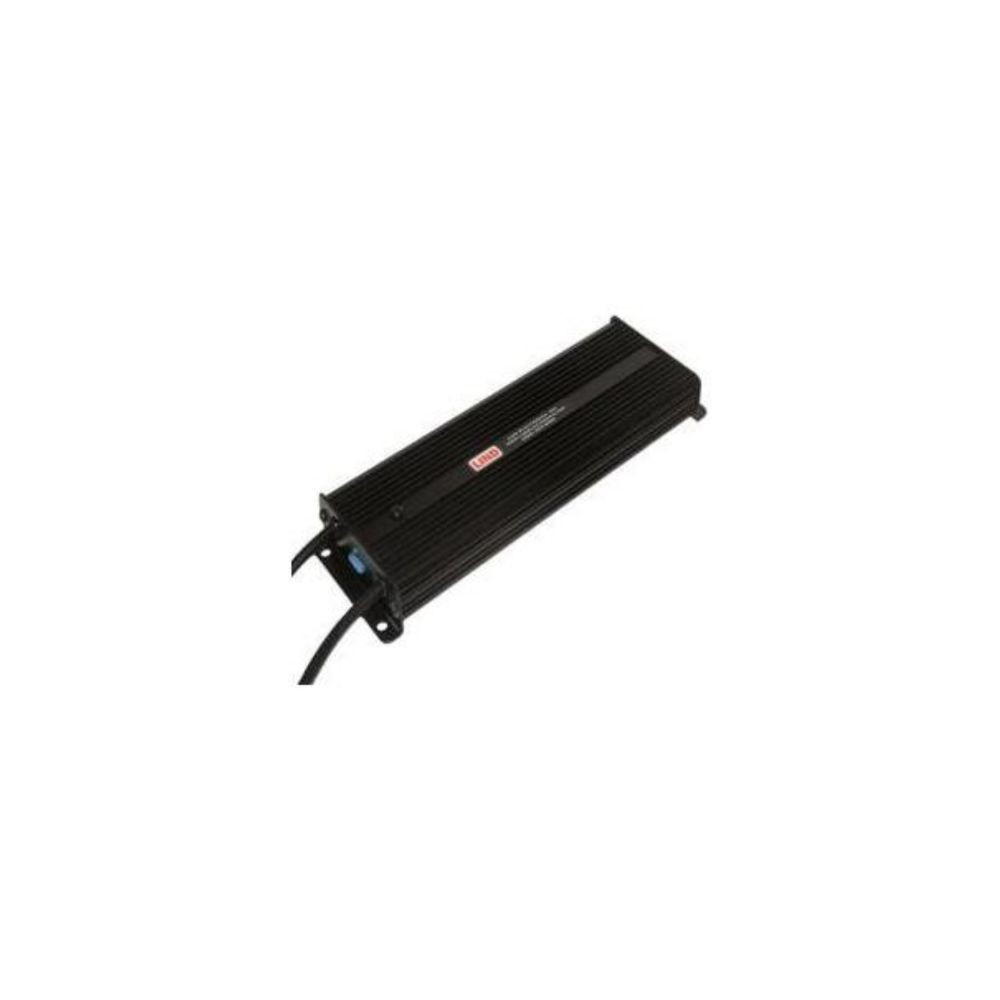

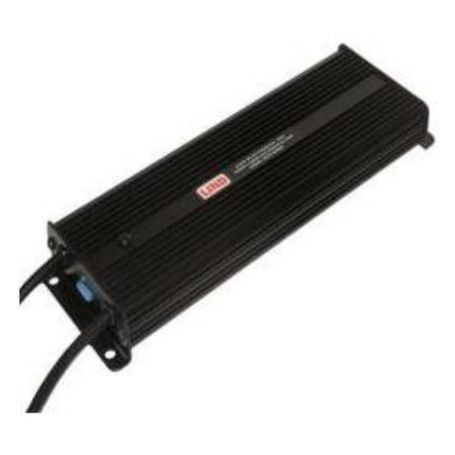

The Havis LPS-141 is an 85W isolated DC power supply designed for compatible Havis DS-DELL-700 series docking stations. Its 20–60V DC input range supports installations using higher-voltage vehicle electrical systems, while its 15V DC output provides power for the specified docking station configuration.
The kit includes a 72-inch bare-wire input cable, a 144-inch output cable with a DS-DELL-700-specific connector, and mounting hardware. The removable output cable is designed to connect to supported docking stations rather than directly to the computer tablet.
Key Features
- 85W power rating: Supplies power to compatible DS-DELL-700 series docking stations.
- Isolated power design: Provides an isolated DC power solution for supported installations.
- 20–60V DC input: Supports power sources within the specified input range.
- 15V DC output: Rated at 5.5A for the compatible docking station setup.
- Dock-specific cable kit: Includes a 72-inch bare-wire input cable, a 144-inch output cable, and mounting hardware.
Compatibility
The Havis LPS-141 is designed for Havis DS-DELL-700 series docking stations. Havis lists compatibility with Dell Latitude Rugged 12-inch tablets, including models 7212 and 7220, when used with the appropriate docking station.
The output connector is intended for the compatible docking station and does not connect directly to the tablet. Before ordering, verify the docking station model and ensure the available DC input voltage is within the LPS-141's 20–60V range.
Technical Specifications
| Brand | Havis |
|---|
| Model | LPS-141 |
|---|
| Product type | Isolated DC power supply |
|---|
| Power rating | 85W |
|---|
| Input voltage | 20–60V DC |
|---|
| Output voltage | 15V DC |
|---|
| Output current | 5.5A |
|---|
| Input cable | 72 inches, bare-wire input |
|---|
| Output cable | 144 inches, DS-DELL-700 series-specific connector |
|---|
| Compatible docking stations | Havis DS-DELL-700 series |
|---|
| Compatible computers listed by Havis | Dell Latitude Rugged 12-inch tablets, models 7212 and 7220, when used with a compatible dock |
|---|
| Included accessories | Input cable, output cable, and mounting hardware |
|---|
Frequently Asked Questions
1. What is the Havis LPS-141 used for?
The LPS-141 supplies DC power to compatible Havis DS-DELL-700 series docking stations.
2. What input voltage does the LPS-141 support?
It accepts a DC input voltage between 20V and 60V. Confirm that the available power source falls within this range before installation.
3. What are the output specifications?
The power supply is rated at 85W and provides 15V DC at 5.5A.
4. What cables are included?
The kit includes a 72-inch bare-wire input cable and a 144-inch output cable with a DS-DELL-700-specific connector.
5. Can the output cable connect directly to a Dell tablet?
No. The output cable is designed for the compatible Havis docking station, not for direct connection to the tablet.
