Detailed Specifications

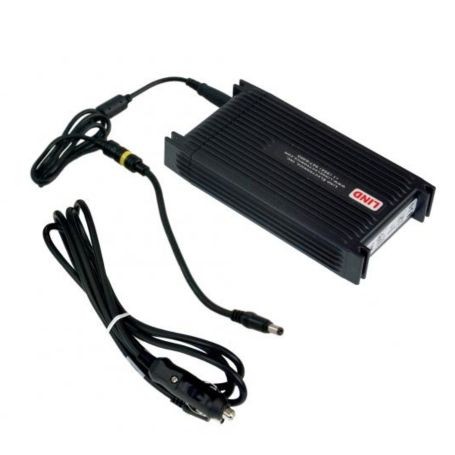

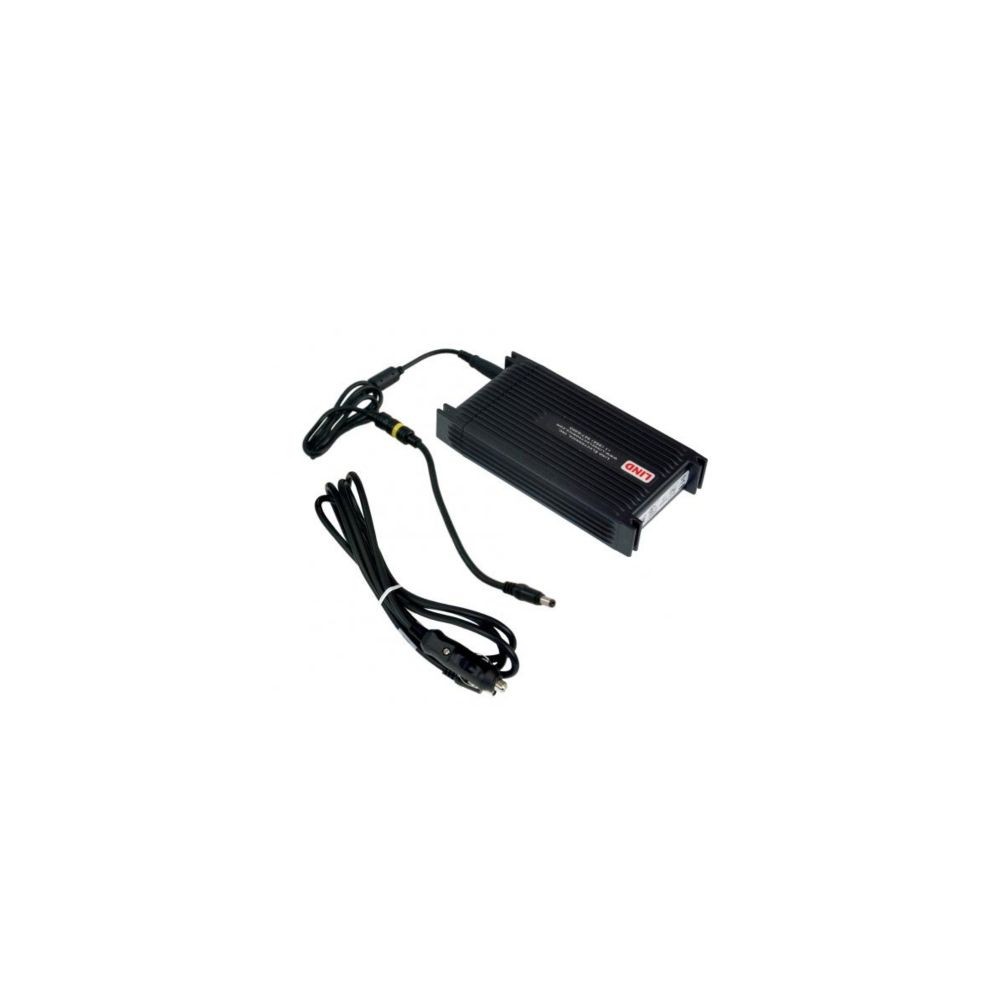

The Havis LPS-135 is a 90W DC power supply designed for compatible Havis docking stations used with Dell rugged tablets. Featuring a 12–32V DC input range and a 20V DC output, it supports vehicle-based computing installations that require a compatible power solution.
The LPS-135 kit includes a 41-inch output power cable with a plug-in connector, a 6-foot input cable with a cigarette-lighter adapter, and mounting hardware. Confirm the docking station model and connector requirements before ordering to ensure compatibility.
Key Features
- 90W power rating: Provides power for supported Havis Dell docking station installations.
- Wide DC input range: Accepts 12–32V DC input.
- 20V DC output: Supplies the output voltage specified for compatible docking stations.
- Vehicle input cable: Includes a 6-foot input cable with a cigarette-lighter adapter.
- Complete installation kit: Includes a 41-inch output cable with plug-in connector and mounting hardware.
Compatibility
Havis lists the LPS-135 for the DS-DELL-600 and DS-DELL-610 series docking stations. Listed compatible computers include the Dell Latitude Rugged 12-inch tablet models 7212 and 7220.
Compatibility can depend on the exact docking station and connector configuration. Check the model number on your existing dock and verify the required power supply before purchase.
Technical Specifications
| Brand | Havis |
|---|
| Part number | LPS-135 |
|---|
| Product type | DC power supply kit |
|---|
| Power rating | 90W |
|---|
| Input voltage | 12–32V DC |
|---|
| Output voltage | 20V DC |
|---|
| Input cable | 6 feet with cigarette-lighter adapter |
|---|
| Output cable | 41 inches with plug-in connector |
|---|
| Dimensions | 1.1 × 5.5 × 3.1 inches (approximately 2.9 × 14.0 × 7.8 cm) |
|---|
| Weight | Approximately 2 lb |
|---|
| Compatible docking stations | Havis DS-DELL-600 and DS-DELL-610 series |
|---|
| Compatible computers listed by Havis | Dell Latitude Rugged 7212 and 7220 tablets |
|---|
| Included accessories | Input cable, output power cable, and mounting hardware |
|---|
Frequently Asked Questions
1. What is the Havis LPS-135 used for?
The LPS-135 supplies DC power to compatible Havis DS-DELL-600 and DS-DELL-610 docking stations.
2. What input voltage does the LPS-135 support?
It accepts an input voltage between 12V and 32V DC.
3. What is the output voltage and power rating?
The LPS-135 is rated at 90W and provides a 20V DC output.
4. What cables are included?
The kit includes a 6-foot input cable with a cigarette-lighter adapter and a 41-inch output power cable with a plug-in connector.
5. Which docking stations are compatible?
Havis lists the DS-DELL-600 and DS-DELL-610 series. Confirm your exact docking station model and connector before selecting a power supply.
