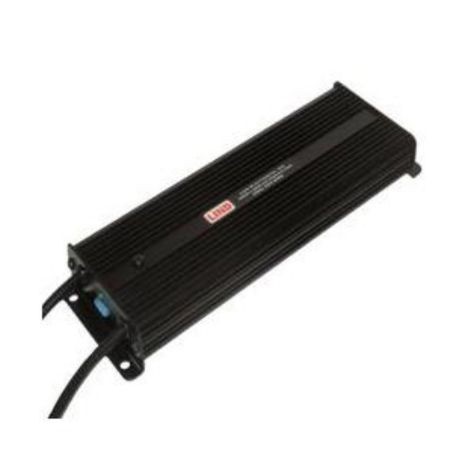

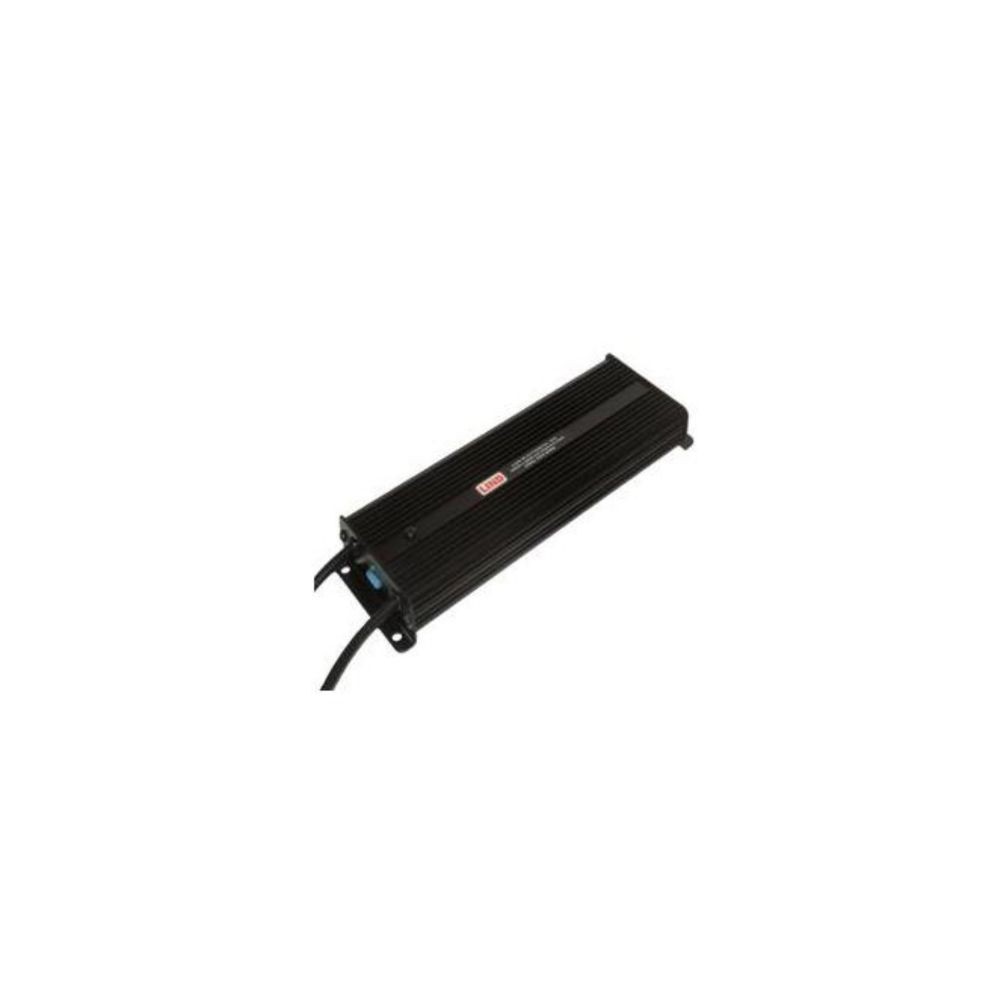

The Havis LPS-126 is a 90W isolated DC power supply designed for compatible Havis docking stations used with Dell rugged mobile computers. It accepts a 20–60V DC input and provides 19.5V DC output for supported docking equipment.
Designed for compatible vehicle and forklift installations, the LPS-126 uses a straight Bondi output connector. Its isolated power design supports installations that require electrical isolation between the vehicle's DC electrical system and the connected docking equipment.
Key Features
- 90W power rating: Provides power for compatible Havis Dell docking station configurations.
- Wide DC input range: Supports 20–60V DC input for suitable vehicle electrical systems.
- Isolated power design: Intended for compatible mobile installations requiring an isolated DC supply.
- 19.5V DC output: Supplies the specified output voltage for supported docking equipment.
- Straight Bondi connector: Designed for compatible Havis Dell docking station connections.
Compatibility
Havis documentation identifies the LPS-126 for compatible Dell docking stations in the following families:
- Havis DS-DELL-410 Series
- Havis DS-DELL-420 Series
Confirm the exact docking station part number and connector requirements before purchase. Do not assume compatibility with other Dell docking stations solely because they use the same computer brand.
Technical Specifications
| Brand | Havis |
|---|
| Manufacturer Part Number | LPS-126 |
|---|
| Product Type | Isolated DC power supply |
|---|
| Power Rating | 90W |
|---|
| Input Voltage | 20–60V DC |
|---|
| Output Voltage | 19.5V DC |
|---|
| Output Connector | Straight Bondi connector |
|---|
| Compatible Docking Station Families | Havis DS-DELL-410 and DS-DELL-420 Series |
|---|
| Weight | Approximately 2 lb |
|---|
Important Compatibility Note
The LPS-126 is designed for specific Havis Dell docking station configurations and is not a universal laptop power adapter. Verify the docking station model, vehicle input voltage, output requirements, and connector type before installation. For applications using a 12–32V DC input range, check whether the Havis LPS-127 is the appropriate alternative.
Frequently Asked Questions
1. What is the Havis LPS-126?
The Havis LPS-126 is a 90W isolated DC power supply for compatible Havis Dell docking stations.
2. What input voltage does it support?
It supports a 20–60V DC input range.
3. What output voltage does it provide?
The specified output voltage is 19.5V DC, with a 90W power rating.
4. Which docking stations are compatible?
Havis documentation identifies the DS-DELL-410 and DS-DELL-420 series. Verify the exact docking station model before ordering.
5. What type of output connector does it use?
The LPS-126 uses a straight Bondi connector for compatible Havis Dell docking stations.
6. How does the LPS-126 differ from the LPS-127?
Both are isolated power supplies for compatible Dell docking stations, but the LPS-126 supports a 20–60V DC input range, while the LPS-127 is specified for 12–32V DC input. Choose according to the vehicle's electrical system and docking station requirements.
