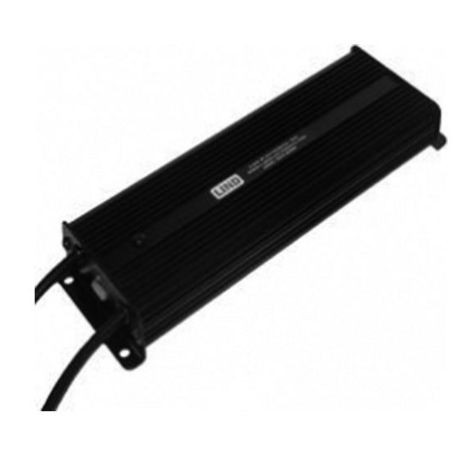

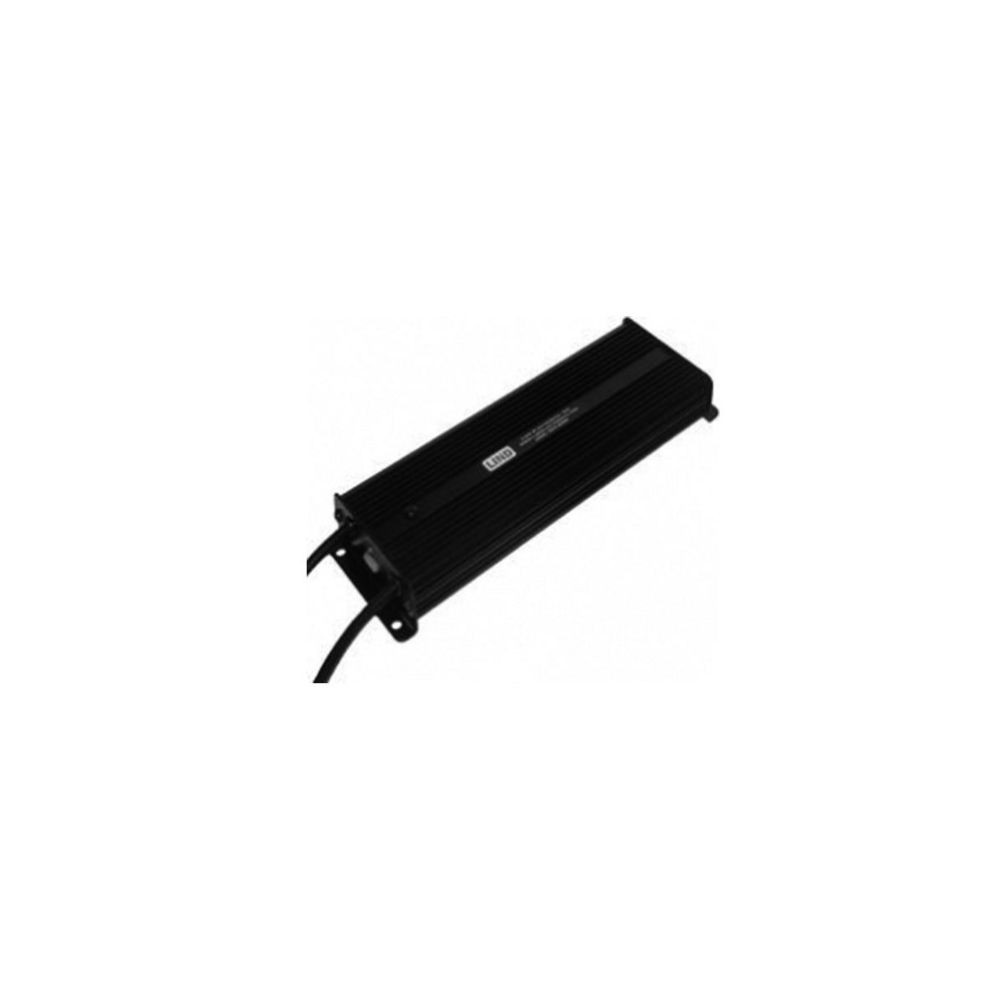

The Havis LPS-125 is a 95W isolated DC power supply designed for compatible Havis docking stations used with Getac rugged mobile computers. It accepts a 12–32V DC input and provides 19V DC output, making it suitable for supported vehicle and forklift installations.
The power supply kit includes an attached input cable with bare-wire leads, a 36-inch output cable with a straight-tip connector, and mounting hardware. Its isolated design supports compatible mobile computing installations where an isolated DC power supply is required.
Key Features
- 95W power rating: Supplies power to compatible Havis Getac docking station configurations.
- 12–32V DC input: Designed for supported vehicle electrical systems within the specified input range.
- Isolated power design: Intended for vehicle installations requiring an isolated DC supply.
- 19V DC output: Provides the specified output voltage for compatible docking equipment.
- Installation accessories included: Supplied with attached bare-wire input leads, a 36-inch output cable, and mounting hardware.
Compatibility
Havis lists the LPS-125 for compatible Getac docking station families, including:
- DS-GTC-200 Series
- DS-GTC-220 Series
- DS-GTC-310 Series
- DS-GTC-410 Series
- DS-GTC-510 Series
Associated Getac computer families include the V110 convertible notebook, F110 tablet, T800 tablet, and RX10 tablet, subject to the specific docking station configuration. Verify the exact dock model before ordering.
Technical Specifications
| Brand | Havis |
|---|
| Manufacturer Part Number | LPS-125 |
|---|
| Product Type | Isolated DC power supply |
|---|
| Power Rating | 95W |
|---|
| Input Voltage | 12–32V DC |
|---|
| Output Voltage | 19V DC |
|---|
| Input Connection | Attached cable with bare-wire leads |
|---|
| Input Cable Length | 72 inches (6 feet) |
|---|
| Output Connector | Straight-tip connector |
|---|
| Output Cable Length | 36 inches (3 feet) |
|---|
| Compatible Docking Station Families | DS-GTC-200, DS-GTC-220, DS-GTC-310, DS-GTC-410, and DS-GTC-510 Series |
|---|
| Gross Weight | Approximately 2.25 lb |
|---|
Package Contents
- Havis LPS-125 95W isolated DC power supply
- Attached input cable with 72-inch bare-wire leads
- 36-inch output cable with straight-tip connector
- Mounting hardware
Important Compatibility Note
The LPS-125 is intended for compatible Havis Getac docking station configurations and is not a universal laptop power adapter. Its 12–32V DC input range differs from the 20–60V DC input range of the Havis LPS-124. Confirm the vehicle electrical system, docking station model, and connector requirements before installation.
Frequently Asked Questions
1. What is the Havis LPS-125?
The Havis LPS-125 is a 95W isolated DC power supply designed for compatible Getac docking stations used in vehicle and forklift installations.
2. What input voltage does it support?
It supports a 12–32V DC input range.
3. What output voltage does it provide?
The specified output is 19V DC, with a power rating of 95W.
4. Which docking stations are compatible?
Compatible families include the DS-GTC-200, DS-GTC-220, DS-GTC-310, DS-GTC-410, and DS-GTC-510 series. Confirm the exact docking station model before ordering.
5. What type of input cable is included?
The power supply includes an attached input cable with 72-inch bare-wire leads for a suitable vehicle electrical installation.
6. What is included in the package?
The kit includes the power supply, a 36-inch output cable with a straight-tip connector, and mounting hardware.
