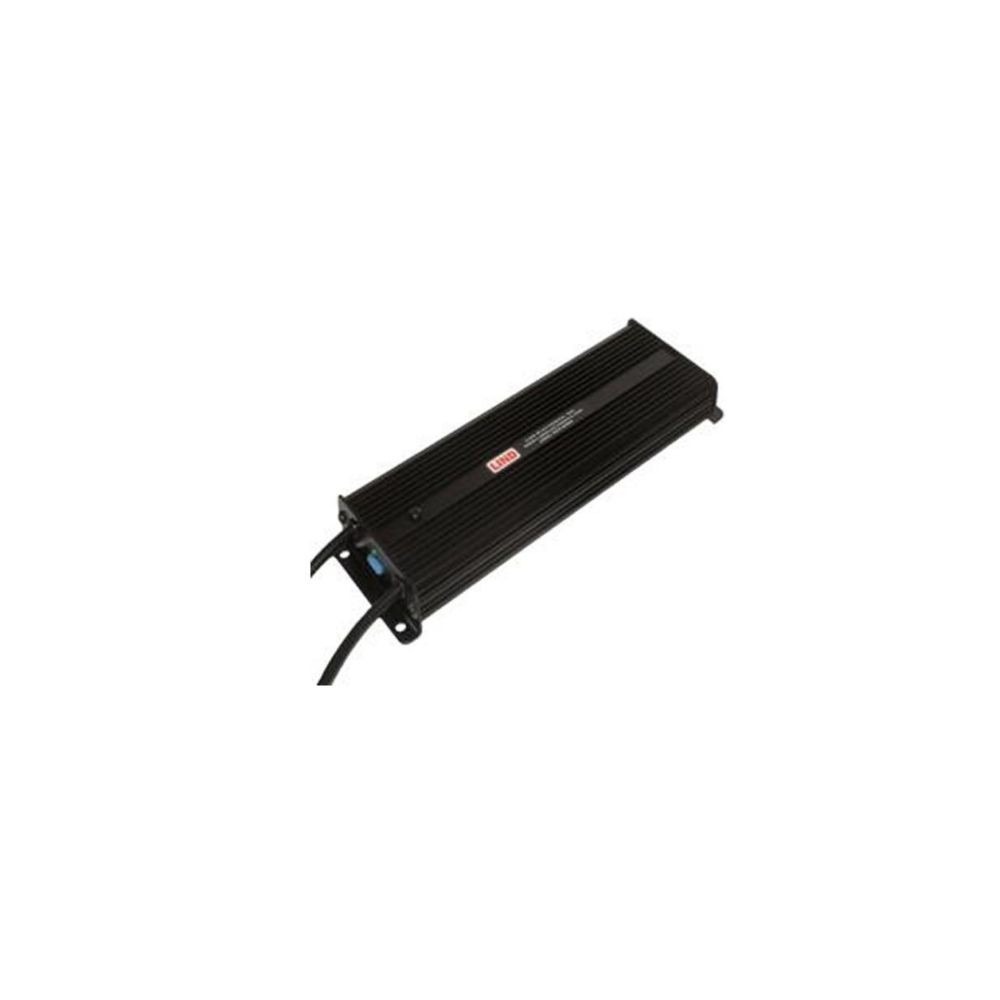

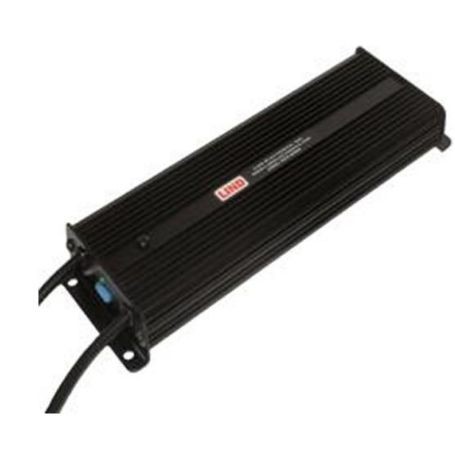

The Havis LPS-123 is an 85W isolated DC power supply designed for compatible Havis Panasonic docking stations. It is intended for vehicle and forklift installations where the electrical system provides a 12–32V DC input range. The unit supplies 15V DC output for supported docking equipment.
Its isolated power design is intended to help reduce electronic interference in vehicle installations. The kit includes a power supply with an attached bare-wire input cable, a 36-inch output cable with a straight yellow-tip connector, and mounting hardware.
Key Features
- 85W power rating: Provides power for compatible Panasonic docking station configurations.
- 12–32V DC input: Supports the specified input range for suitable vehicle electrical systems.
- Isolated power design: Intended for vehicle and forklift applications where electrical isolation is required.
- 15V DC output: Supplies the specified output voltage to supported docking equipment.
- Installation accessories included: Includes an attached bare-wire input cable, a 36-inch output cable, and mounting hardware.
Compatibility
The Havis LPS-123 is designed for compatible Havis DS-PAN-720 Series docking stations. Havis identifies Panasonic TOUGHBOOK G1 and G2 devices in its compatibility information. Verify the exact docking station model and computer configuration before ordering.
Technical Specifications
| Brand | Havis |
|---|
| Manufacturer Part Number | LPS-123 |
|---|
| Product Type | Isolated DC power supply |
|---|
| Power Rating | 85W |
|---|
| Input Voltage | 12–32V DC |
|---|
| Output Voltage | 15V DC |
|---|
| Input Connection | Attached bare-wire input cable |
|---|
| Input Cable Length | 72 inches (6 feet) |
|---|
| Output Connector | Straight yellow-tip connector |
|---|
| Output Cable Length | 36 inches (3 feet) |
|---|
| Compatible Docking Station Series | Havis DS-PAN-720 Series |
|---|
| Compatible Computer Families | Panasonic TOUGHBOOK G1 and G2, subject to dock compatibility |
|---|
| Gross Weight | Approximately 2 lb |
|---|
Package Contents
- Havis LPS-123 85W isolated DC power supply
- Attached input cable with 72-inch bare-wire leads
- 36-inch output cable with straight yellow-tip connector
- Mounting hardware
Important Compatibility Note
The LPS-123 is intended for compatible Havis docking station installations and is not a universal laptop power adapter. Confirm the vehicle's DC input voltage, the exact docking station model, and the connector requirements before installation.
Frequently Asked Questions
1. What is the Havis LPS-123?
The Havis LPS-123 is an 85W isolated DC power supply designed for compatible Panasonic docking stations in vehicle and forklift installations.
2. What input voltage does it support?
It supports a 12–32V DC input range.
3. What output voltage does it provide?
The specified output is 15V DC, with an 85W power rating.
4. Which docking stations is it designed for?
Havis lists the LPS-123 for compatible DS-PAN-720 Series docking stations. Check the exact dock model before purchase.
5. What type of input cable is included?
The power supply has an attached input cable with bare-wire leads for a suitable vehicle electrical installation.
6. What accessories are included?
The kit includes a 36-inch output cable with a straight yellow-tip connector and mounting hardware.
