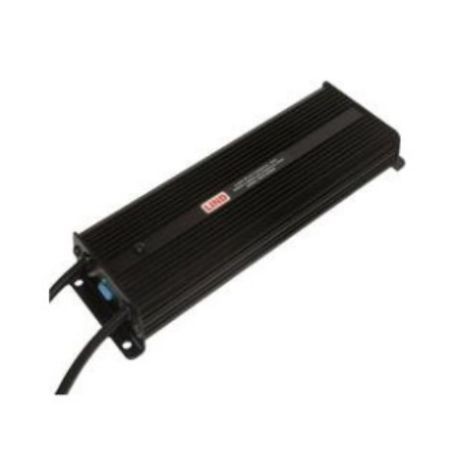

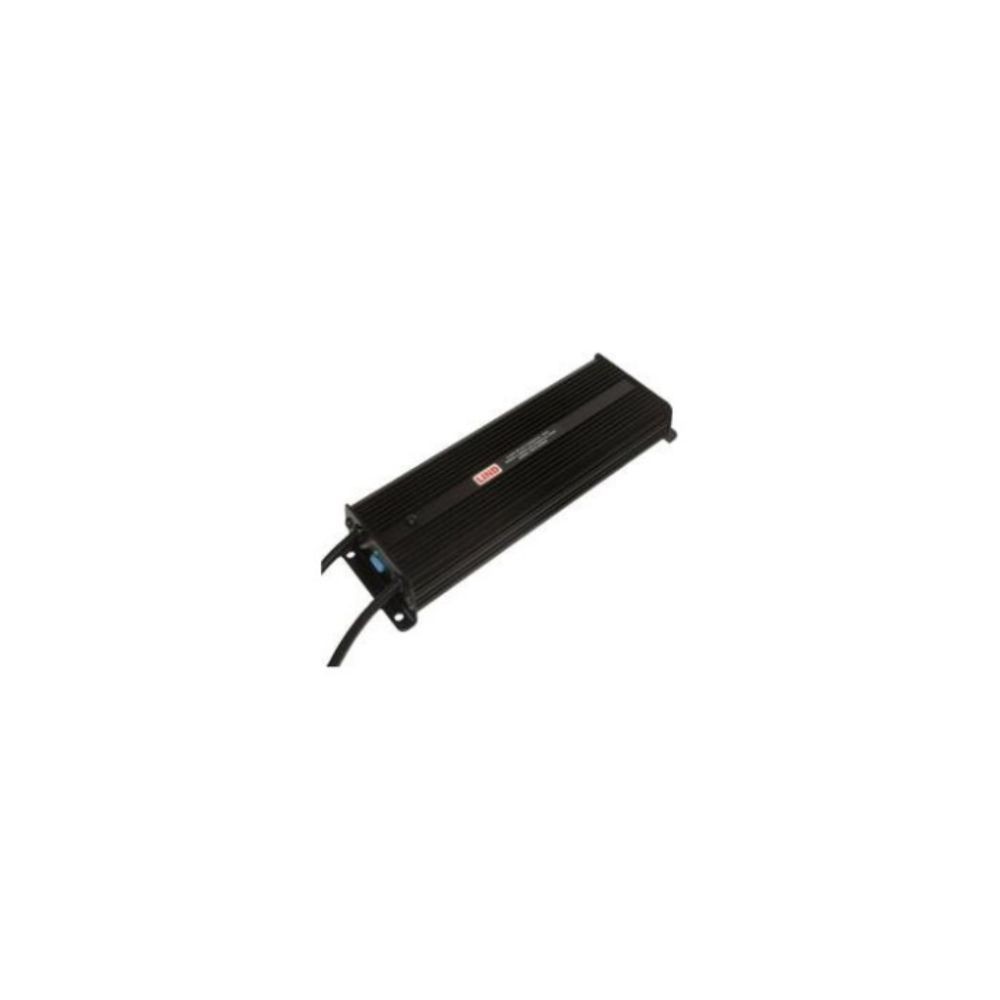

The Havis LPS-122 is an 85W isolated DC power supply designed for compatible Havis Panasonic docking stations. Intended for forklift and other applications with higher-voltage DC electrical systems, it accepts a 20–60V DC input and supplies 15V DC output to supported docking equipment.
The LPS-122 is designed for the Havis DS-PAN-720 Series docking station family. Its isolated power design helps reduce electronic interference in suitable vehicle installations. The kit includes a power supply with attached input cable, a 3-foot output cable with a straight yellow-tip connector, and mounting hardware.
Key Features
- 85W power rating: Provides power for compatible Havis Panasonic docking station configurations.
- Wide DC input range: Accepts 20–60V DC input for supported vehicle electrical systems.
- Isolated power design: Intended to help reduce electronic interference in forklift applications.
- 15V DC output: Supplies the specified output voltage to compatible docking equipment.
- Installation accessories included: Supplied with attached bare-wire input leads, a 3-foot output cable, and mounting hardware.
Compatibility
The Havis LPS-122 is specified for compatible Havis DS-PAN-720 Series docking stations. Havis identifies Panasonic TOUGHBOOK G1 and G2 devices in the associated compatibility information. Confirm the exact docking station and computer configuration before ordering.
Technical Specifications
| Brand | Havis |
|---|
| Manufacturer Part Number | LPS-122 |
|---|
| Product Type | Isolated in-vehicle DC power supply |
|---|
| Power Rating | 85W |
|---|
| Input Voltage | 20–60V DC |
|---|
| Output Voltage | 15V DC |
|---|
| Input Connection | Attached cable with bare-wire leads |
|---|
| Input Cable Length | 72 inches (6 feet) |
|---|
| Output Connector | Straight yellow-tip connector |
|---|
| Output Cable Length | 36 inches (3 feet) |
|---|
| Compatible Docking Station Series | Havis DS-PAN-720 Series |
|---|
| Gross Weight | Approximately 2 lb |
|---|
Package Contents
- Havis LPS-122 85W isolated DC power supply
- Attached input cable with 72-inch bare-wire leads
- 36-inch output cable with straight yellow-tip connector
- Mounting hardware
Important Compatibility Note
The LPS-122 is designed for compatible docking station installations requiring a 20–60V DC input supply. It is not a universal laptop power adapter. Check the input voltage of the vehicle electrical system, the exact docking station model, and the required output connector before installation. For applications with a 12–32V DC input range, verify whether the Havis LPS-123 is the appropriate model instead.
Frequently Asked Questions
1. What is the Havis LPS-122?
The Havis LPS-122 is an 85W isolated DC power supply designed for compatible Panasonic docking stations used in vehicle and forklift installations.
2. What input voltage does the LPS-122 support?
It supports a 20–60V DC input range.
3. What output voltage does it provide?
The specified output is 15V DC, with a rated power of 85W.
4. Which docking stations is it designed for?
Havis lists the LPS-122 for compatible DS-PAN-720 Series docking stations. Verify the exact docking station model before purchase.
5. What type of input connection does it use?
It has an attached input cable with bare-wire leads for a suitable vehicle electrical installation.
6. How does the LPS-122 differ from the LPS-123?
The LPS-122 is specified for 20–60V DC input, while the LPS-123 is the corresponding isolated power supply model for a 12–32V DC input range. Select the model that matches the electrical system and docking station requirements.
