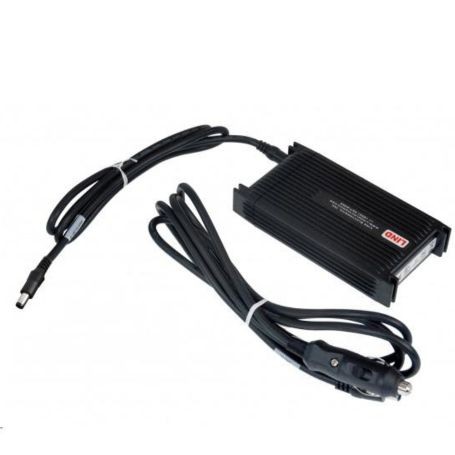

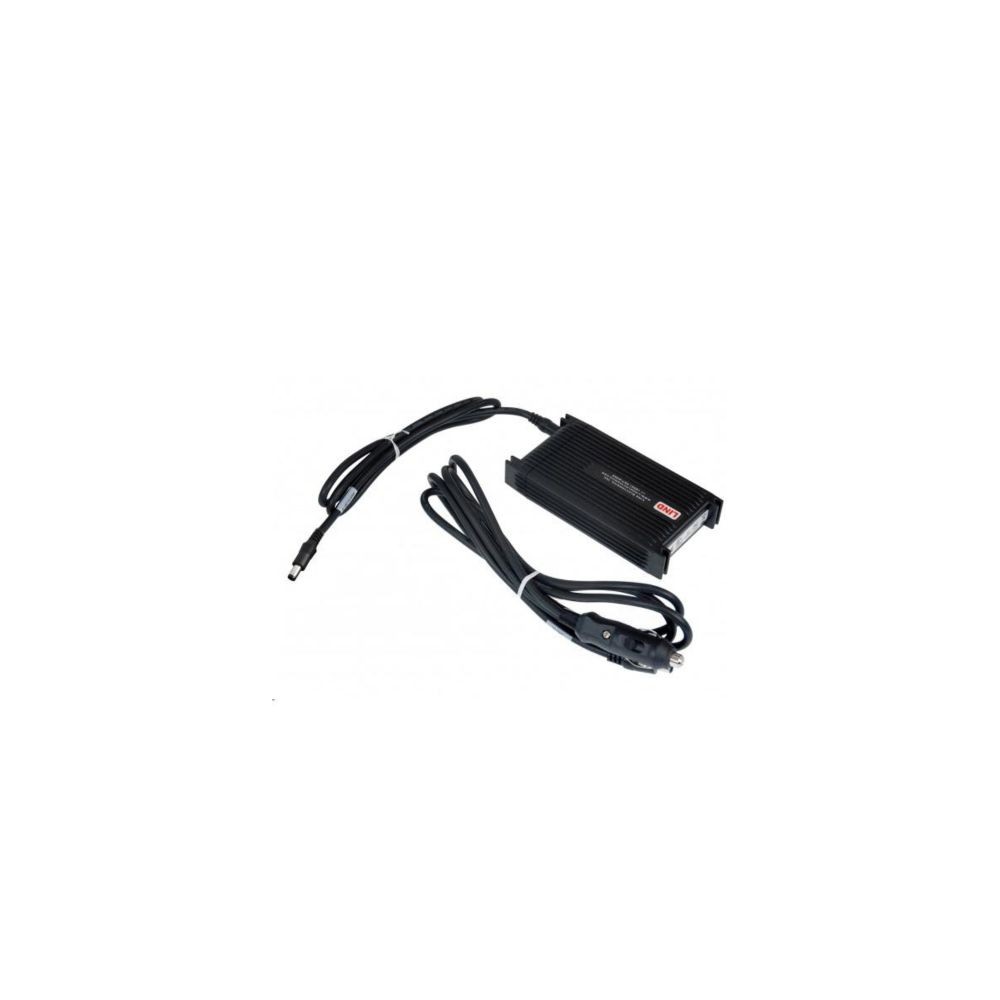

The Havis LPS-116 is a 95W non-isolated DC power supply designed for compatible Havis docking stations used with Getac rugged mobile computers. It accepts 12–16V DC input from a vehicle electrical system and provides 19V DC output for supported docking equipment.
The power supply kit includes a 6-foot input cable with a cigarette-lighter adapter, a 3-foot output cable with a straight-tip connector, and mounting hardware. It is intended for compatible Havis DS-GTC docking station configurations used in mobile computing environments.
Key Features
- 95W power rating: Supplies power to compatible Havis Getac docking station configurations.
- Vehicle DC input: Supports a specified input range of 12–16V DC.
- 19V DC output: Provides the output voltage required by supported docking equipment.
- Straight-tip output connector: Includes a 3-foot cable for connection to compatible docking stations.
- Vehicle-ready cable kit: Includes a 6-foot cigarette-lighter input cable and mounting hardware.
Compatibility
Havis documentation identifies the LPS-116 for compatible docking stations in these series:
- Havis DS-GTC-210 Series
- Havis DS-GTC-310 Series
- Havis DS-GTC-410 Series
- Havis DS-GTC-510 Series
Associated Getac computer models may include the F110, T800, V110, and RX10, depending on the specific docking station configuration. Verify compatibility with the exact dock and computer model before ordering.
Technical Specifications
| Brand | Havis |
|---|
| Manufacturer Part Number | LPS-116 |
|---|
| Product Type | Non-isolated in-vehicle DC power supply |
|---|
| Maximum Output Power | 95W |
|---|
| Input Voltage | 12–16V DC |
|---|
| Output Voltage | 19V DC |
|---|
| Input Connector | Cigarette-lighter adapter |
|---|
| Input Cable Length | 6 feet (72 inches) |
|---|
| Output Connector | Straight-tip connector |
|---|
| Output Cable Length | 3 feet (36 inches) |
|---|
| Compatible Docking Stations | DS-GTC-210, DS-GTC-310, DS-GTC-410, and DS-GTC-510 Series |
|---|
| Dimensions | Approximately 1.1 × 4.7 × 2.3 inches |
|---|
Package Contents
- Havis LPS-116 95W DC power supply
- 6-foot input cable with cigarette-lighter adapter
- 3-foot output cable with straight-tip connector
- Mounting hardware
Important Compatibility Note
The LPS-116 is designed for compatible Havis Getac docking station configurations and is not a universal laptop power adapter. Confirm the docking station series, connector type, and electrical requirements before installation.
Frequently Asked Questions
1. What is the Havis LPS-116?
The Havis LPS-116 is a 95W in-vehicle DC power supply designed for compatible Havis Getac docking stations.
2. What input voltage does it support?
The specified input voltage range is 12–16V DC.
3. What output voltage does it provide?
The LPS-116 provides 19V DC output with a maximum power rating of 95W.
4. Which docking stations are compatible?
Compatible docking station families include the DS-GTC-210, DS-GTC-310, DS-GTC-410, and DS-GTC-510 Series. Confirm the exact model before purchase.
5. What cables are included?
The kit includes a 6-foot input cable with a cigarette-lighter adapter and a 3-foot output cable with a straight-tip connector.
6. Does the package include mounting hardware?
Yes. Mounting hardware is included with the power supply kit.
