Overview

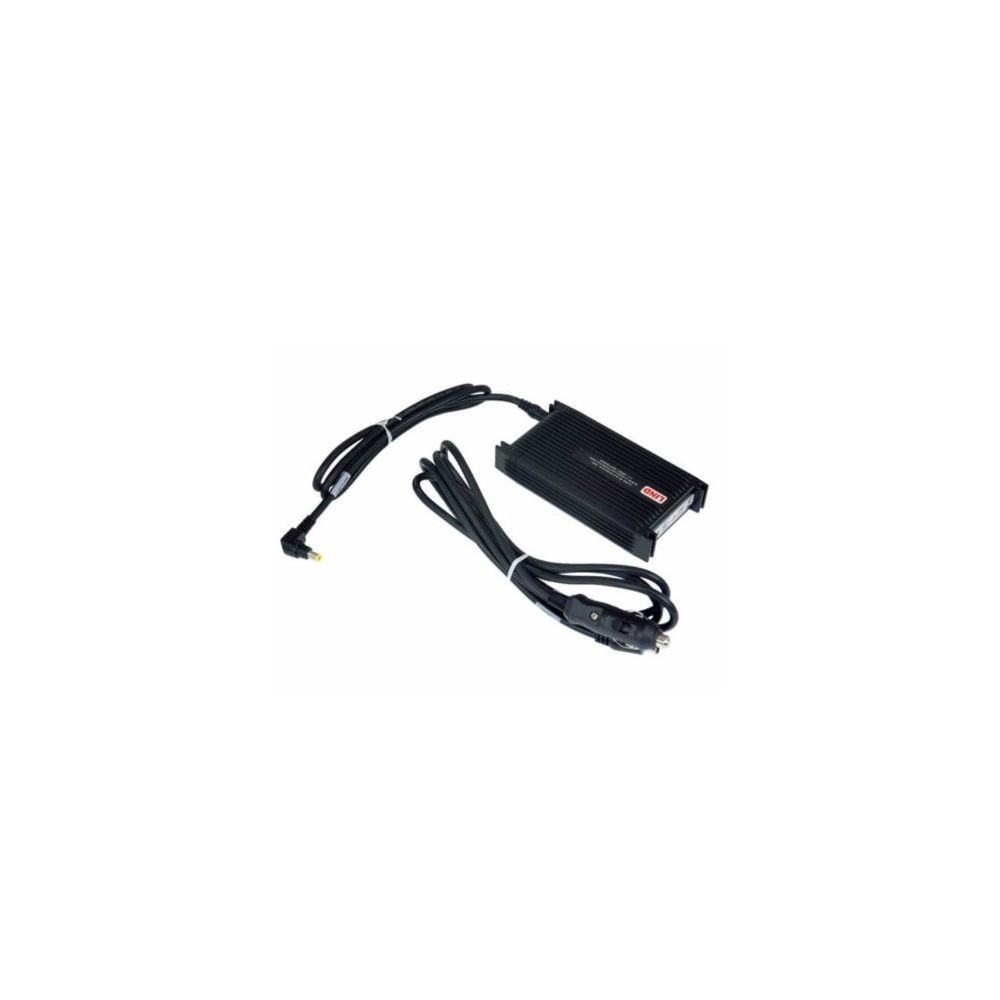

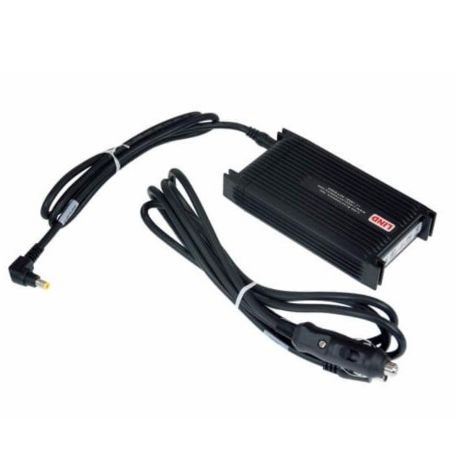

The Havis LPS-103 is a 120W non-isolated DC power supply designed for compatible Havis docking stations used with Panasonic Toughbook mobile computers. It converts vehicle DC power into a 15V DC output for supported docking equipment.
This model features a 90-degree yellow-tip output connector and a cigarette-lighter input cable. Its power rating and connector configuration make it important to verify the docking station model before selecting it for a new installation or replacement.
Power Delivery and Connectivity
The LPS-103 accepts a 12–16V DC input and supplies 15V DC output, with a maximum rated power of 120W. The input cable connects to a compatible vehicle cigarette-lighter outlet, while the output cable connects to supported docking equipment through a 90-degree yellow-tip connector.
The power supply kit includes a 6-foot input cable, a 3-foot output cable, and mounting hardware. These components support integration into a suitable vehicle-based computing installation.
Docking Station Compatibility
Havis's current product catalog identifies the LPS-103 for the following Panasonic docking station series:
- DS-PAN-1110 Series
- DS-PAN-1200 Series
- DS-PAN-1500 Series
Compatibility depends on the exact docking station model and its electrical and connector requirements. Do not assume that every Panasonic Toughbook docking station uses the same power supply, even when its power rating appears similar.
Key Features
- 120W output capacity: Provides power for compatible Panasonic docking station installations.
- 15V DC output: Supplies the specified output voltage for supported equipment.
- Non-isolated design: Intended for compatible vehicle-powered computing applications.
- 90-degree yellow-tip connector: Provides an angled output connection for supported docking stations.
- Vehicle power connection: Includes a 6-foot input cable with a cigarette-lighter adapter.
Applications
- Vehicle-mounted Panasonic Toughbook systems using compatible Havis docking stations.
- Mobile computing installations requiring a 120W DC power supply.
- Replacement of an existing LPS-103 power supply when the original connector and docking station specifications match.
- Professional vehicle workstations using supported DS-PAN docking station models.
DC Supplies Product Note
Confirm the exact docking station part number before ordering. Havis's current catalog identifies the LPS-103 for the DS-PAN-1110, DS-PAN-1200, and DS-PAN-1500 Series, while older Havis documentation lists different compatibility information. For replacements or legacy installations, use the documentation corresponding to the specific docking station and verify the required output connector.
Specifications
| Specification | Details |
|---|---|
| Brand | Havis |
| Manufacturer | Havis, Inc. |
| Part Number / MPN | LPS-103 |
| Product Type | Vehicle DC power supply |
| Power Supply Design | Non-isolated |
| Maximum Output Power | 120W |
| Input Voltage Range | 12–16V DC |
| Output Voltage | 15V DC |
| Input Connector | Cigarette-lighter adapter |
| Input Cable Length | 6 feet |
| Output Connector | 90-degree yellow-tip connector |
| Output Cable Length | 3 feet |
| Compatible Docking Station Series | DS-PAN-1110, DS-PAN-1200, DS-PAN-1500 |
| Compatible Computer Platform | Selected Panasonic Toughbook configurations using compatible docking stations |
| Package Contents | 120W power supply, 6-foot input cable with cigarette-lighter adapter, 3-foot output cable, and mounting hardware |
| UPC | 840056708846 |
Frequently Asked Questions
1. What is the Havis LPS-103 used for?
The LPS-103 supplies vehicle DC power to compatible Havis docking stations used with Panasonic Toughbook mobile computers.
2. Which docking stations are compatible with this power supply?
Havis's current catalog lists the DS-PAN-1110, DS-PAN-1200, and DS-PAN-1500 Series. Check the exact docking station documentation before purchasing.
3. What type of output connector does the LPS-103 use?
It uses a 90-degree yellow-tip connector attached to a 3-foot output cable. Confirm that the docking station accepts this connector type.
4. What vehicle input does the LPS-103 require?
The specified input range is 12–16V DC. The included 6-foot input cable uses a cigarette-lighter adapter, so the vehicle power source must meet the required input specifications.
5. Is the LPS-103 interchangeable with other Havis power supplies?
Not automatically. Other Havis power supplies may use different output voltages, wattage ratings, or connectors. Verify the original power supply's specifications and the docking station requirements before selecting a replacement.
6. What comes with the LPS-103?
The listed kit includes the 120W power supply, a 6-foot input cable with a cigarette-lighter adapter, a 3-foot output cable, and mounting hardware.
