Overview

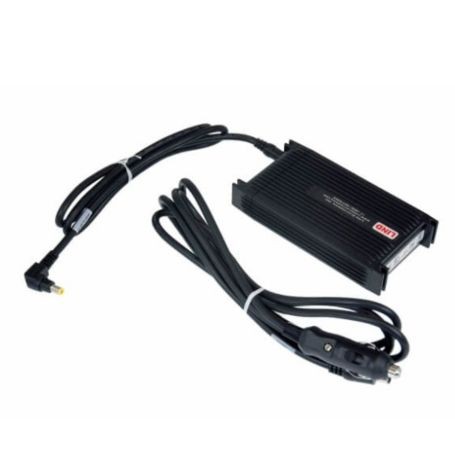

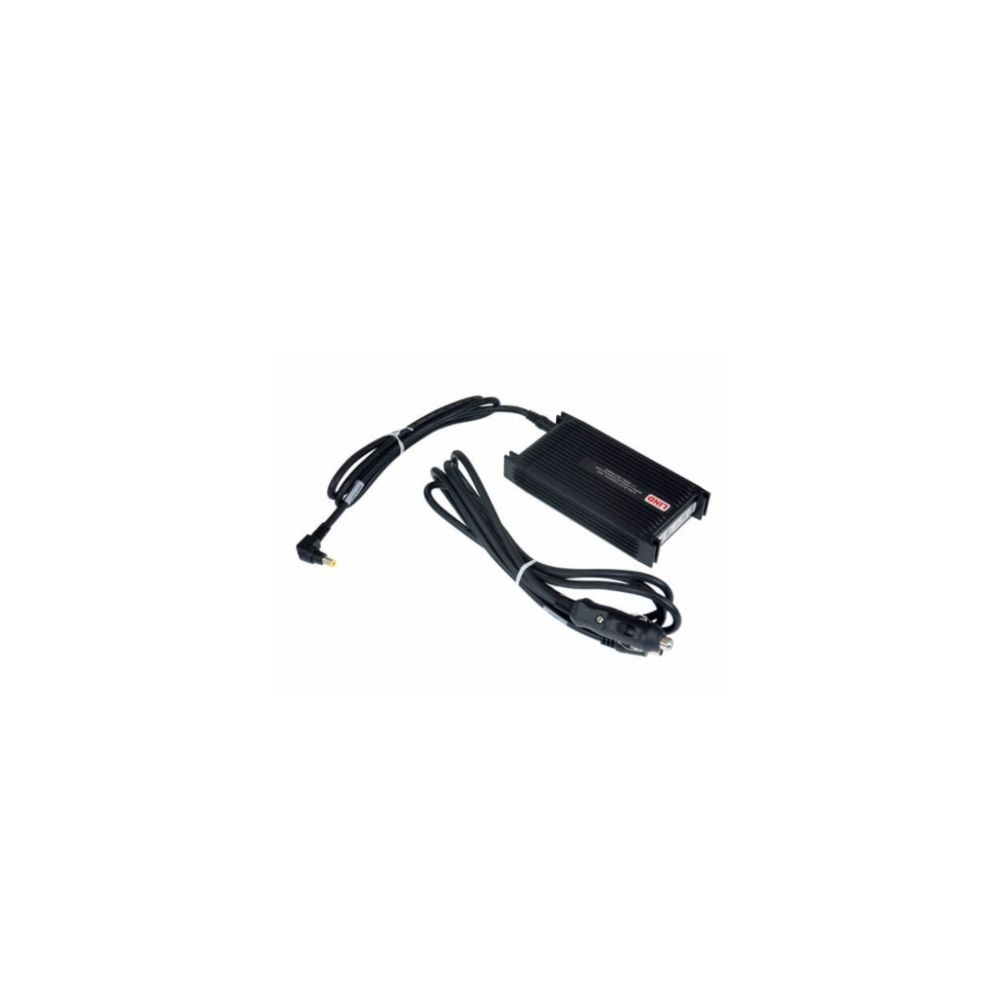

The Havis LPS-102 is a 90W non-isolated DC power supply designed for compatible Panasonic Toughbook docking stations and mobile computing installations. It converts vehicle DC power into regulated DC output for supported docking equipment.
Havis identifies this model for use with selected docking stations, including the DS-PAN-1010 and DS-PAN-1400 Series. The current manufacturer catalog identifies a straight barrel output connector, making connector configuration an important consideration when selecting this power supply.
Power Delivery and Connectivity
The LPS-102 is rated for 90W output and is designed for vehicle-powered computing installations. The manufacturer's published specifications for this power-supply model identify a 12–16V DC input range and 15V DC output.
The output connector must match the docking station's power input. Because connector configurations can vary between product generations and documentation, confirm the connector required by the exact docking station before ordering.
Compatibility
Havis's current product catalog identifies the LPS-102 for the following docking station families:
- Havis DS-PAN-1010 Series
- Havis DS-PAN-1400 Series
The LPS-102 is also listed in Havis's Panasonic Toughbook G2 and Toughbook A3 approved power-supply categories. Compatibility should be confirmed for the specific docking station and device configuration.
Do not assume that every Panasonic docking station accepts the same power supply. Models in other DS-PAN series may require a different wattage, output connector, or power-supply configuration.
Key Features
- 90W power capacity: Provides power for compatible Panasonic docking station installations.
- Non-isolated DC design: Intended for supported vehicle-powered computing applications.
- Vehicle DC input: Designed for a 12–16V DC input range according to published specifications.
- Docking station connectivity: The current Havis catalog identifies a straight barrel output connector.
Applications
- Vehicle-mounted Panasonic Toughbook G2 computing systems using compatible Havis docking stations.
- Panasonic Toughbook A3 tablet installations with supported docking equipment.
- Mobile workstations requiring a compatible 90W vehicle DC power supply.
- Replacement of an existing power supply when the original part number and connector configuration match.
DC Supplies Product Note
Verify the docking station's exact part number and physical power connector before purchasing. Earlier Havis documentation describes an LPS-102 configuration with a right-angle yellow-tip connector, while the current manufacturer catalog identifies a straight barrel connector for the DS-PAN-1010 and DS-PAN-1400 Series. Confirm the required connector against the current documentation for the intended equipment rather than relying on the LPS-102 part number alone.
Specifications
| Specification | Details |
|---|---|
| Brand | Havis |
| Manufacturer | Havis, Inc. |
| Part Number / MPN | LPS-102 |
| Product Type | Vehicle DC power supply |
| Power Supply Design | Non-isolated |
| Rated Output Power | 90W |
| Input Voltage | 12–16V DC |
| Output Voltage | 15V DC |
| Output Connector | Straight barrel connector, according to the current Havis catalog |
| Compatible Manufacturer | Panasonic |
| Compatible Docking Station Series | DS-PAN-1010 and DS-PAN-1400 Series |
| Compatible Device Categories | Selected Panasonic Toughbook G2 and Toughbook A3 configurations |
| Primary Application | Vehicle-powered mobile computing |
Frequently Asked Questions
1. What is the Havis LPS-102 used for?
The LPS-102 is a 90W non-isolated DC power supply intended for compatible Panasonic docking stations used in mobile computing installations.
2. Which docking stations are listed as compatible?
The current Havis catalog identifies the DS-PAN-1010 and DS-PAN-1400 Series. Check the exact docking station documentation to confirm compatibility before ordering.
3. What should I verify before purchasing?
Confirm the docking station's exact model number, required output voltage, power rating, and connector configuration. These details determine whether the power supply is suitable for the intended installation.
4. Is the LPS-102 compatible with every Panasonic Toughbook?
No. Compatibility depends on the computer and docking station configuration. A compatible device family alone does not guarantee that every docking station or power input will work with this model.
5. Can the LPS-102 replace another Havis power supply?
Only when the replacement is approved for the same equipment and matches the required electrical specifications and connector configuration. Similar power ratings do not establish interchangeability.
