Overview
The Havis LPS-101 is a 90W vehicle power supply designed for compatible Havis docking stations used with Panasonic mobile computers. It converts vehicle DC power into a 15V DC output for supported docking configurations.

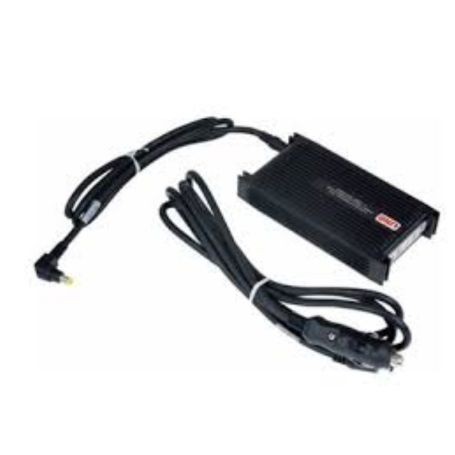

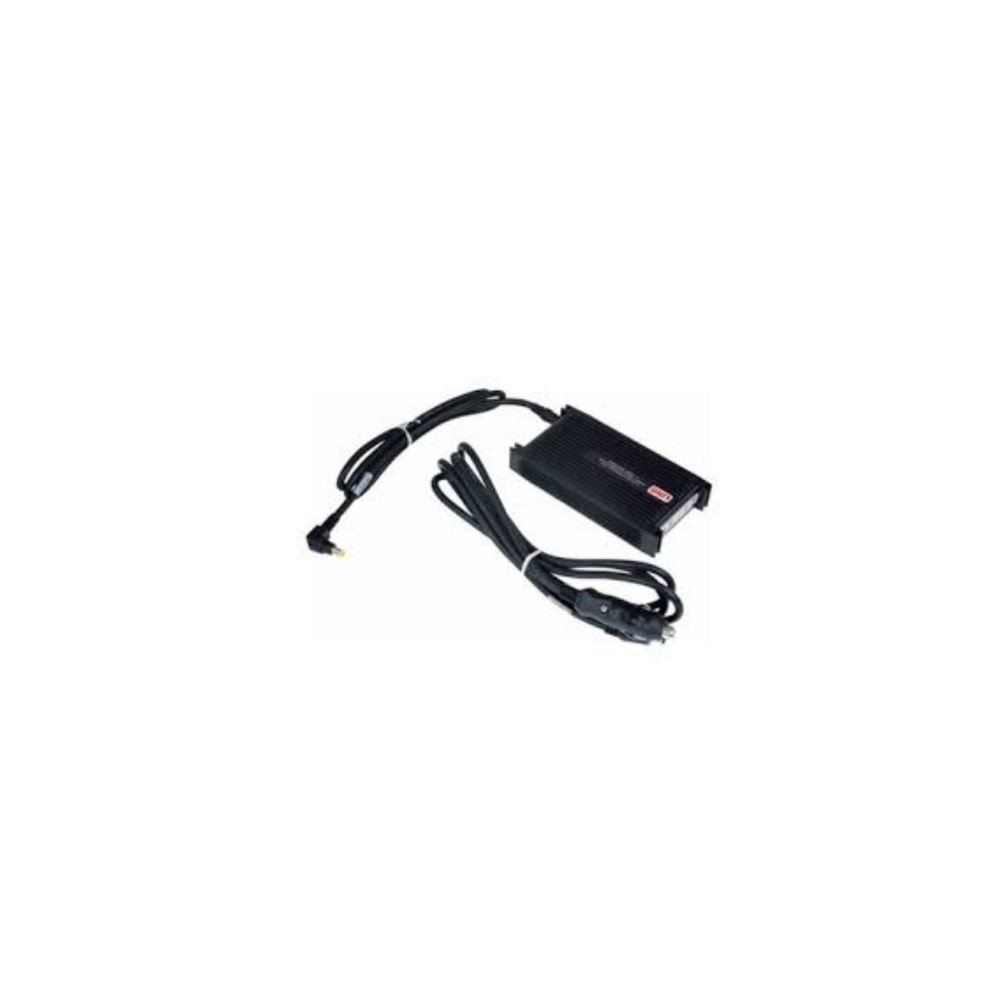

The power supply kit includes a LIND power supply, a 6-foot input cable with a cigarette-lighter adapter, a 3-foot output power cable with a threaded connector, and mounting hardware. This configuration supports vehicle-based computing installations where a compatible Havis docking station requires external DC power.
Power Delivery and Connectivity
The LPS-101 accepts 12–16V DC input and provides 15V DC output, with a maximum power rating of 90W. Its input cable connects to a compatible vehicle cigarette-lighter outlet, while the threaded output connector connects to supported Havis docking equipment.
The threaded output connector is an important compatibility consideration. This supply should be selected according to the docking station's specified power requirements and connector type rather than voltage or wattage alone.
Compatible Docking Stations
Havis identifies the LPS-101 for use with the following docking station families:
- Havis DS-PAN-100 Series
- Havis DS-PAN-200 Series
- Havis DS-PAN-210 Series
- Havis DS-PAN-220 Series
Some docking stations without electronics require a different power supply configuration. Havis specifically identifies the DS-PAN-103, DS-PAN-202, and DS-PAN-213 as models for which the LPS-102 should be used when a 90W supply is required. Confirm the exact docking station part number before ordering.
Key Features
- 90W power capacity: Supplies up to 90W for compatible Havis docking station installations.
- Vehicle DC input: Accepts an input voltage range of 12–16V DC.
- Threaded output connector: Provides the specified connector type for compatible docking stations.
- Vehicle cigarette-lighter input: Includes a 6-foot input cable with a cigarette-lighter adapter.
- Installation hardware: The listed kit includes a mounting hardware set for suitable installation.
Applications
- Vehicle-mounted Panasonic Toughbook computing systems using compatible Havis docking stations.
- Mobile workstations requiring a dedicated 90W docking station power supply.
- Replacement of an existing compatible Havis LPS-101 power supply.
- Vehicle computing installations using supported DS-PAN docking station families.
DC Supplies Product Note
Verify whether the docking station has integrated electronics and check its exact model number before selecting this power supply. Havis specifies the LPS-102 for certain docking stations without electronics that require a 90W supply, including the DS-PAN-103, DS-PAN-202, and DS-PAN-213. Selecting by wattage alone may result in an incompatible installation.
Specifications
| Specification | Details |
|---|---|
| Brand | Havis |
| Manufacturer | Havis, Inc. |
| Part Number / MPN | LPS-101 |
| Product Type | Vehicle docking station power supply |
| Power Supply Brand | LIND |
| Maximum Output Power | 90W |
| Input Voltage Range | 12–16V DC |
| Output Voltage | 15V DC |
| Input Connection | Cigarette-lighter adapter |
| Input Cable Length | 6 feet |
| Output Connector | Threaded connector |
| Output Cable Length | 3 feet |
| Device Supported | Compatible Havis docking stations |
| Compatible Docking Station Families | DS-PAN-100, DS-PAN-200, DS-PAN-210 and DS-PAN-220 Series, subject to model-specific requirements |
| Package Contents | 90W LIND power supply, 6-foot input cable with cigarette-lighter adapter, 3-foot output cable with threaded connector, and mounting hardware |
| UPC | 729198036287 |
Frequently Asked Questions
1. What is the Havis LPS-101 used for?
The LPS-101 supplies vehicle DC power to compatible Havis docking stations used in mobile computing installations, including supported Panasonic Toughbook configurations.
2. Which Havis docking stations are compatible?
Havis identifies the DS-PAN-100, DS-PAN-200, DS-PAN-210, and DS-PAN-220 Series. Compatibility should be checked against the exact docking station model and its power requirements.
3. What type of output connector does the LPS-101 use?
It uses a threaded output connector attached to a 3-foot cable. Confirm that the docking station requires this connector before purchasing.
4. Can the LPS-101 replace the LPS-102?
Not in every installation. Although both models are rated at 90W, their output connector configurations and supported docking station applications differ. Havis specifies the LPS-102 for certain docking stations without electronics that require a 90W supply.
5. What is included with the LPS-101?
The listed kit includes a 90W LIND power supply, a 6-foot input cable with a cigarette-lighter adapter, a 3-foot output cable with a threaded connector, and mounting hardware.
6. Can the LPS-101 be connected to any vehicle power outlet?
The vehicle power source must provide a suitable DC input within the specified 12–16V range. Confirm the vehicle outlet and installation requirements before connecting the supply.
