Overview

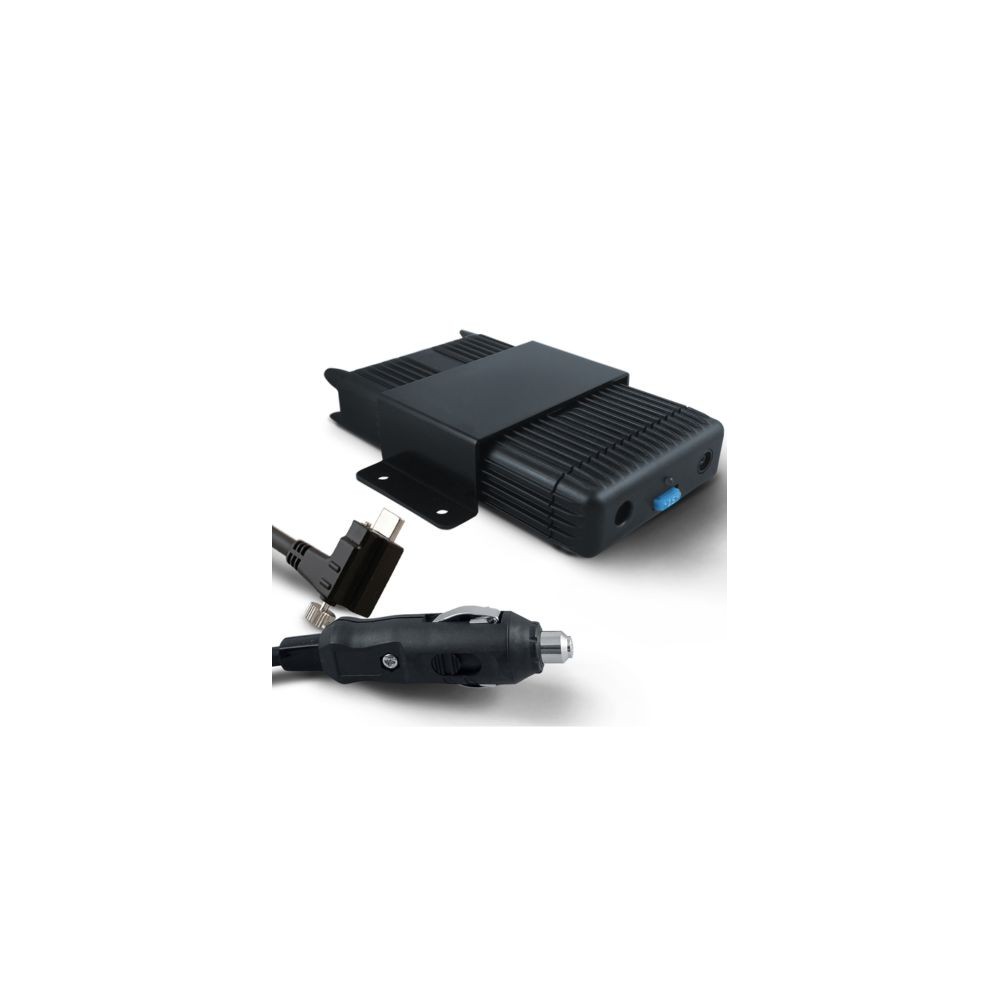

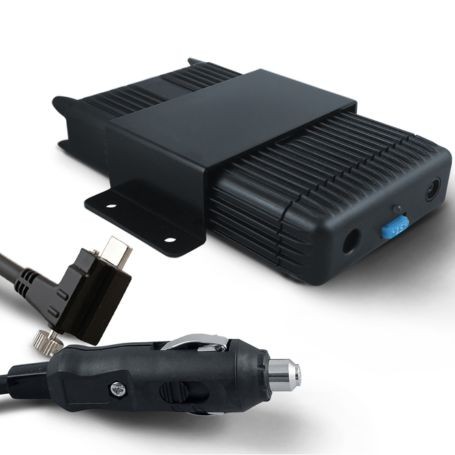

The Havis LPS-1003 is a 100W non-isolated LIND DC power supply designed to provide USB-C Power Delivery for compatible notebooks and tablets in vehicle-based computing environments. It accepts vehicle DC input and supplies power through a USB-C output cable featuring a 90-degree right-angle locking screw-pin connector.
The locking connector distinguishes this model from USB-C power supplies with standard straight or non-locking angled connectors. It is intended for compatible mobile computing installations where the connector's retention mechanism is an important part of the connection design.
Power Delivery and Connectivity
The LPS-1003 supports an input voltage range of 11–16V DC and delivers up to 100W through USB-C Power Delivery. The output is rated for a maximum current of 5A.
The power supply includes a detachable 36-inch USB-C output cable with a 90-degree right-angle locking screw-pin connector and a detachable 72-inch vehicle input cable with a cigarette-lighter plug.
Compatibility
Havis lists the following docking stations and tablet cradles as compatible with this power supply:
- DS-DELL-903
- DS-DELL-903-4
- DS-DELL-1103
- UT-2021
- UT-1007
The LPS-1003 is also intended for compatible notebooks and tablets. Confirm that the target device supports the required USB-C Power Delivery profile and that its connector arrangement is compatible with the locking screw-pin output.
Key Features
- 100W power output: Provides USB-C Power Delivery for compatible mobile computing equipment.
- Locking USB-C connector: Uses a 90-degree right-angle connector with a locking screw-pin retention mechanism.
- Vehicle DC input: Accepts an input voltage range of 11–16V DC.
- Detachable input and output cables: Provides separate cables for vehicle power and USB-C connectivity.
- Non-isolated design: Uses a non-isolated DC power supply configuration.
Applications
- Vehicle-based notebook and tablet computing installations.
- Mobile workstations using compatible Havis docking stations and cradles.
- USB-C-powered computing systems requiring a locking right-angle connector.
- Vehicle installations where connector retention and cable routing are important considerations.
DC Supplies Product Note
Check the device-side connector and locking arrangement before ordering. The LPS-1003 uses a right-angle USB-C connector with a locking screw-pin mechanism, which differs from the straight connector on the LPS-1001 and the non-locking right-angle connector on the LPS-1002. Confirm that the connected equipment is designed to accept the LPS-1003 connector rather than assuming that all USB-C connections are mechanically interchangeable.
Specifications
| Specification | Details |
|---|---|
| Brand | Havis |
| Manufacturer / Product Line | Havis / LIND |
| Part Number / MPN | LPS-1003 |
| Product Type | Vehicle DC power supply |
| Power Supply Design | Non-isolated |
| Maximum Output Power | 100W |
| Input Voltage Range | 11–16V DC |
| Output Interface | USB-C Power Delivery |
| Maximum Output Current | 5A |
| Output Connector | 90-degree right-angle locking screw-pin USB-C |
| Input Connection | Cigarette-lighter plug |
| Input Cable Length | 72 inches (6 feet) |
| Output Cable Length | 36 inches (3 feet) |
| Input Cable | Detachable vehicle input cable |
| Output Cable | Detachable USB-C power cable with locking screw-pin connector |
| Supported Device Categories | Compatible notebooks, tablets and docking arrangements |
| Compatible Havis Cradles | DS-DELL-903, DS-DELL-903-4, DS-DELL-1103, UT-2021, UT-1007 |
| TAA Compliance | Listed as TAA compliant by an authorized distributor |
| UPC | 0840056728820 |
Frequently Asked Questions
1. What is the Havis LPS-1003 used for?
It supplies up to 100W of DC power through USB-C Power Delivery for compatible notebooks, tablets and supported Havis docking configurations in vehicle-based installations.
2. What is the benefit of its locking USB-C connector?
The locking screw-pin mechanism provides additional physical retention compared with a standard non-locking USB-C connector. The connected equipment must support the corresponding connector arrangement.
3. Which Havis docking stations and cradles are compatible?
The listed compatible models are DS-DELL-903, DS-DELL-903-4, DS-DELL-1103, UT-2021 and UT-1007. Verify the specific computer and docking configuration before purchasing.
4. What input voltage does the LPS-1003 require?
The specified input range is 11–16V DC. The included input cable uses a cigarette-lighter plug, so the vehicle power source and installation must meet the supply's input requirements.
5. Are the power cables included?
The listed configuration includes a detachable 72-inch vehicle input cable and a detachable 36-inch USB-C output cable with a 90-degree right-angle locking screw-pin connector.
6. Can the LPS-1003 power any USB-C notebook or tablet?
No. The device must support compatible USB-C Power Delivery operation, meet the supply's power requirements and accept the specified locking connector arrangement. Check the device manufacturer's documentation before selecting a power supply.
