Detailed Specifications

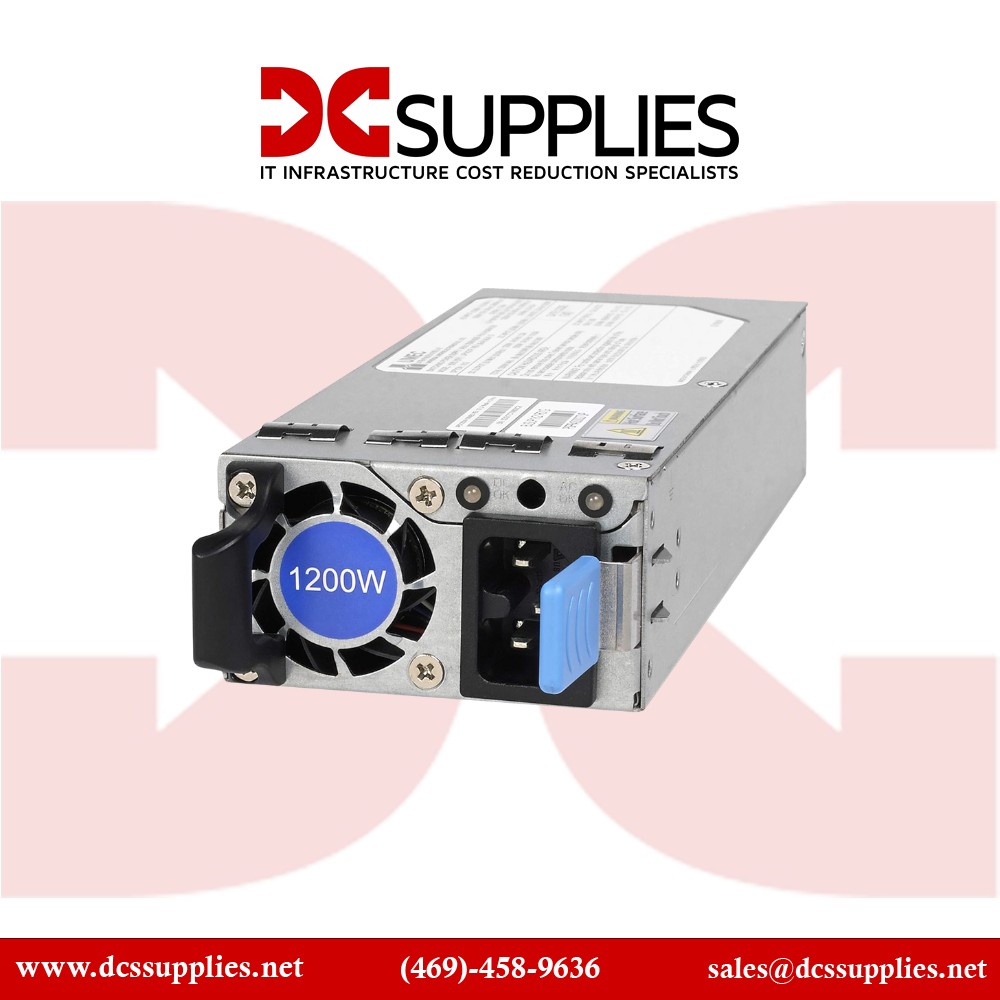

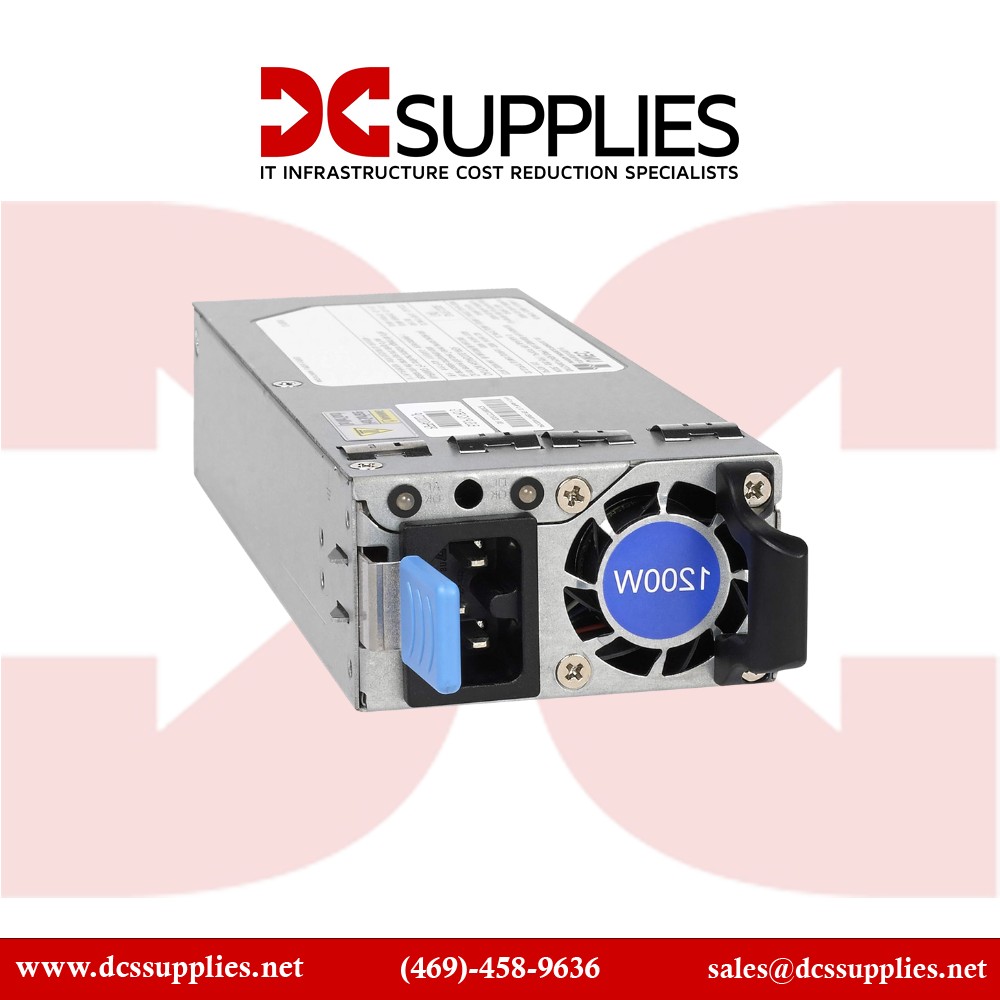

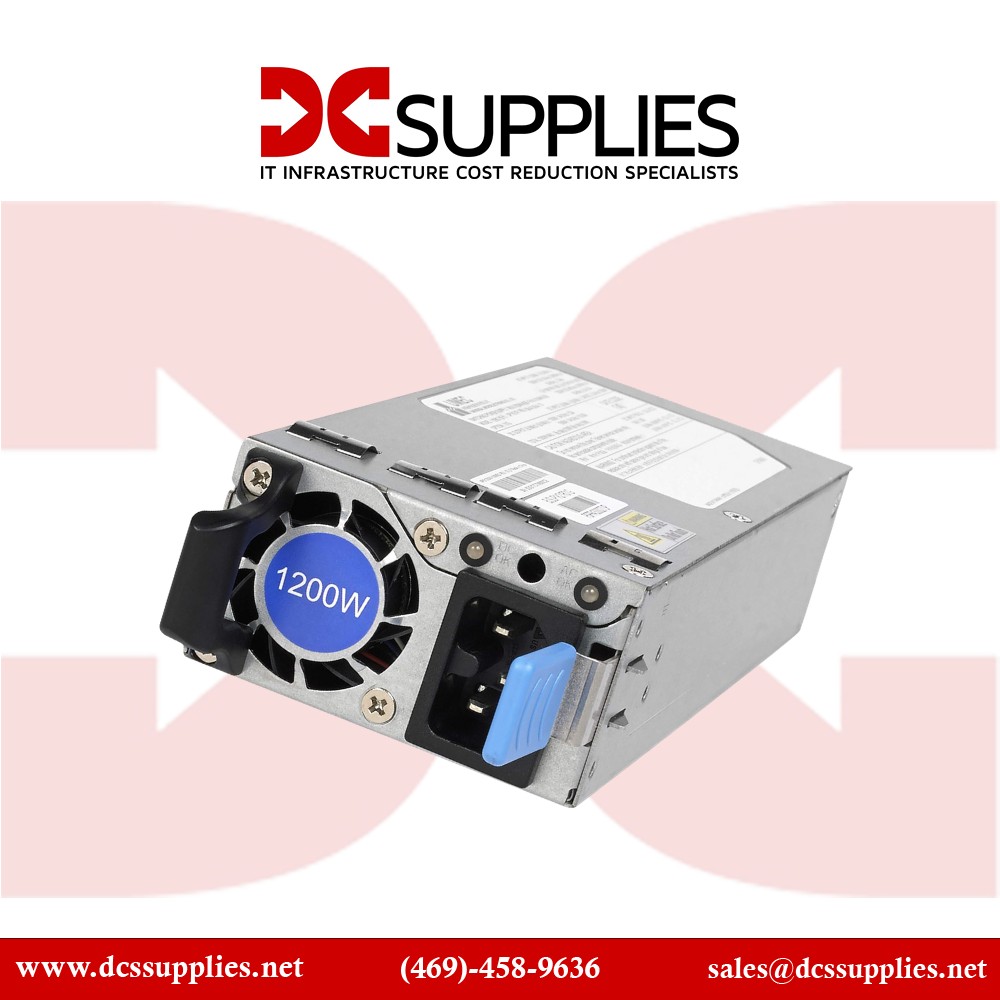

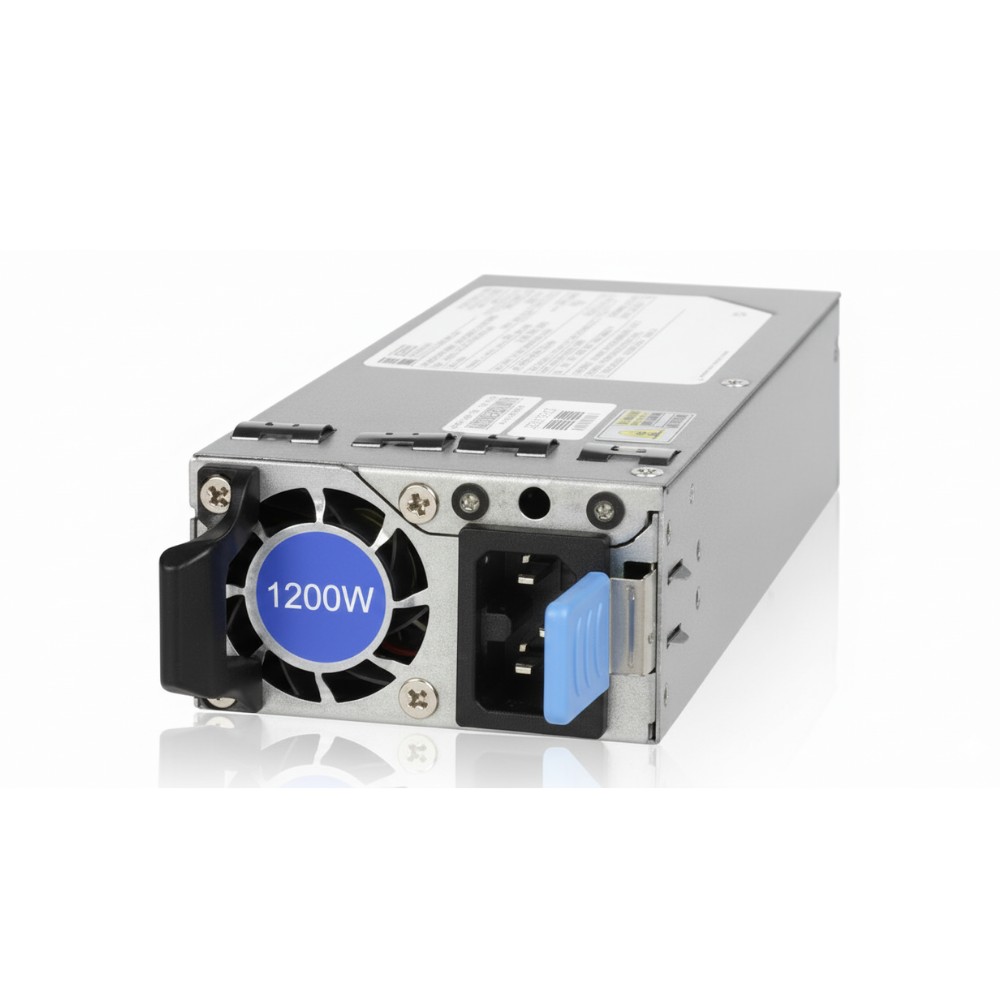

Netgear APS1200W-100NES - Modular Power Supply Unit
Overview :
This is a modular mains-to-DC power supply intended for use by networking engineers in switch chassis supporting hot-swappable PSUs. It delivers up to 1,200 W and is designed for PoE+ operation in compatible systems. It attaches into compatible slots of high-density switches (notably the M4300-96X family). It is typically deployed in data centers, distribution switches, or campus core racks. In multi-PSU setups it can integrate with the platform's internal load-sharing logic.
Key Features :
Supports PoE+ load in supported switch chassis
90-264 VAC wide input range
54.5 VDC @ 22 A (at 230 VAC)
Hot-swappable and redundant capable
Specifications :
| Parameter | Value |
|---|
| Brand | Netgear |
| Part Number | APS1200W-100NES |
| Product Type | Modular Switch Power Supply |
| AC Input | 90-132 VAC, 15 A, 43-67 Hz or 180-264 VAC, 8 A, 43-67 Hz |
| DC Output | 54.5 VDC @ 22 A (at 230 VAC), or 18.35 A (at 115 VAC) |
| Operating Temperature | -5 °C to 50 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5 % to 95 % non-condensing |
| Altitude (Operating) | Up to 5,000 m (16,000 ft) |
| Dimensions (H × W × D) | 40 × 73 × 185 mm |
| MTBF | ~4,534,733 hours @ 25 °C |
| Warranty | 5 years hardware limited warranty |
