Detailed Specifications

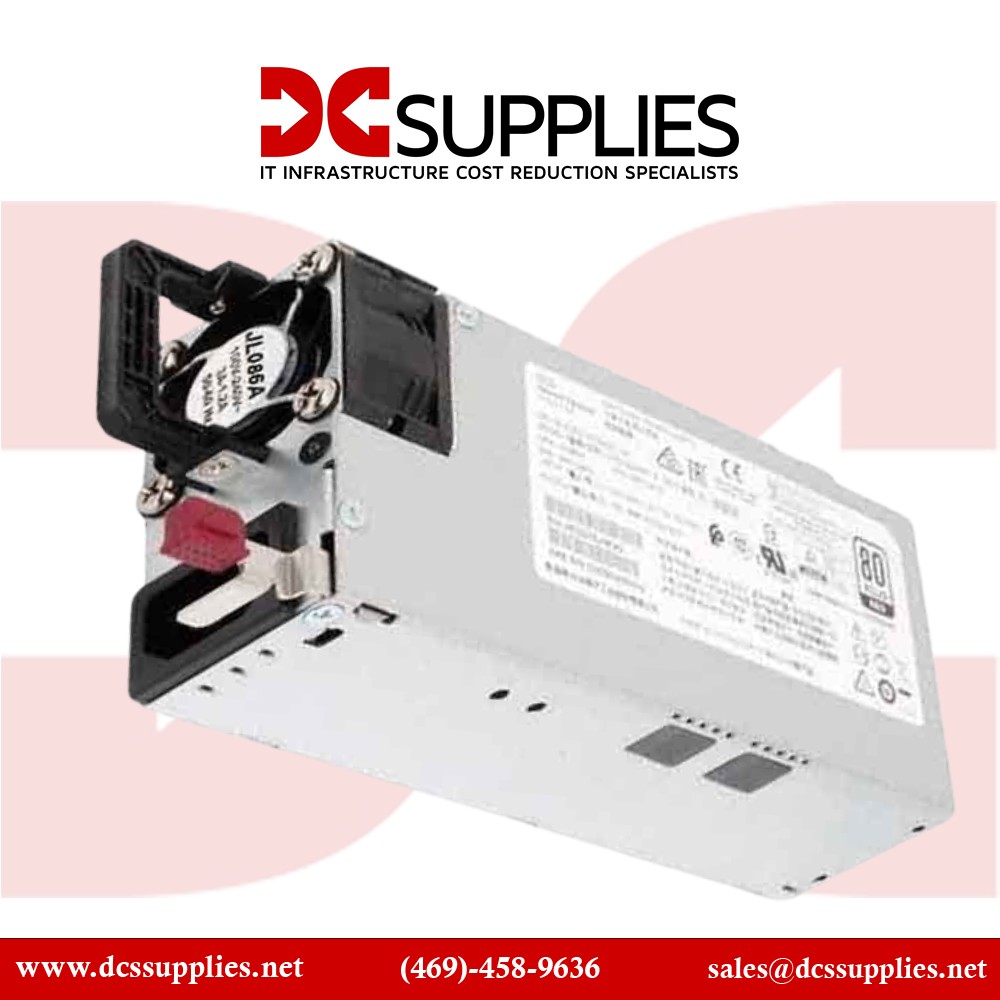

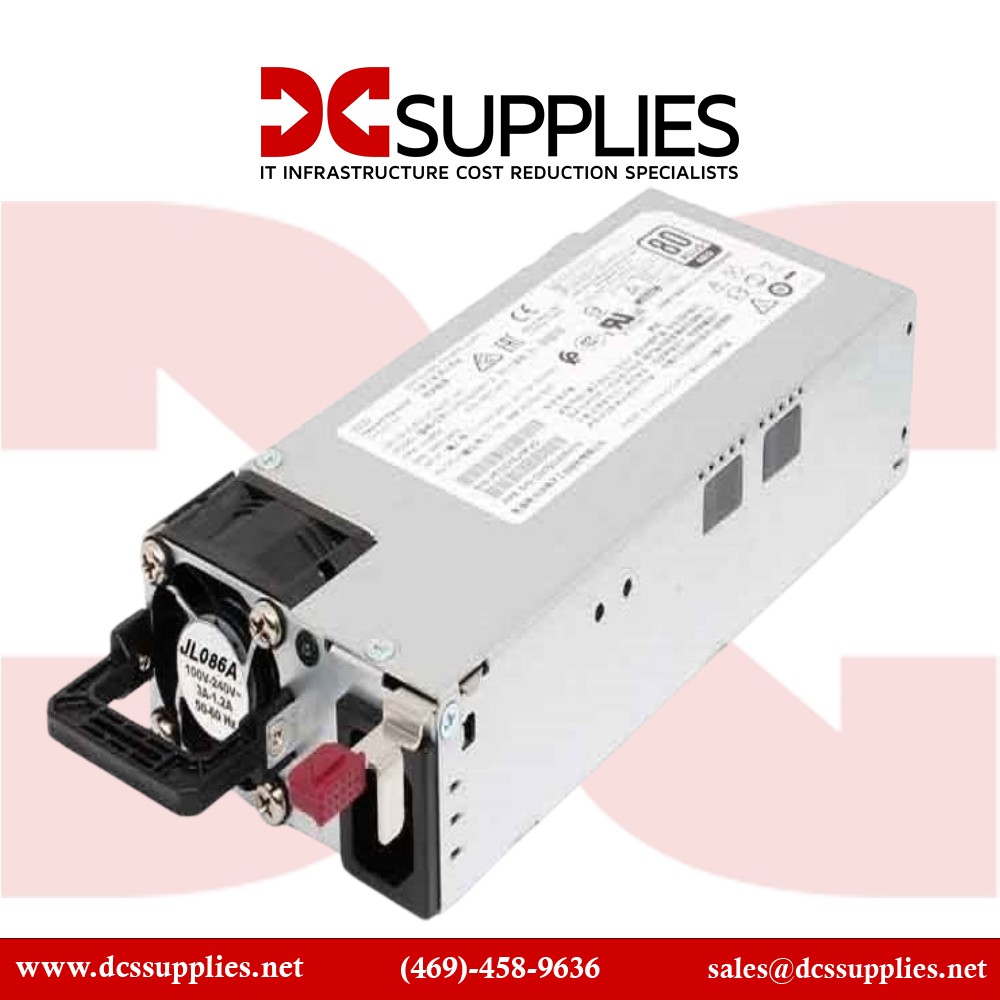

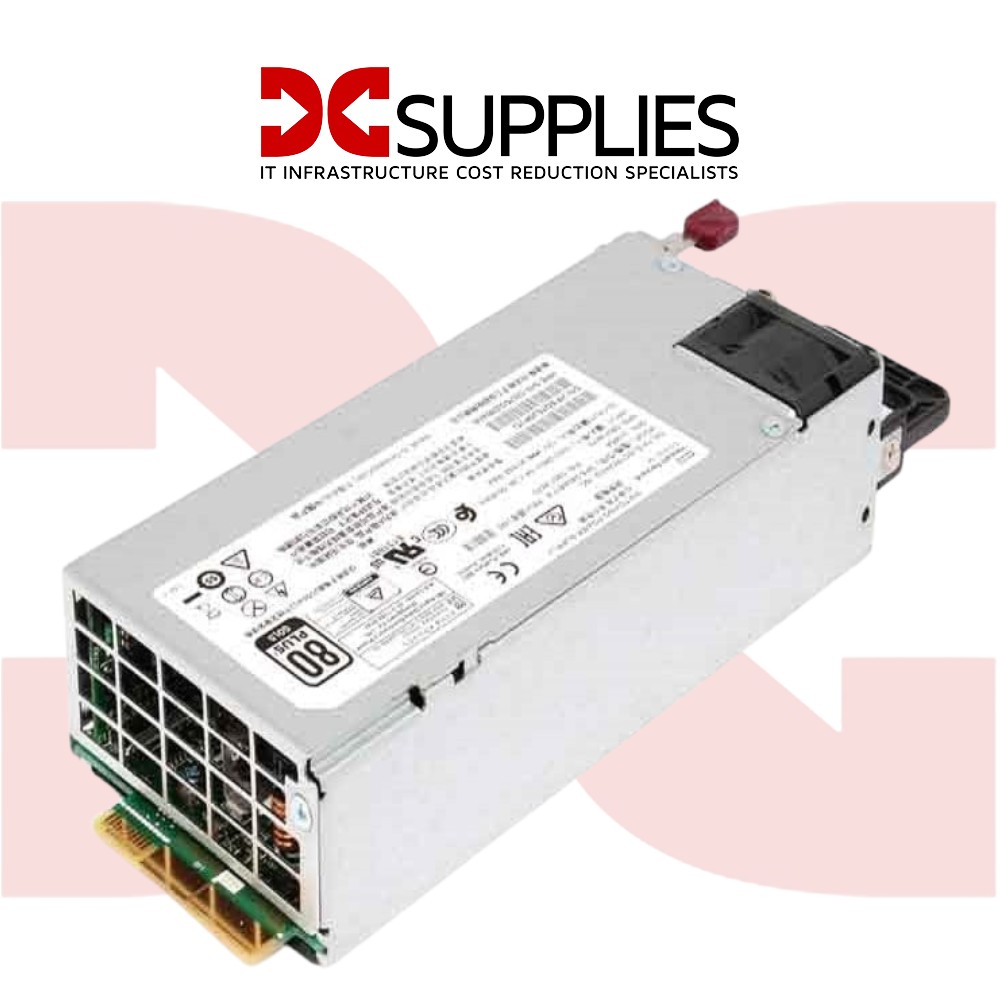

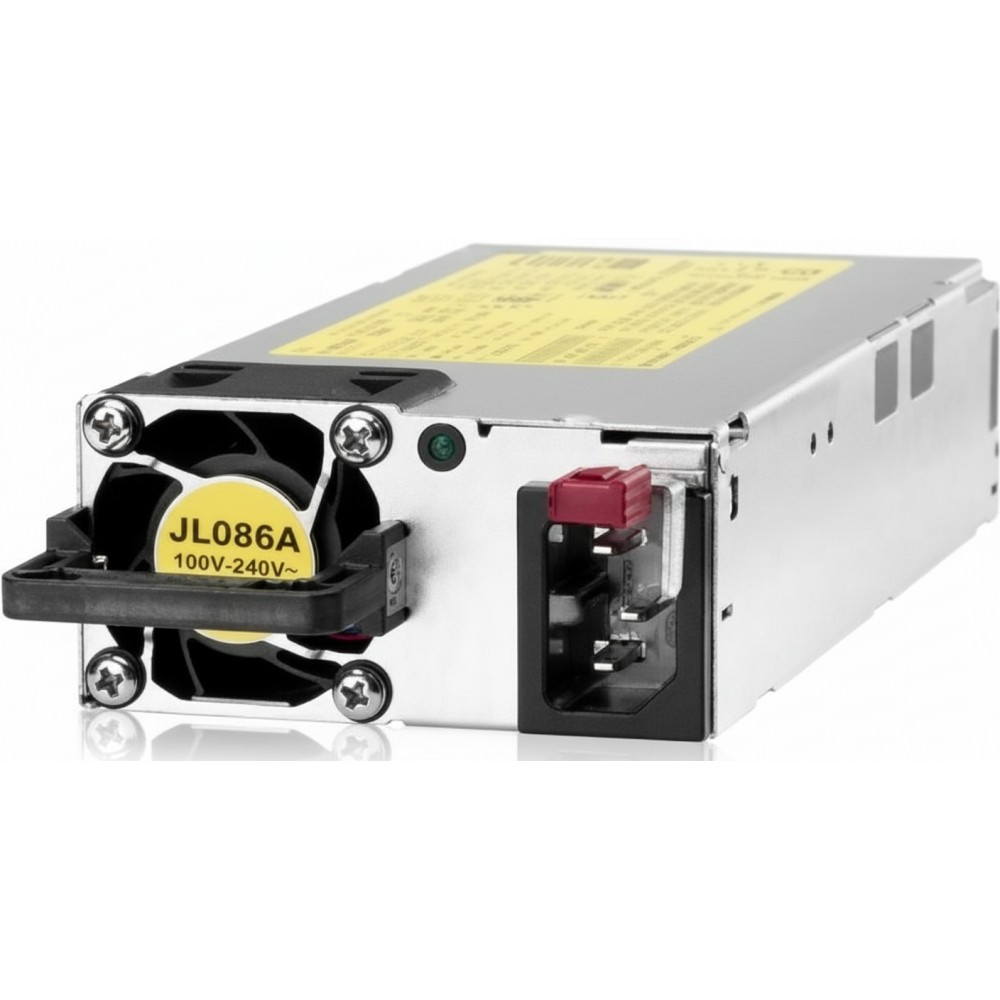

HPE Aruba JL086A 680W 54 VDC Hot-Plug Power Supply
Overview :
The HPE JL086A is a 680 W hot-plug redundant power supply module designed for select Aruba Networking switches. It accepts a wide input voltage range from 100-240 VAC and delivers a regulated 54 V DC output that supports high-density PoE installations. This module is intended for data-centre or enterprise-campus networking environments where continuous operation and high availability are required. It fits into compatible chassis or switch power-supply bays and includes automatic load sharing in redundant setups. Due to its slim form-factor and standard 8.9 in depth design, it supports rack-mounted switches without imposing significant space or airflow constraints. It integrates with the switch's power‐supply status monitoring features so that the system can alert administrators of module presence or failure.
Key Features :
680 W output at 54 V DC for PoE power delivery
Wide input range: 100-240 VAC for global deployment
Hot-plug/redundant capable for carrier-class uptime
Compact footprint: 3.3 in width, 8.9 in depth (approx)
Load-sharing support across dual modules in switch bay
Specifications :
| Specification | Detail |
|---|
| Brand | Hewlett Packard Enterprise |
| Part Number | JL086A |
| Product Type | Hot-plug redundant power supply |
| Input Voltage (AC) | 100-240 VAC |
| Output Voltage (DC) | 54 V DC |
| Maximum Power Capacity | 680 W |
| Efficiency Rating | 80 Plus Gold (verified) |
| Dimensions (W × H × D) | 3.3 in × (H unspecified) × 8.9 in |
| Weight | 1.82 lbs |
| Operating Frequency | 50/60 Hz |
| Compatible Switches | Aruba X372 / select Aruba chassis |
| Hot-Plug Support | Yes |
| Redundancy Support | Yes (module sharing) |
| Cooling Requirement | Front-to-back airflow |
| MTBF / Reliability | Manufacturer specified (see datasheet) |
