Detailed Specifications

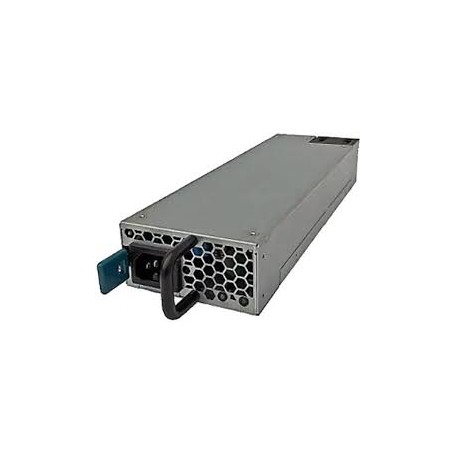

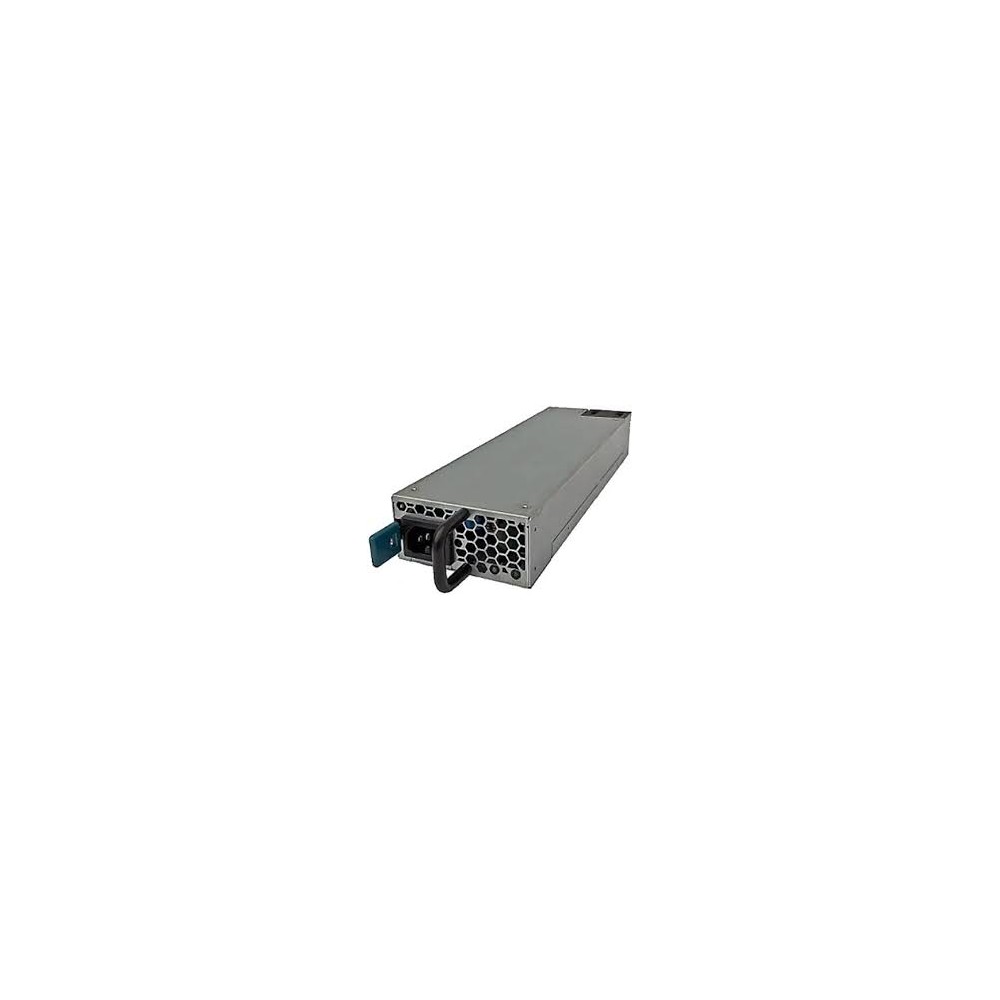

EXTREME NETWORKS XN-ACPWR-2000W - Power Supply Module
Overview
The EXTREME NETWORKS XN-ACPWR-2000W is an enterprise-grade, high-capacity internal hot-swappable AC power supply module custom-engineered for heavy-utilization routing and switching hardware. This plug-in power node resolves structural power deficits encountered during dense PoE peripheral deployment by providing a massive, consolidated secondary energy pool. It establishes continuous operational readiness for enterprise core closets, high-density IP surveillance grids, and smart building management frameworks requiring strict uptime guarantees.
The electrical architecture operates natively via an ultra-dense 2000-watt output profile configured specifically to supply a steady DC 54V stream to downstream high-draw Ethernet hardware.It incorporates an integrated cold-start functionality paired with smart front-to-back automated fan cooling, which exhausts thermal loading away from sensitive interior switch mechanics toward the rear hot aisle.The module features an optimized IEC 60320 C16 high-temperature utility input interface designed to withstand prolonged structural heat levels common to high-amperage data center deployment lines.
Tailored for rapid toolless execution inside running edge networks, the module functions as a zero-downtime, hot-pluggable expansion component that slips natively into the secondary power bays of ExtremeSwitching X465 and 5420 series switches. Implementing this power supply allows a single chassis to maximize its active IEEE 802.3bt multi-gigabit PoE capabilities across all available ports without overwhelming the primary core transformer lines. Avoid implementing this 2000W hardware module in low-profile 4120 series cloud-managed switches or localized network extender nodes where high-capacity 54V modular power configurations are unsupported.
Key Features
2000 Watts of dedicated AC power ensures uninterrupted switch uptime.
Hot-swappable plug-in engineering enables rapid zero-downtime replacement.
Front-to-back forced airflow profile preserves system thermal balance.
Integrated cold-start circuitry blocks unexpected line surge corruption.
Seamless structural compatibility maximizes full PoE capacity on edge bays.
Specifications
| Spec Parameter | Technical Data |
| Brand | EXTREME NETWORKS |
| Part Number | XN-ACPWR-2000W |
| Product Type | Power Supply Module |
| Module Form Factor | Hot-Pluggable Plug-In Internal Power Module |
| Maximum Power Output | 2000 Watts Maximum Allocation |
| Input Voltage Range | AC 100V to 240V (Autosensing Utility Range) |
| Output Voltage Rating | DC 54 Volts Operational Current Line |
| Input Connector Geometry | 1 x Power IEC 60320 C16 High-Temp Inlet Interface |
| Main Airflow Mechanics | Dedicated Front-to-Back Forced Air Cooling Profile |
| Circuit Safety Features | Cold-Start Support, Over-Voltage, Over-Current Protection |
| Host Hardware Targets | ExtremeSwitching X465 and 5420 Series Switching Families |
| Operational Humidity | 0% to 93% Relative Humidity (Non-Condensing) |
| Thermal Operation Limit | Commercial 32°F to 122°F (0°C to 50°C) |
