Detailed Specifications

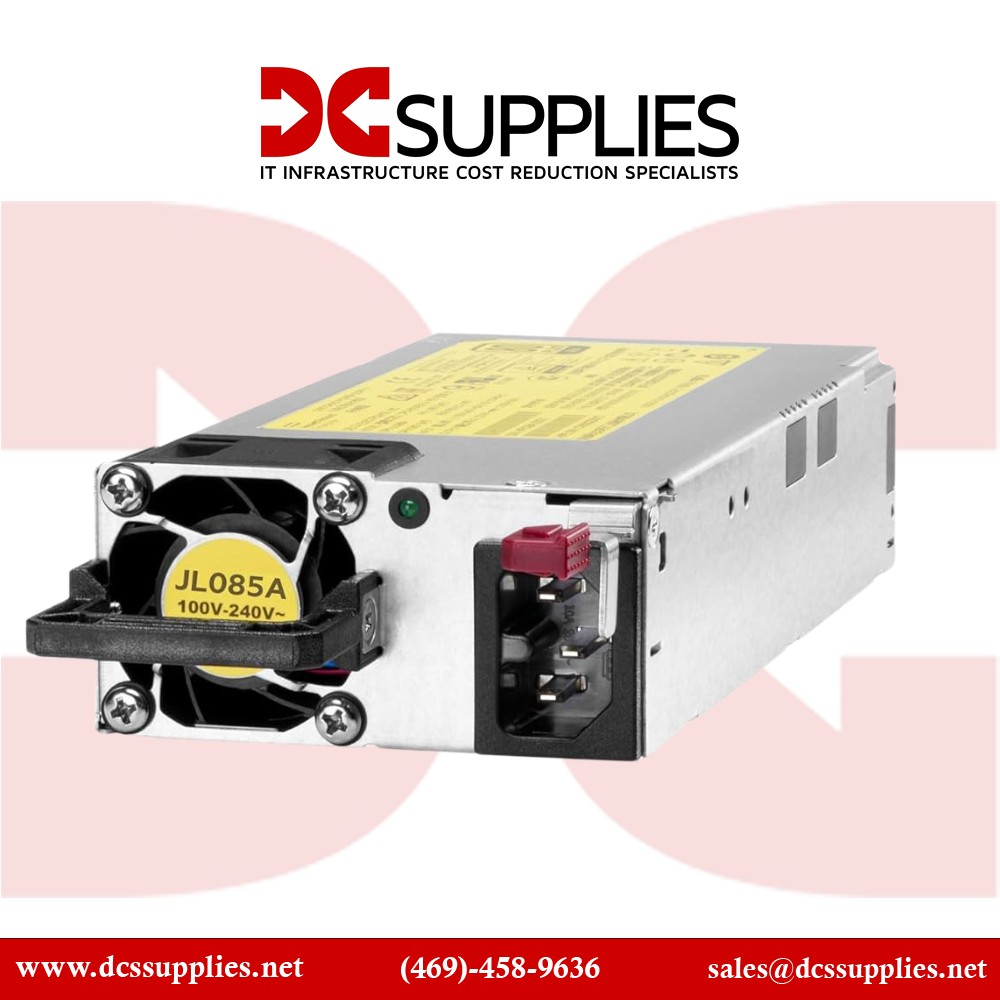

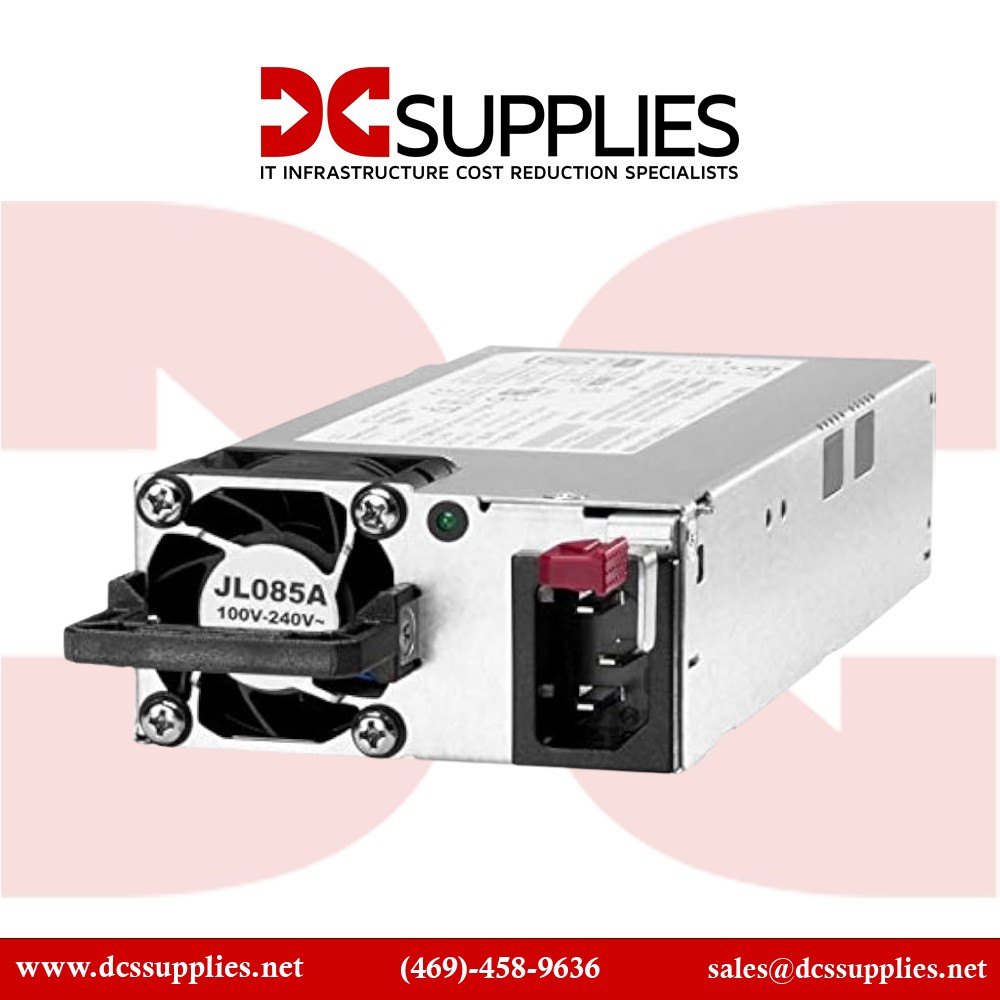

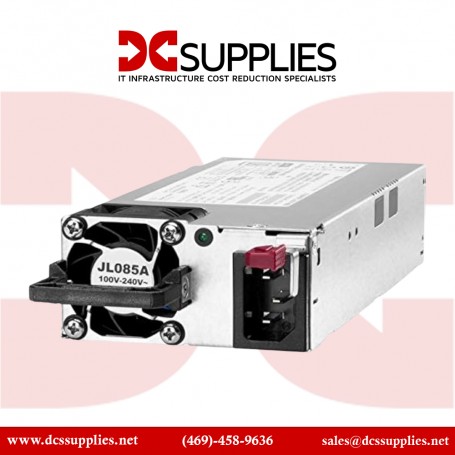

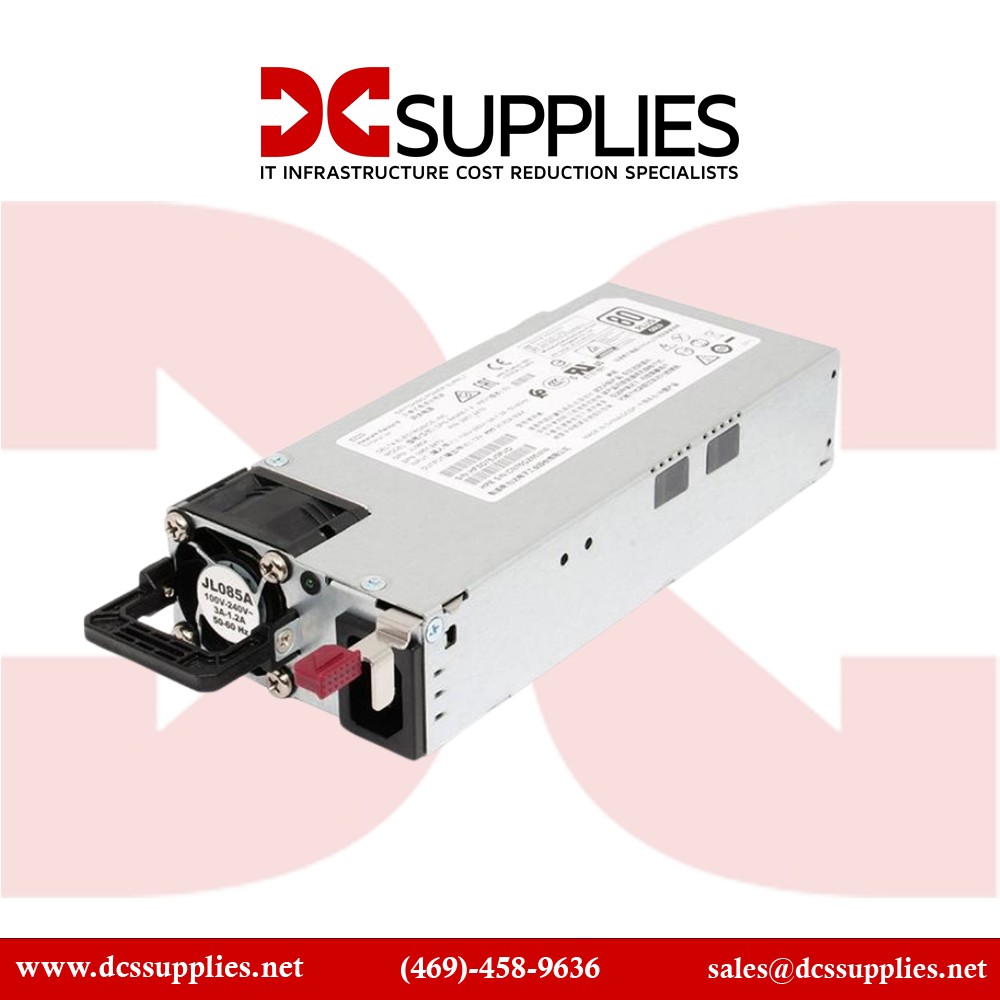

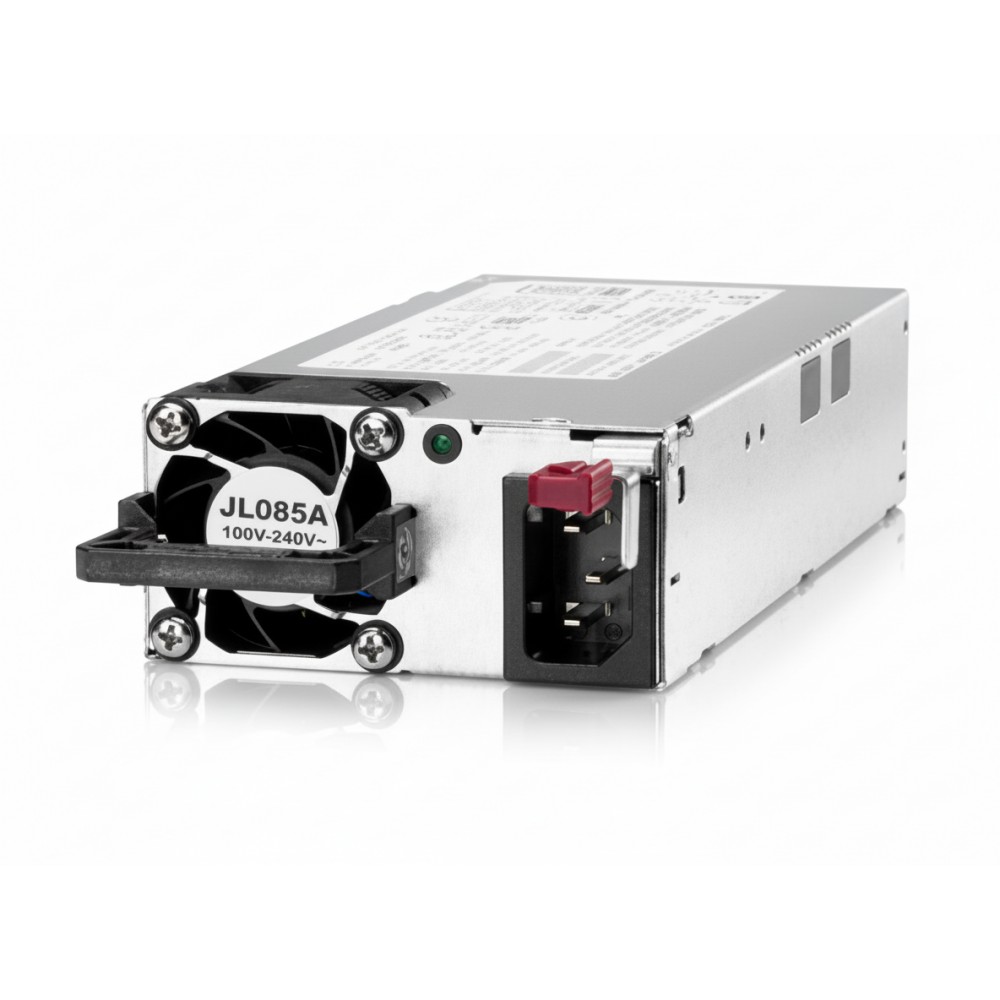

HPE JL085A X371 12 V DC 250 W Redundant Power Supply
Overview
The HPE JL085A is a modular hot-plug power supply unit designed for use in enterprise networking equipment such as the X371 series switches. It addresses the need for reliable, redundant power delivery in mission-critical network deployments. The unit accepts a wide input voltage range of 100-240 VAC and provides a stable 12 V DC output rated at 250 W, making it suitable for high-availability racks in data-centre, campus or branch-office environments. Its compact form factor supports installation into dedicated power bays within compatible devices and enables zero-downtime maintenance via hot-swap capability.
Key Features
250 W DC output at 12 V for consistent power delivery.
Universal AC input range of 100-240 V, supporting global installations.
Modular hot-plug design enables redundant power configuration.
Compact dimensions (1.6″ × 3.3″ × 8.9″) for efficient rack usage.
Compatible with HPE Aruba X371 series switches and similar platforms.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JL085A |
| Product Type | X371 12 V DC 250 W Redundant Power Supply |
| Output Power | 250 W |
| Output Voltage | 12 V DC |
| Input Voltage | 100-240 V AC |
| Modular | Yes (hot-plug) |
| Form Factor (H × W × D) | 1.6 in × 3.3 in × 8.9 in |
| Weight (lbs) | Approx. 1.52 lbs |
| Compatible Equipment | HPE Aruba X371, compatible networking switches |
| Redundancy Support | Supports redundant power supply configurations |
| Hot-Swappable | Yes |
| Environmental Compliance | REACH |
| Operating Temperature | Standard ambient conditions |
| Certification | CE, FCC |
| Warranty Period | Manufacturer's standard warranty |
