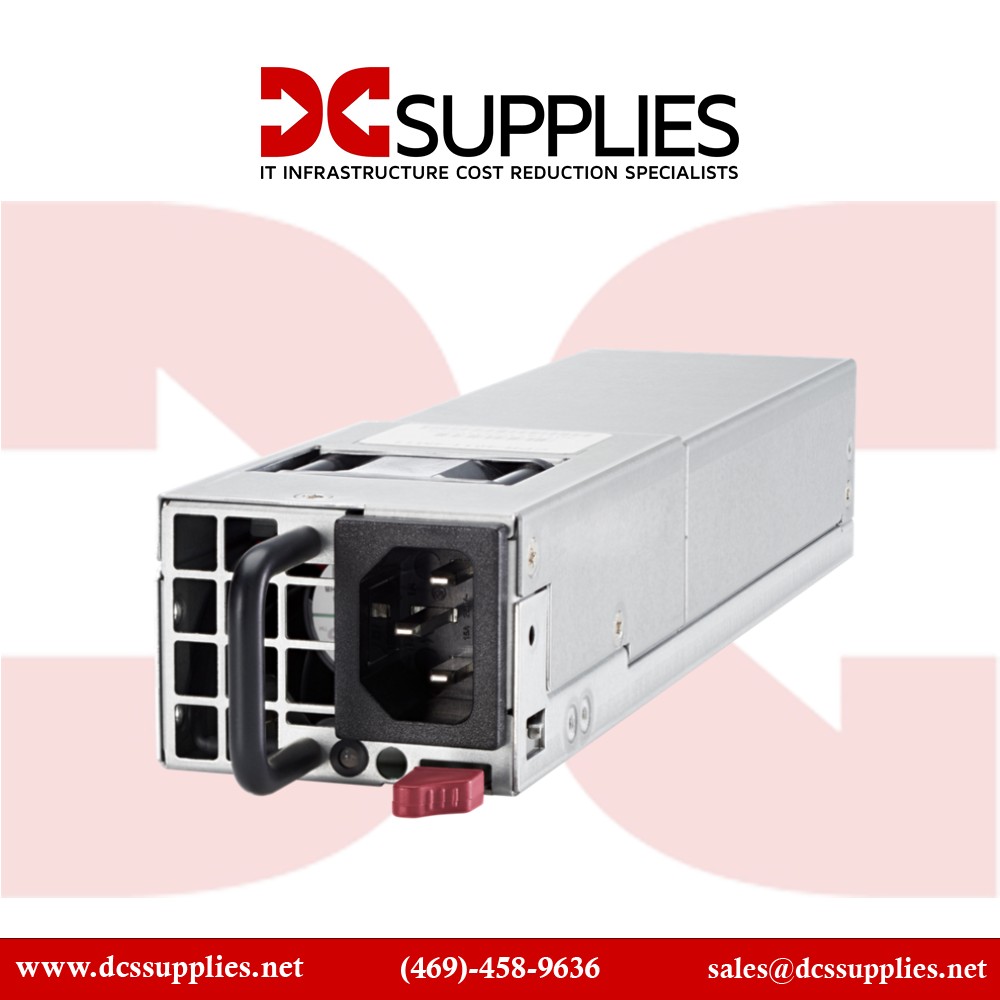

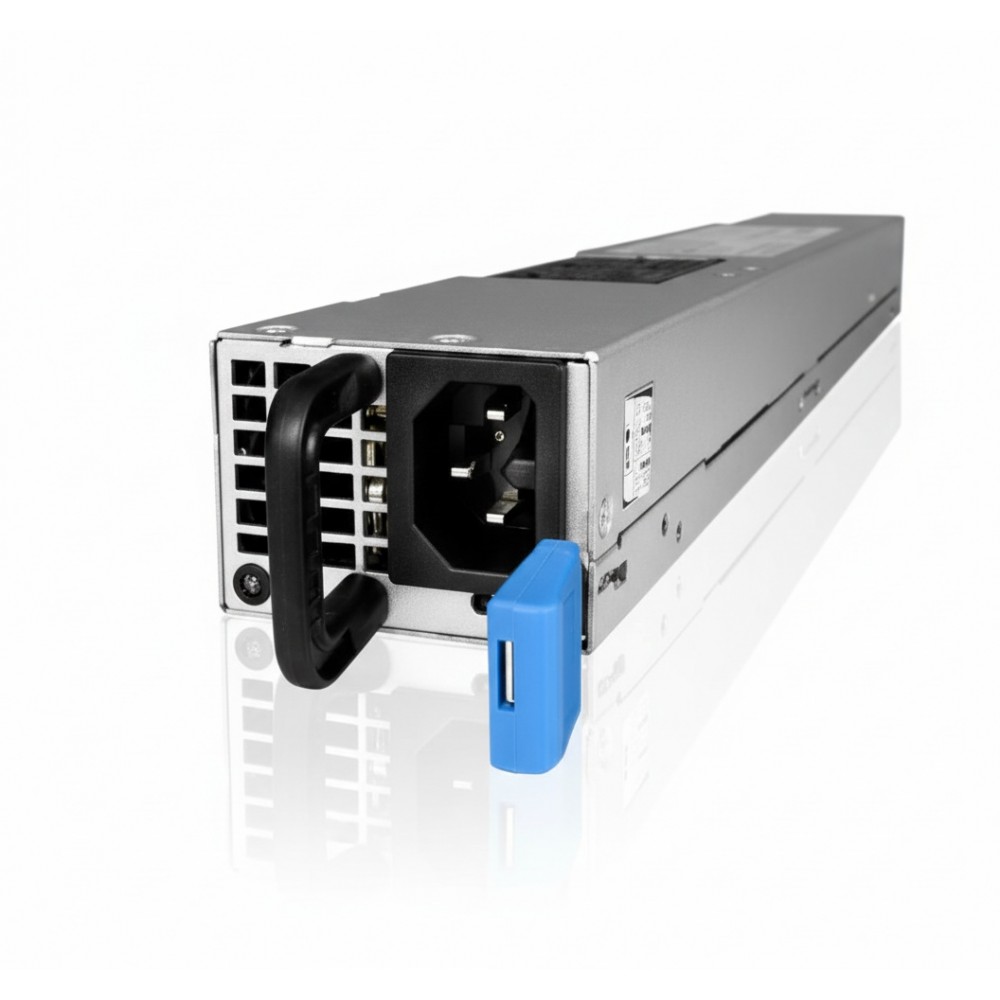

HPE Aruba S0F92A X3A13 1600W 12VDC Back-to-Front AC Power Supply View larger

HPE S0F92A Aruba Power Supply Unit X3A13 12 V DC 1600 W Back-to-Front C15 AC

New

12 VDC 1600 W back-to-front AC power supply
×




  • New

Detailed Specifications

HPE S0F92A Aruba X3A13 1600W Back‑to‑Front AC PSU

Overview

The HPE S0F92A is a 1600 W power supply unit designed for Aruba / HPE CX-series switches. It outputs 12 V DC, supports hot-swapping, and uses back-to-front airflow to support efficient cooling in data-center deployments. The input connector is IEC C15 AC, and the module is compatible with high-availability power architectures in Aruba CX‑9300S switches.

Key Features

  • Delivers 1600 W at 12 V DC

  • Back-to-front airflow for efficient chassis cooling

  • Hot-pluggable to maintain uptime during replacement

  • Uses an IEC C15 AC input connector

  • Designed for Aruba / HPE CX-9300S switch series

Technical Specifications

SpecificationDetails
Brand HPE / Aruba
Part Number S0F92A
Product Type Power Supply Unit (PSU)
Output Power 1600 W
Output Voltage 12 V DC
AC Input Voltage 100‑240 V, 50/60 Hz
Input Connector IEC 60320 C15
Airflow Design Back-to-Front
Hot-Swap Capable Yes
Compatibility Aruba CX 9300 / 9300S Switch Series
Dimensions 1.5″ (H) × 2.2″ (W) × 15.5″ (D)
Weight ~1.2 kg (~2.65 lb)
