| Primary Information | |
|---|---|
| Power / Device Type | Power Supply |
| Power Device / Form Factor | 1U |
| Power / Voltage Required | 100-240Vac |
| Power / Provided (W) | 600 Watt |
| Output Connector(s) | 24Pin ATX Cable Output |
| Efficiency | 94% |
| 80 PLUS Certification | 80 PLUS Platinum |
| MTBF | >200000 hours |
| For Use With | CSE-111TQ-600CB, CSE-111TQ-600UB, CSE-113AC2-605WB, CSE-113MFAC2-605CB, CSE-113MTQ-600CB, CSE-113TQ-600CB, CSE-113TQ-600UB, CSE-113TQ-600WB, CSE-213LT-600LPB, CSE-815TQ-600CB, CSE-815TQ-600UB, CSE-815TQ-600WB, CSE-815TQC-605CB, CSE-815TQC-605WB, CSE-825TQ-600LPB, CSE-825TQ-600WB, CSE-825TQC-600LPB, CSE-825TQC-600WB |
| Model | PWS-605P-1H |
| Width | 76 Mm |
| Depth | 279.4 Mm |
| Height | 40 Mm |
| Service & Support Type | 1 year warranty |
| Features | PMBus 1.2 Support for Remote Management; Multiple output power supply; 80 Plus Platinum; Supermicro Certified |
| Min Operating Temperature | 0 Celsius |
| Max Operating Temperature | 50 Celsius |
| Humidity Range Operating | 20% to 90% (non-condensing) |
| Green Product Information | |
|---|---|
| Proposition 65 Warning | Y |
| Special Feature | |
|---|---|
| COO | Inquire |
| TAA compliance | Inquire |
| UNSPSC Code | |
|---|---|
| UNSPSC Code | 39121004 |
All packages are shipped same day if the order is placed before 3PM CST
We use UPS/FedEx to ship the packages with different service levels offered by UPS/FedEx
Overnight Shipping take 1 business day
Expedited Shipping take about 2-3 business days
Ground shipping take about 3-5 business days
You can select the desired service level at Checkout and we will make sure the package is shipped as per the selected service level.
We Accept
i) PayPal
ii) All Credit & Debit Cards
iii) Purchase Orders
iv) Check
v) Bank Transfer/ACH/Wire Transfer
To process the order through Paypal/CC, you can simply checkout and process the payment.
If you want to issue us Purchase Order/Check/Bank Transfer, Please contact us at the following details
Call: 469.458.9636
Email: sales@dcsupplies.net
If you have any queries, please contact us at the following details and we will be happy to help
Call
469.458.9636
469.458.9638
Email
sales@dcsupplies.net
No customer reviews for the moment.

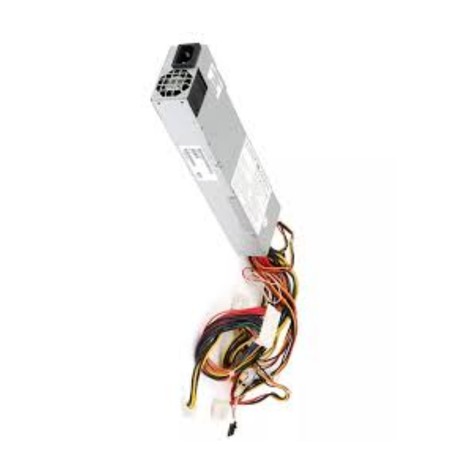

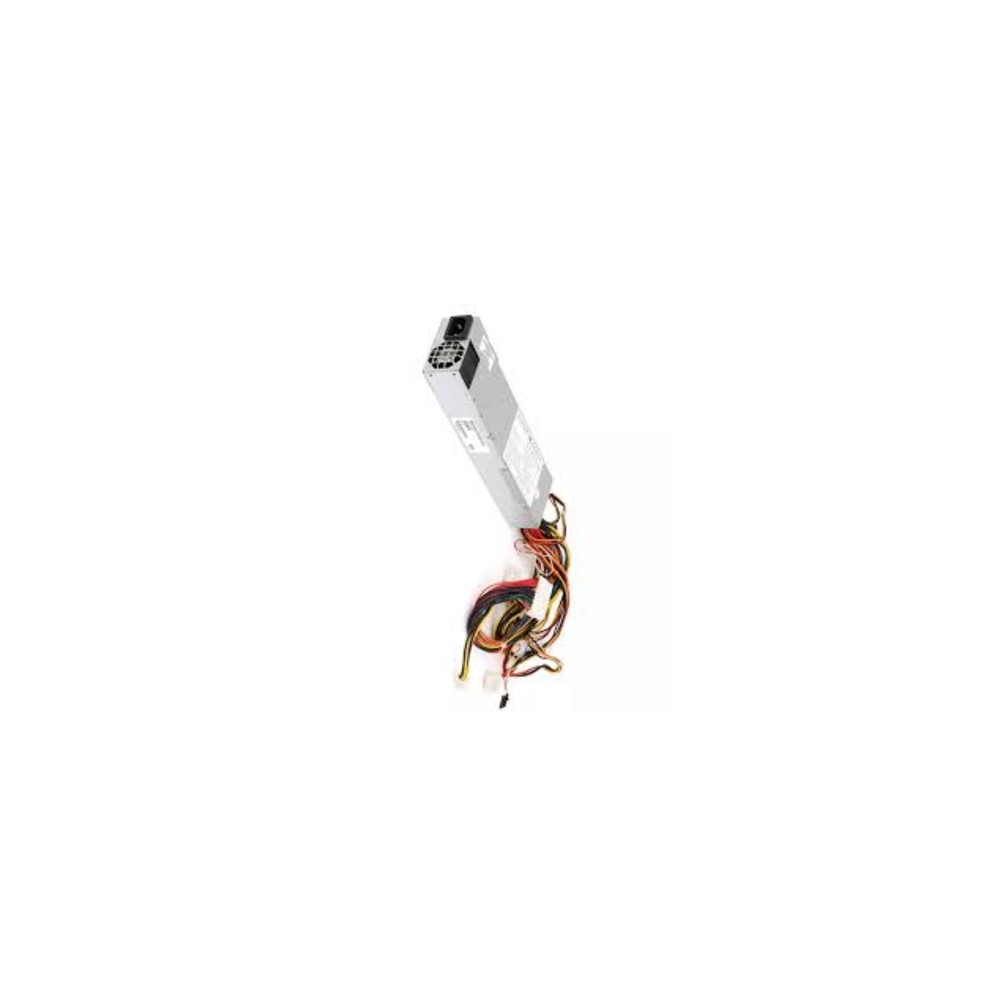

SUPERMICRO COMPUTER PWS-605P-1H Power Supply Units
Supermicro 1U 600W Platinum Multiple Output Power Supply (PWS-605P-1H) - Output Type 24Pin ATX Cable Output - 80 Plus Platinum 94% - MTBF 200000 hours - 1 year warranty
