Overview

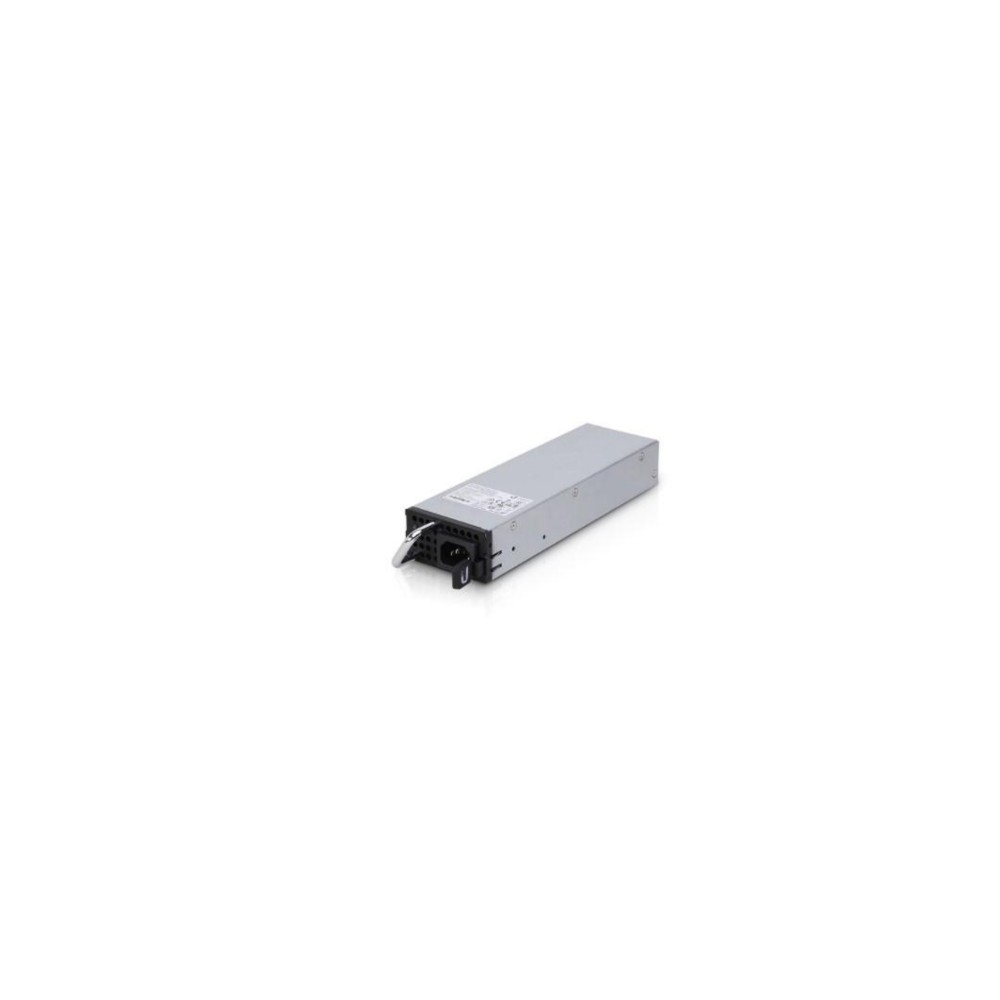

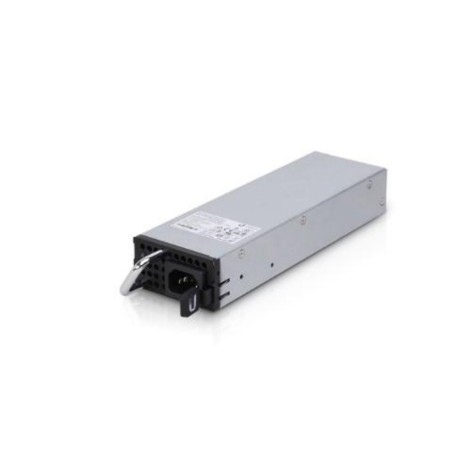

The Ubiquiti EP-54V-150W-AC is a 54V 150W AC/DC power supply module designed specifically for the EdgePower system. It accepts 110–240V AC input and provides a 54V DC output through the EdgePower's DC terminal block.
EdgePower Integration
The module installs into an EdgePower PSU bay and is designed for use with the EdgePower 54V 150W system. A second compatible 150W PSU module can be installed in the EdgePower to provide up to 300W total output or configured as a redundant power source.
Power Configuration
EP-54V-150W-AC is an AC/DC module intended for mains-powered EdgePower installations. It accepts 110–240V AC and supplies 54V DC at up to 150W. The module includes a system on/off LED for power-status indication.
Protection and Environment
The module provides ESD/EMP protection rated at ±8kV for air discharge and ±6kV for contact discharge. It is specified for operation from 0 to 40°C with 10–90% noncondensing humidity.
Key Features
- 54V DC, 150W maximum power output
- 110–240V AC input
- AC/DC PSU module designed for EdgePower
- Supports EdgePower configurations up to 300W with two 150W modules
- System on/off LED and ESD/EMP protection
Applications
The EP-54V-150W-AC is intended as an AC-powered PSU module for Ubiquiti EdgePower installations. It can be used as the primary power module, as an additional module for increased output capacity, or as a redundant module when supported by the EdgePower configuration.
DC Supplies Product Note
This exact model is the AC/DC version of the EdgePower 54V 150W PSU module. It should not be confused with the EP-54V-150W-DC, which is the separate DC/DC version designed for a 22–60V DC input range.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | EP-54V-150W-AC |
|---|
| Product Type | AC/DC Power Supply Module |
|---|
| Product Family | EdgePower |
|---|
| Maximum Output Power | 150W |
|---|
| Output Voltage | 54V DC |
|---|
| Input Type | AC |
|---|
| Input Voltage Range | 110–240V AC |
|---|
| Output Connection | DC terminal block |
|---|
| Power Method | AC/DC |
|---|
| System LED | On/Off |
|---|
| ESD Protection | Air ±8kV; contact ±6kV |
|---|
| Operating Temperature | 0 to 40°C (32 to 104°F) |
|---|
| Operating Humidity | 10 to 90% noncondensing |
|---|
| Certifications | CE, FCC, IC |
|---|
| NDAA Compliant | Yes |
|---|
| Compatible System | EdgePower 54V 150W |
|---|
FAQs
What is the EP-54V-150W-AC used for?
It is an AC/DC PSU module designed to provide power for the Ubiquiti EdgePower 54V 150W system.
What output does the module provide?
It provides 54V DC with a maximum output power of 150W.
What AC input voltage does it support?
The module supports a 110–240V AC input range.
Can two PSU modules be installed in an EdgePower system?
Yes. The EdgePower system supports two 150W PSU modules, allowing up to 300W total output or a redundant PSU configuration.
Is the EP-54V-150W-AC the same as the EP-54V-150W-DC?
No. The EP-54V-150W-AC is an AC/DC module for 110–240V AC input, while the EP-54V-150W-DC is a separate DC/DC module designed for 22–60V DC input.
