Overview

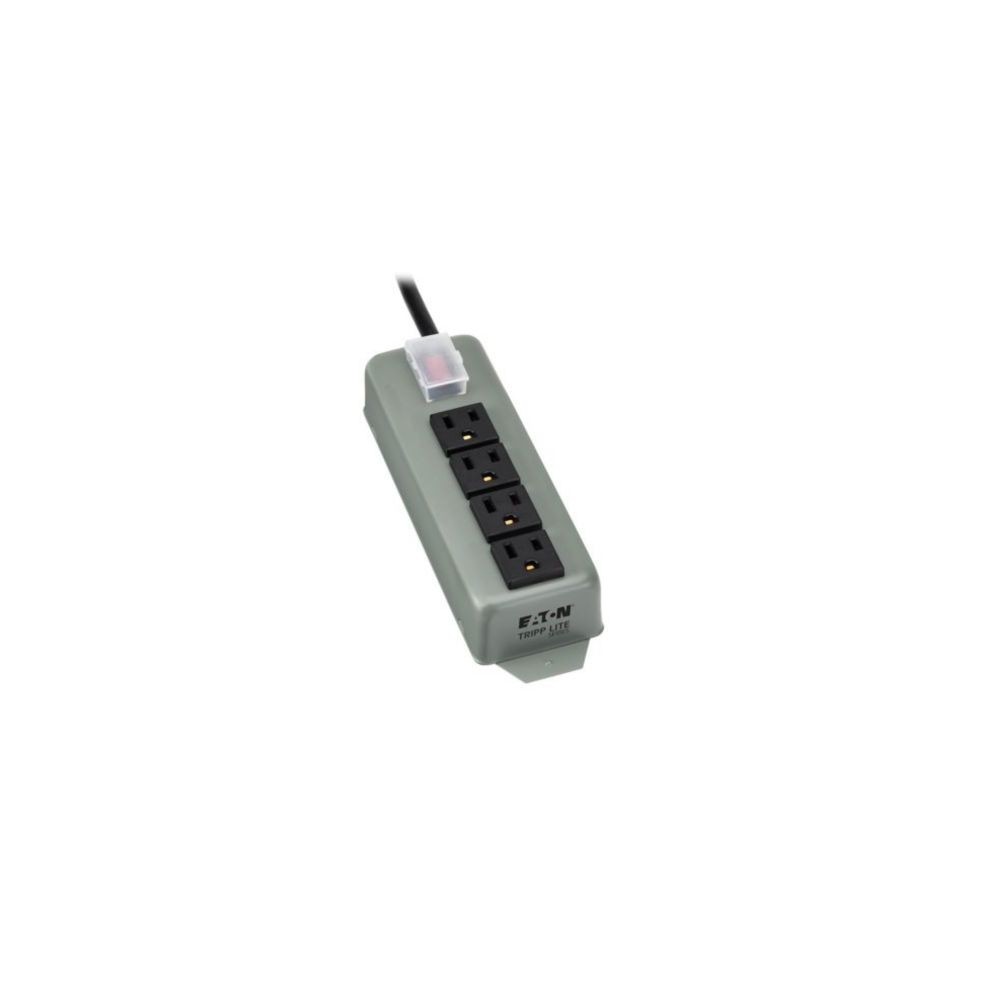

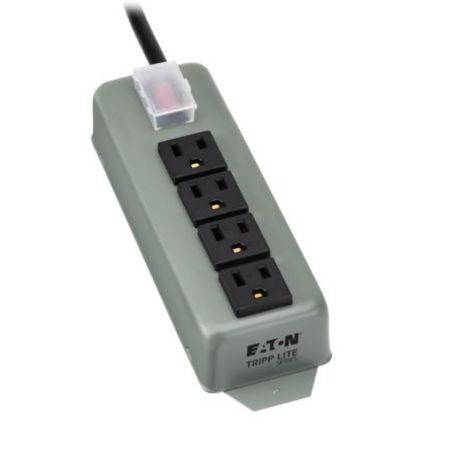

The Tripp Lite UL603CB-6 is a WABER industrial power strip designed to distribute AC power to multiple devices from a single wall connection. It provides four NEMA 5-15R receptacles, a 6-foot power cord, a lighted master switch with a transparent locking cover, and a 15A resettable circuit breaker.
Power Distribution
The four NEMA 5-15R outlets provide 120V AC power for compatible equipment. The receptacles are spaced 1.25 inches center-to-center, while the metal housing provides accommodation for common power adapters and transformers.
Switch and Overload Protection
The UL603CB-6 uses a lighted two-position power switch that controls all four outlets. A transparent snap-over cover helps prevent accidental switch operation. The integrated 15A resettable circuit breaker interrupts the AC input when an overload condition occurs.
Mounting and Construction
The all-metal power strip is designed for workbench, wall-mount, or floor-mount applications. Integrated keyhole mounting tabs and mounting flanges provide options for securing the strip to a suitable surface.
Electrical Pass-Through
The UL603CB-6 provides unfiltered electrical pass-through rather than surge suppression or EMI/RFI filtering. This configuration is specified for distributing alternate-waveform UPS or generator power to connected equipment.
Key Features
- Four NEMA 5-15R output receptacles with 1.25-inch spacing
- 15A resettable circuit breaker for overload protection
- 6-foot AC power cord with NEMA 5-15P plug
- Lighted master switch with transparent locking safety cover
- All-metal housing with keyhole mounting tabs and mounting flanges
Applications
- Industrial and commercial workbenches
- Wall-mounted equipment installations
- Floor-mounted power distribution
- Workstations requiring multiple 120V AC outlets
- UPS or generator power distribution requiring unfiltered electrical pass-through
DC Supplies Product Note
The UL603CB-6 is a power-distribution strip rather than a surge protector. Its unfiltered pass-through design is useful where the connected equipment should receive the supplied UPS or generator waveform without additional filtering.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | UL603CB-6 |
| Product Type | Industrial Power Strip |
| Series | WABER |
| Total Outlets | 4 |
| Output Receptacles | 4 × NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120V AC |
| Maximum Current | 15A |
| Circuit Breaker | 15A resettable |
| Frequency Compatibility | 50/60 Hz |
| Power Cord Length | 6 ft (1.83 m) |
| Outlet Spacing | 1.25 in. center-to-center |
| Outlet Orientation | Single row of 4 |
| Switch | Lighted 2-position master switch |
| Switch Cover | Transparent snap-over locking cover |
| Housing Material | Metal |
| Housing Color | Blue/gray |
| Power Cord Jacket | SJT |
| Input Cord Gauge | 14 AWG |
| Mounting | Keyhole mounting tabs and flanges |
| Power Conditioning | Unfiltered electrical pass-through |
| Product Length | 7.38 in. |
| Product Weight | 1.6 lb |
| Certifications | UL Listed, cUL Listed |
| Compliance | RoHS |
FAQs
How many outlets does the UL603CB-6 have?
It has four NEMA 5-15R output receptacles.
What is the current rating?
The UL603CB-6 is rated for 15A at 120V AC and includes a 15A resettable circuit breaker.
How long is the power cord?
The unit has a 6-foot (1.83-meter) AC power cord with a NEMA 5-15P input plug.
Does the UL603CB-6 provide surge protection?
No. It provides unfiltered electrical pass-through and is designed for power distribution rather than surge suppression or EMI/RFI filtering.
Can the power strip be mounted?
Yes. Keyhole mounting tabs and mounting flanges support suitable workbench, wall-mount, and floor-mount installations.
Does the switch have protection against accidental operation?
Yes. The lighted power switch has a transparent snap-over locking cover designed to help prevent accidental shutoff.
What is included?
The package includes the UL603CB-6 power strip, warranty information, and an instruction manual.
