Overview

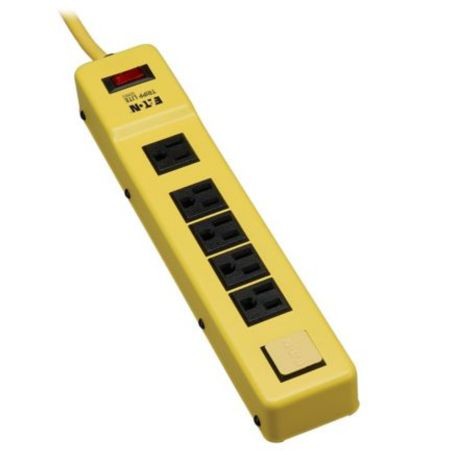

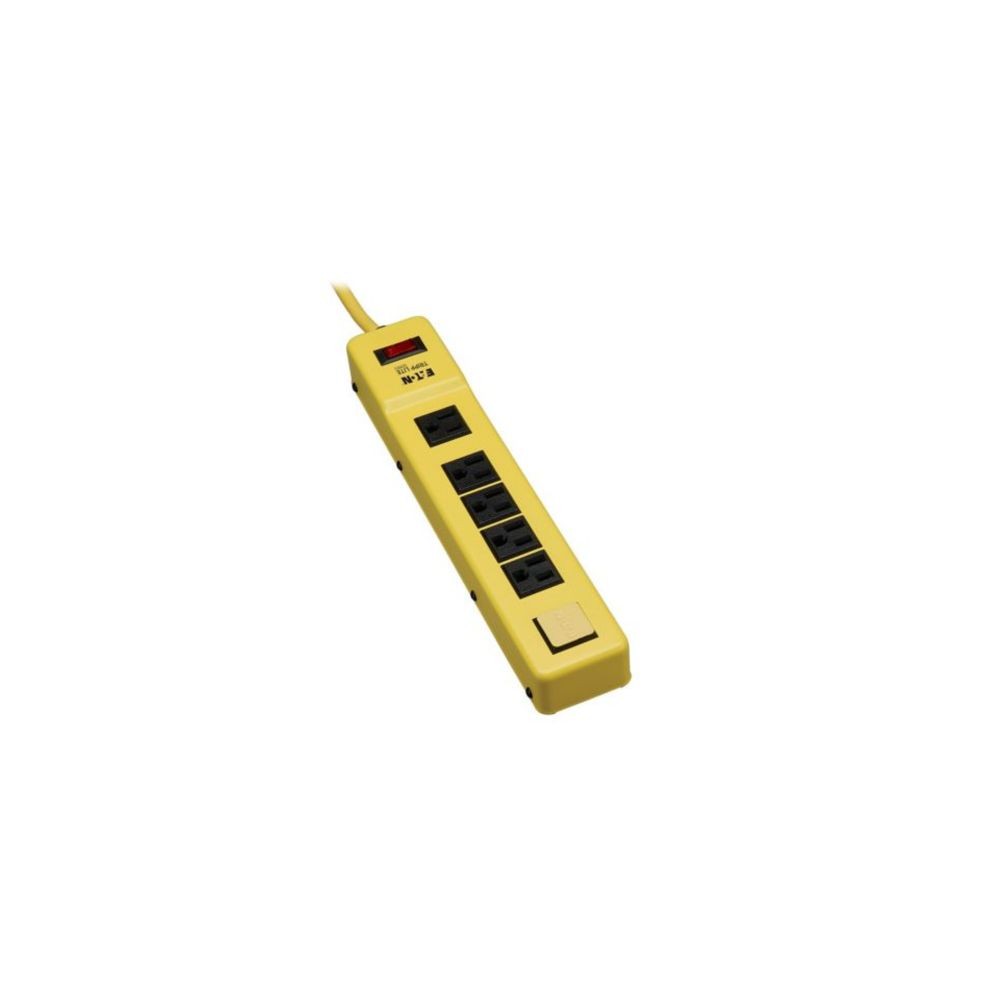

The Eaton Tripp Lite TLM626NS is a Power It! Safety Series power strip for distributing 120V AC power to multiple connected devices in industrial, factory, workshop, laboratory and commercial environments. It provides six NEMA 5-15R outlets, a grounded 6-foot cord and a rugged metal housing.
AC Power Distribution
The six outlets include transformer-spaced receptacles that help accommodate larger power adapters without blocking adjacent outlets. The strip accepts a standard NEMA 5-15P input and supports 120V AC at 60Hz, with a maximum electrical capacity of 15A.
Safety and Overload Protection
A lighted on/off switch incorporates a 15A circuit breaker for overload protection and convenient control of connected equipment. Four safety covers are provided for unused outlets to help shield receptacles from dust, debris and accidental contact.
Construction and Mounting
The TLM626NS uses a rugged metal housing with right-angle outlets and integrated keyhole mounting slots. The 6-foot grounded power cord includes an integrated cord clip for cable management. Its yellow housing follows the manufacturer's safety-color design for visibility in work environments.
Key Features
- Six NEMA 5-15R AC outlets
- 6-foot grounded power cord with NEMA 5-15P plug
- 15A circuit breaker integrated with the illuminated power switch
- Four outlet safety covers
- Metal housing with transformer accommodation and keyhole mounting slots
Applications
The TLM626NS is intended for AC power distribution in industrial and factory settings as well as workshops, garages, laboratories and other work areas. Eaton specifically identifies applications including power tools, pumps and air compressors.
DC Supplies Product Note
The TLM626NS is a safety power strip rather than a surge protector. For installations requiring surge suppression, a model specifically equipped with surge-protection circuitry should be selected instead.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | TLM626NS |
| Product Type | Safety Power Strip |
| Series | Power It! |
| Total Outlets | 6 |
| AC Output Receptacles | 6 × NEMA 5-15R |
| Input Plug | NEMA 5-15P, straight |
| Input Voltage | 120 VAC |
| Maximum Current | 15A |
| Frequency | 60 Hz |
| Cord Length | 6 ft (1.83 m) |
| Circuit Breaker | 15A |
| Transformer Accommodation | Yes, 2 transformer outlets |
| Outlet Safety Covers | 4 |
| Outlet Orientation | Right-angle, single row |
| Housing Material | Metal |
| Housing Color | Yellow |
| Mounting | Keyhole mounting slots |
| Input Cord Gauge | 14 AWG |
| Power Cord Jacket | SJT |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Compliance | UL Listed, cUL Listed, RoHS |
| Warranty | Limited lifetime |
FAQs
How many outlets does the TLM626NS provide?
The TLM626NS provides six NEMA 5-15R AC outlets, including transformer-spaced outlets.
How long is the power cord?
The power strip has a 6-foot (1.83-meter) grounded power cord with an integrated cord clip.
Does the TLM626NS provide surge protection?
No. The TLM626NS provides AC power distribution and overload protection through its 15A circuit breaker; it is not specified as a surge protector.
How many safety covers are included?
Four outlet safety covers are included for unused receptacles.
Can the TLM626NS be mounted?
Yes. Integrated keyhole slots on the bottom panel support mounting on suitable walls, desks or workbenches.
