Overview

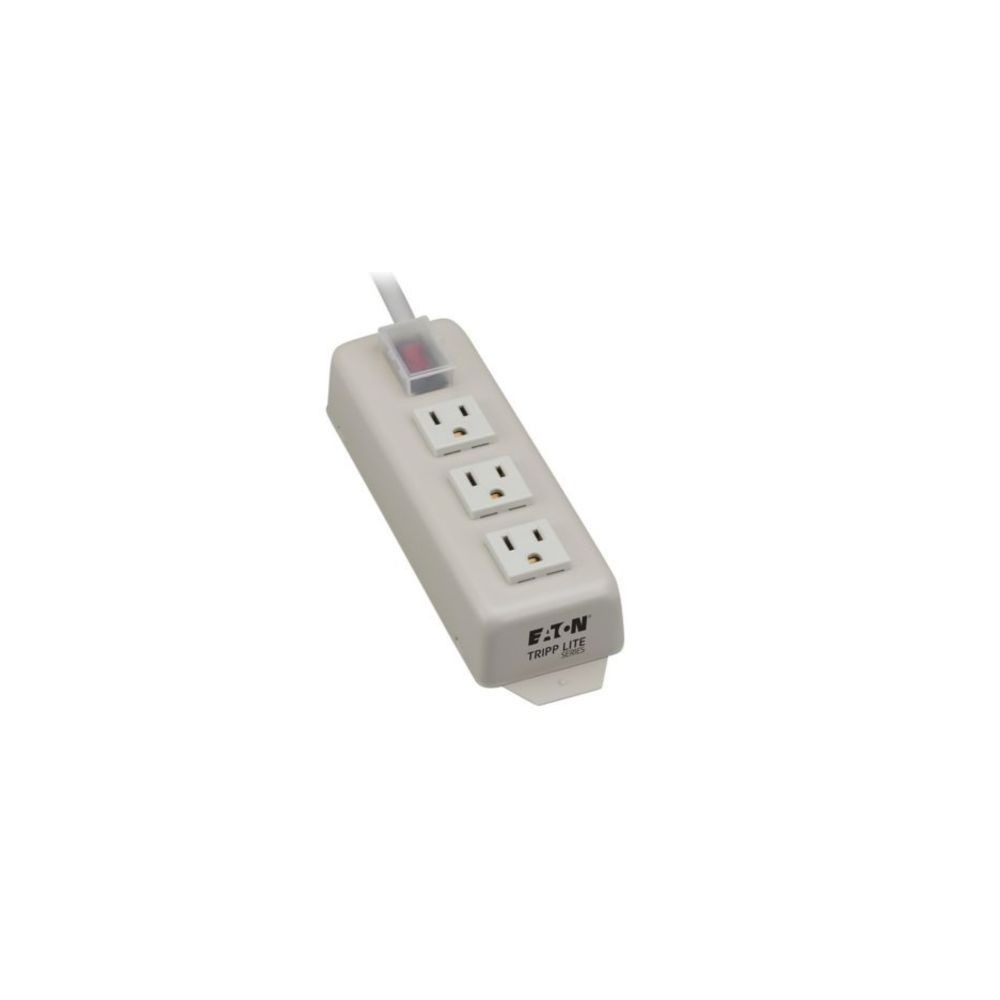

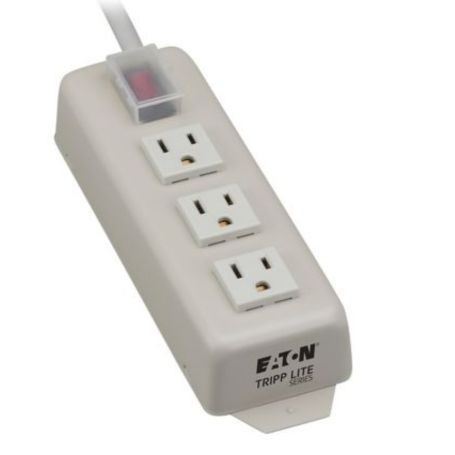

The Eaton Tripp Lite TLM306NC Power It! is a three-outlet AC power strip designed for distributing 120V power from a single wall receptacle. It combines three NEMA 5-15R outlets, a six-foot AC power cord, a 15A circuit breaker, and an illuminated power switch with a transparent protective cover. :contentReference[oaicite:1]{index=1}
Power Distribution
The TLM306NC accepts 120V AC through a NEMA 5-15P input plug and provides three NEMA 5-15R output receptacles. It is rated for 15A service and supports 50/60Hz operation. The integrated 15A circuit breaker provides overload protection for the connected load. :contentReference[oaicite:2]{index=2}
Mounting and Controls
The power strip uses a rugged metal case and includes keyhole mounting slots for securing it to a suitable surface. A lighted two-position switch controls power to all three outlets, while the transparent switch cover helps prevent accidental shutoff. :contentReference[oaicite:3]{index=3}
Key Features
- Three NEMA 5-15R AC outlets
- Six-foot (1.83 m) AC power cord
- Integrated 15A circuit breaker
- Illuminated on/off switch with transparent protective cover
- Rugged metal housing with keyhole mounting slots
Applications
The TLM306NC is intended for AC power distribution where several devices need to share a single 120V wall connection. Eaton identifies applications including appliances, power tools, lighting, computer equipment, home-office equipment, classroom equipment, and other electrical devices. :contentReference[oaicite:4]{index=4}
DC Supplies Product Note
The TLM306NC is a power distribution strip with circuit-breaker overload protection. It should not be treated as a surge-protection product because Eaton's specifications identify the model as a power strip and do not specify a surge suppression rating. :contentReference[oaicite:5]{index=5}
Specifications
| Brand | Eaton Tripp Lite |
|---|
| Part Number / MPN | TLM306NC |
|---|
| Product Type | Power Strip |
|---|
| Series | Power It! |
|---|
| Input Voltage | 120V AC |
|---|
| Input Plug | NEMA 5-15P |
|---|
| Input Cord Gauge | 14 AWG SJT |
|---|
| Power Cord Length | 6 ft (1.83 m) |
|---|
| Frequency | 50/60 Hz |
|---|
| Total Outlets | 3 |
|---|
| Output Receptacles | NEMA 5-15R |
|---|
| Maximum Current | 15A |
|---|
| Overload Protection | 15A circuit breaker |
|---|
| Outlet Orientation | Single row of 3 |
|---|
| Outlet Spacing | 1.59 in. |
|---|
| Housing Material | Metal |
|---|
| Color | Light gray |
|---|
| Mounting | Keyhole mounting slots / flanges |
|---|
| Operating Temperature | 32° to 104°F (0° to 40°C) |
|---|
| Certifications | UL Listed; cUL Listed |
|---|
| Compliance | RoHS; CE Marked; UKCA |
|---|
| Dimensions | 8.75 x 2.5 x 2 in. (22.2 x 6.4 x 5.1 cm) |
|---|
| UPC | 037332134363 |
|---|
| Warranty | Lifetime limited warranty |
|---|
Frequently Asked Questions
How many outlets does the TLM306NC have?
The TLM306NC has three NEMA 5-15R AC outlets.
What voltage does the TLM306NC support?
The power strip is specified for 120V AC operation and 15A service.
How long is the power cord?
The attached power cord is six feet (1.83 m) long.
Does the TLM306NC have overload protection?
Yes. Eaton specifies an integrated 15A circuit breaker for overload protection.
Can the power strip be mounted?
Yes. The TLM306NC includes keyhole mounting slots and flanges for mounting to a suitable surface.
What is included with the TLM306NC?
Eaton's package contents specify the TLM306NC power strip, warranty information, and an instruction manual. :contentReference[oaicite:6]{index=6}
