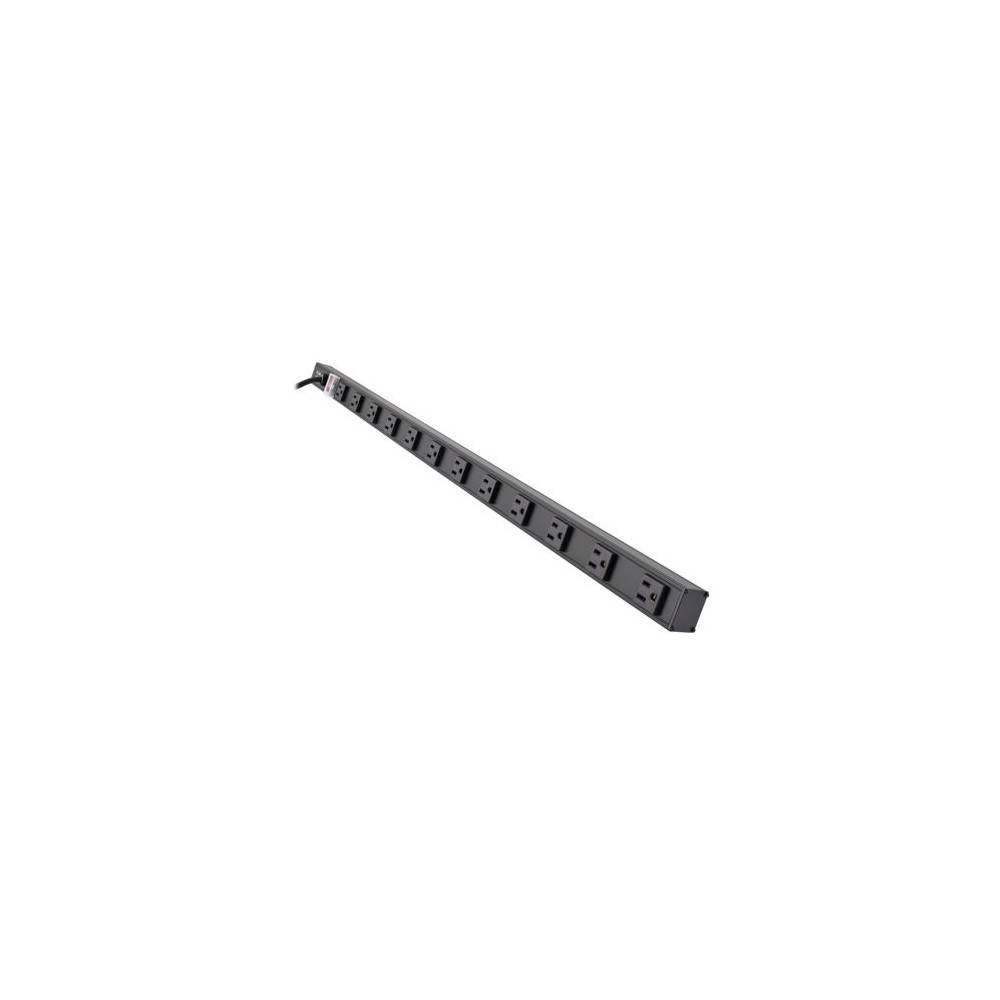

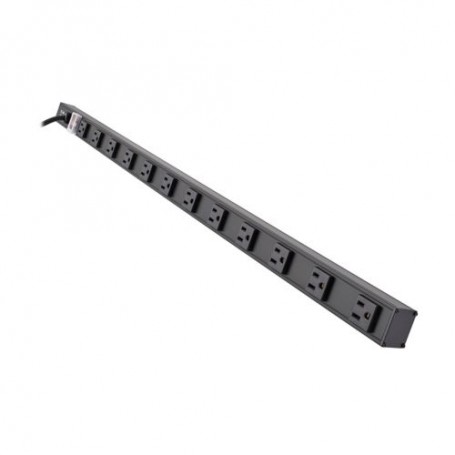

The Eaton Tripp Lite PS3612B is a 12-outlet vertical power strip designed to distribute 120V AC power to multiple connected devices. It provides twelve NEMA 5-15R receptacles, a 15A resettable circuit breaker, and a 15-ft. power cord with a NEMA 5-15P plug.
Power Distribution and Outlet Layout
The 36-inch housing provides twelve AC outlets with approximately 2.63 inches of center-to-center spacing. The spacing accommodates many standard power adapters and transformers while allowing multiple devices to connect along the strip.
Mounting and Installation
The PS3612B supports both vertical and horizontal mounting. Included mounting clips allow the power strip to be secured to a wall or other flat surface, making it suitable for work areas, equipment locations, retail displays, and other installations requiring distributed AC outlets.
Switch and Circuit Protection
A lighted two-position on/off switch controls power to all outlets. The switch has a transparent protective cover to help prevent accidental turn-off. A built-in 15A resettable circuit breaker interrupts AC input when an overload condition is detected.
Key Features
- 12 NEMA 5-15R AC outlets
- 120V, 15A electrical rating
- 15-ft. power cord with NEMA 5-15P plug
- 15A resettable circuit breaker
- 36-inch housing with vertical or horizontal mounting capability
Applications
- Office and workbench power distribution
- Point-of-sale and retail display installations
- Computer and electronic equipment power distribution
- Networking and telecom equipment areas
- Residential, commercial, and industrial work areas requiring multiple AC outlets
DC Supplies Product Note
The PS3612B is a standard power strip with a built-in circuit breaker; Eaton does not identify this exact MPN as a surge protector. This distinction is important when surge suppression is a specific installation requirement.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | PS3612B |
| Product Type | Power strip |
| Total Outlets | 12 |
| Output Receptacles | NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Voltage | 120 VAC |
| Recommended Electrical Service | 15A, 120V |
| Power Cord Length | 15 ft. (4.57 m) |
| Circuit Breaker | 15A resettable |
| Housing Length | 36 in. |
| Outlet Spacing | 2.63 in. center-to-center |
| Mounting | Vertical or horizontal |
| Mounting Hardware | Mounting clips |
| Switch | Lighted 2-position on/off switch |
| Switch Cover | Transparent locking cover |
| Housing Color | Black |
| Material | Aluminum |
| Power Cord Jacket | SJT |
| Cord Gauge | 14 AWG |
| Frequency Compatibility | 50/60 Hz |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 14° to 122°F (-10° to 50°C) |
| Dimensions | 36 x 1.75 x 1.25 in. |
| Weight | 3.3 lb |
| Compliance | RoHS |
| Certifications | UL Listed, cUL Listed |
| Warranty | Limited lifetime |
Frequently Asked Questions
How many outlets does the PS3612B have?
The PS3612B has 12 NEMA 5-15R AC outlets.
What voltage and current is the PS3612B rated for?
It is designed for 120 VAC service with a recommended electrical service rating of 15A.
How long is the power cord?
The included AC power cord is 15 ft. (4.57 m) long and terminates in a NEMA 5-15P plug.
Does the PS3612B provide surge protection?
No. The exact PS3612B specification identifies a built-in 15A circuit breaker for overload protection, but does not identify surge suppression.
Can the power strip be mounted horizontally?
Yes. The 36-inch housing supports both vertical and horizontal mounting using the included mounting clips.
Does the switch control all outlets?
Yes. The lighted two-position switch controls power to all 12 outlets.
